Brother HL-5340D

5-107
Confidential

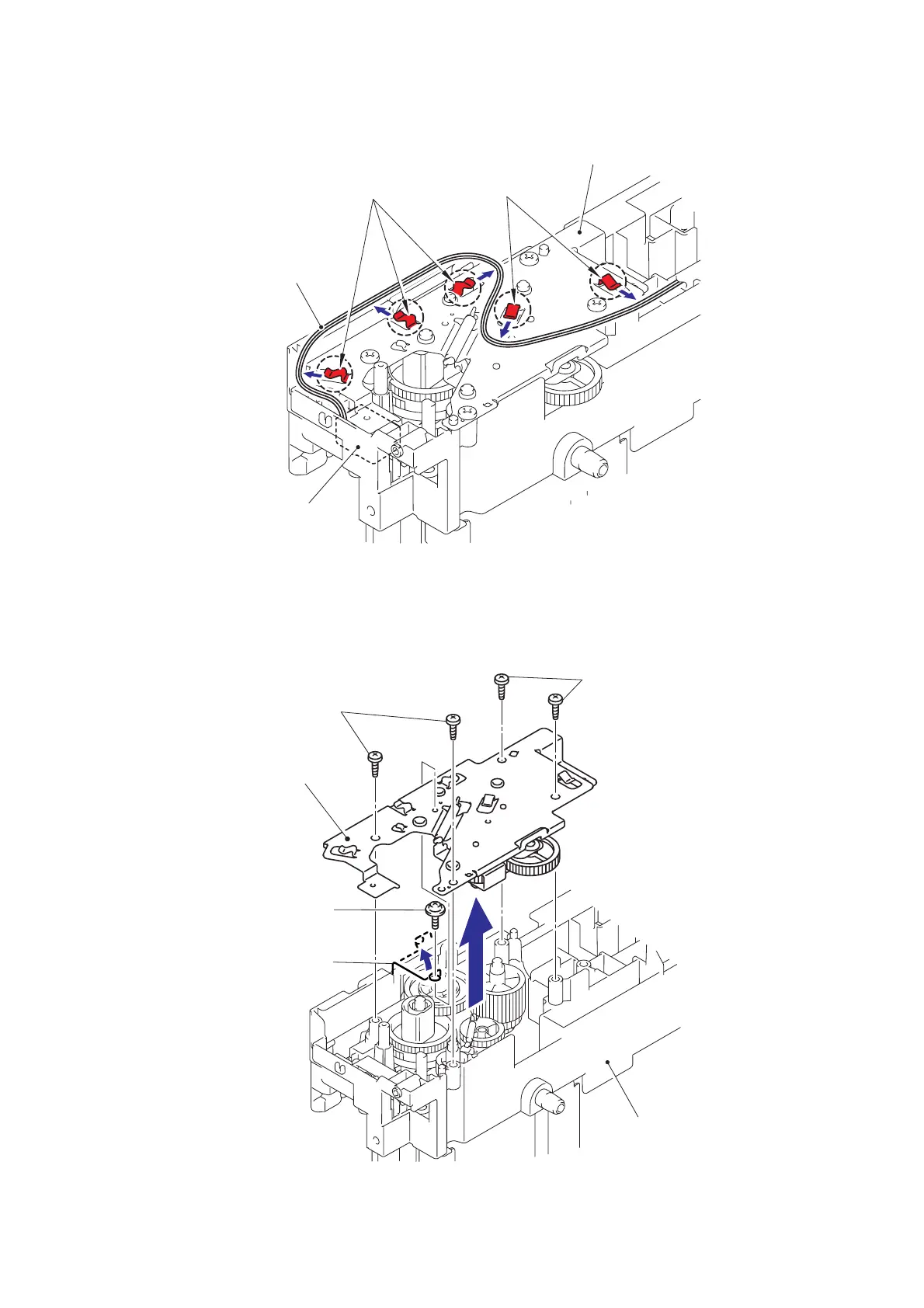

(4) Remove the LT solenoid harness from the Hooks of the LT drive unit.
Fig. 5-155
(5) Remove the cup S M3x6 Taptite screw.
(6) Remove the four bind B M4x12 Taptite screws, and then remove the LT drive unit.
Fig. 5-156
Hooks
LT drive unit
Hooks
LT solenoid harness
LT solenoid ASSY
Taptite, bind B M4x12
Taptite, bind B M4x12
Taptite, cup S M3x6
LT drive unit
LT frame L
Ground wire top
