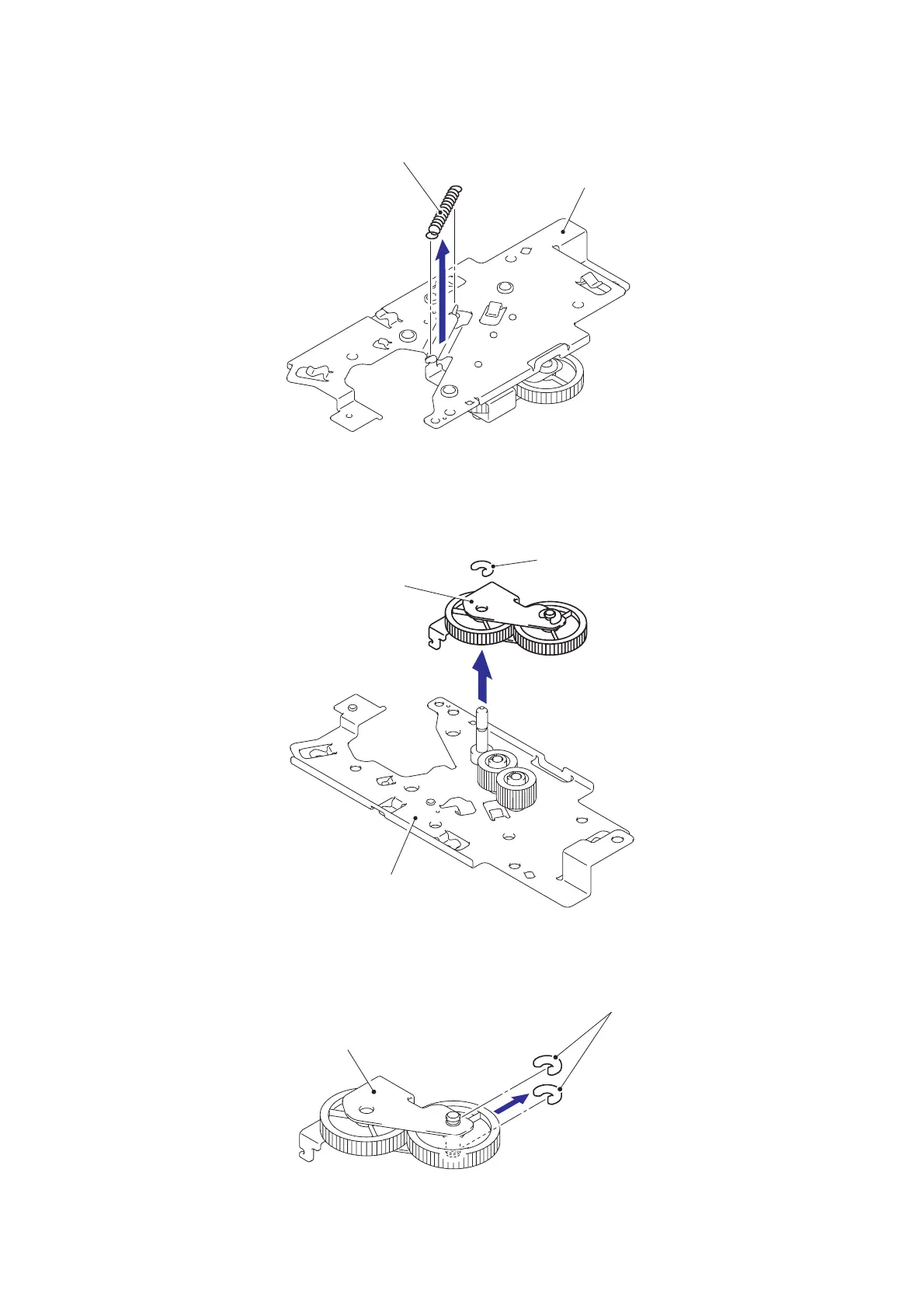

(7) Remove the Clutch spring from the LT drive unit.
Fig. 5-157
(8) Remove the Collar 6.
(9) Remove the Clutch arm ASSY from the LT drive unit.
Fig. 5-158
(10) Remove the Collar 6 from the Clutch arm ASSY.
Fig. 5-159
LT drive unit
Clutch spring
Clutch arm ASSY
LT drive unit
Collar 6
Clutch arm ASSY
Collar 6
