Brother MFC-9125CN Service Manual

3-74
Confidential

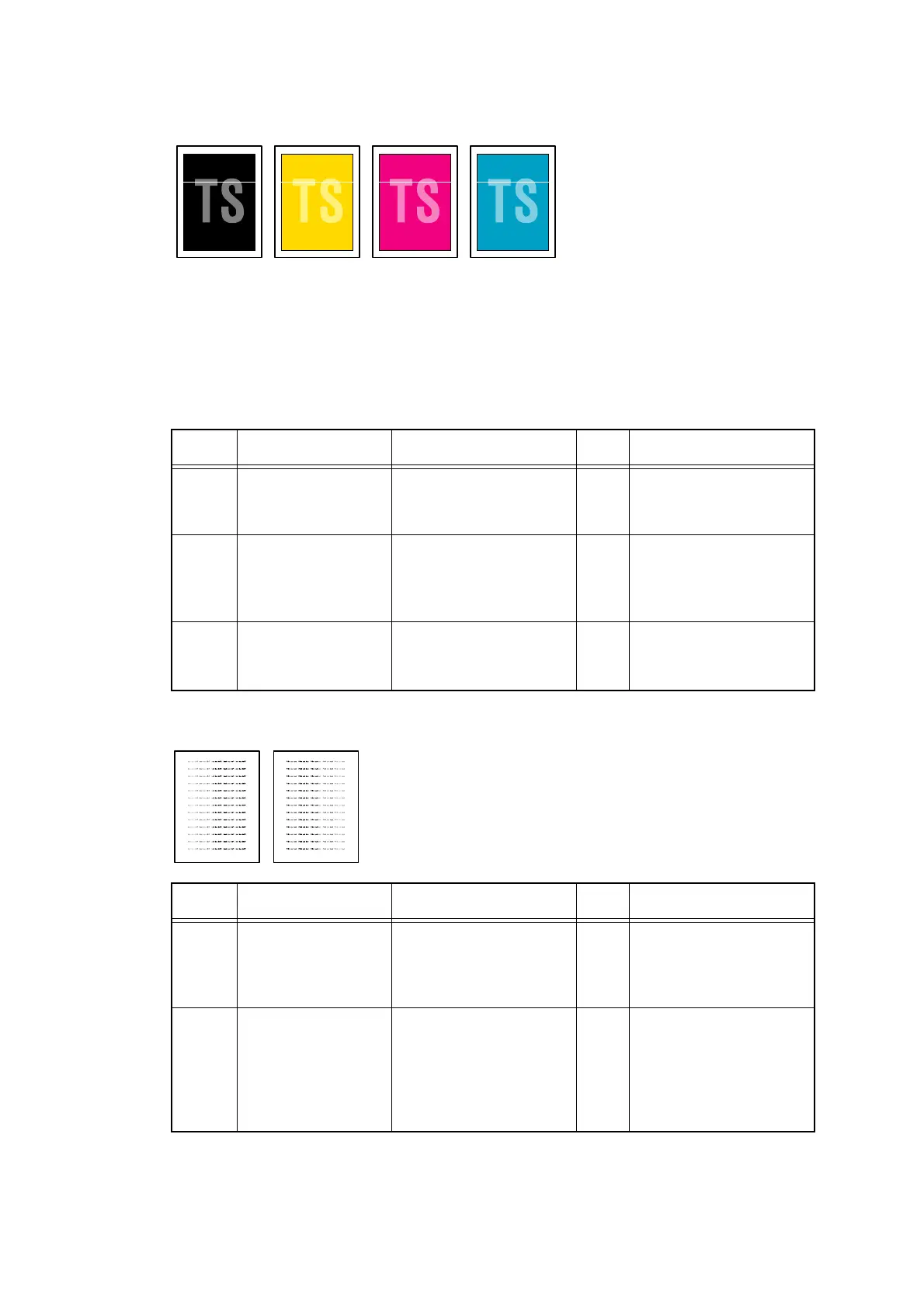

■ White horizontal stripes on one color image
<User Check>
- The problem may disappear by itself. Try printing multiple pages to clear this problem
especially if the machine has not been used for a long time.
- Replace the toner cartridge with a new one.
- The drum unit may be damaged. Replace the drum unit with a new one.
■ Faint print
Step Cause Check
Result
Remedy
1 HVPS control PCB
failure
Is the problem solved
after replacing the HVPS
control PCB ASSY?
Yes Replace the HVPS
control PCB ASSY.
2 High-voltage power
supply PCB failure
Is the problem solved
after replacing the
high-voltage power
supply PCB ASSY?
Yes Replace the
high-voltage power
supply PCB ASSY.
3 Engine PCB failure Is the problem solved
after replacing the
engine PCB ASSY?
Yes Replace the engine
PCB ASSY.
<User Check>
- Open and close the top cover and make print again.
- Check that the machine is installed on a level surface.
- Replace the toner cartridge with a new one.
- Clean the LED array with a soft lint-free cloth.
Step Cause Check
Result
Remedy
1
Lifting of LED ASSY Is printing of the LED
ASSY test pattern
correctly done in
“Function code 68”?
Yes Re-assemble the LED
ASSY.
2 Toner/new
sensor PCB failure
Is the “Replace Toner”
message indicated on
the LCD when replacing
the toner cartridge with
the one which has
reached the end of life?
No Replace the toner/new
sensor PCB ASSY.

Brother MFC-9125CN Specifications

General

DVD/CD printing	No
Print technology	LED
Maximum resolution	2400 x 600 DPI
Economical printing	Yes
Print speed (black, normal quality, A4/US Letter)	19 ppm
Fax compatibility	ITU-T G3
Dimensions (WxDxH)	429.3 x 490.2 x 398.8 mm
All-in-one functions	Copy, Fax, Print, Scan
Connectivity technology	Wired
Color all-in-one functions	copy, fax, print, scan
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	25000 pages per month
Number of print cartridges	4
Page description languages	BR-Script 3, PCL 6
Copier resize	25 - 400 %
Maximum copy resolution	- DPI
Maximum number of copies	35 copies
N-in-1 copy function (N=)	2, 4
Copy speed (black, normal quality, A4)	19 cpm
Scan to	CIFS, E-mail, File, FTP, Image, OCR
Scanner type	Flatbed scanner
Input color depth	48 bit
Maximum scan area	A4 / Letter (216 x 297) mm
Image formats supported	BMP, JPG, TIF
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	1200 x 2400 DPI
Fax memory	600 pages
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG, JPEG, MH, MMR (Fax coding method), MR
Fax transmission speed	2 sec/page
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	100 sheets
Total number of input trays	2
Multi-Purpose tray input capacity	1 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Display	LCD
Market positioning	Business
Direct printing	-
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Client and ServerTELNET Server, HTTP/HTTPS server, TFTP client and server, SMTP Client, APOP, POP before SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMP, LLTD responder, WebServicesPrint, CIFS Client, SNTP, SSL/TLS
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Client and Server, TELNET Server, HTTP/HTTPS server, TFTP client and server, SMTP Client, APOP, POP before SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMPv6, LLTD responder, WebServicesPrint, CIFS Client, SNTP, SSL/TLS
Maximum internal memory	576 MB
Sound power level (standby)	30 dB
Sound pressure level (copying)	53 dB
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (off)	11 W
Power consumption (PowerSave)	75 W
Power consumption (average operating)	480 W
Package weight	28490 g
Operating relative humidity (H-H)	20 - 80 %
