Brother MFC-9125CN - Upper Document Chute ASSY

5-64
Confidential
8.17 Upper Document Chute ASSY
(1) Remove the four Taptite cup B M3x10 screws from the Upper document chute ASSY.
(2) Release the five Hooks to remove the Upper document chute ASSY.

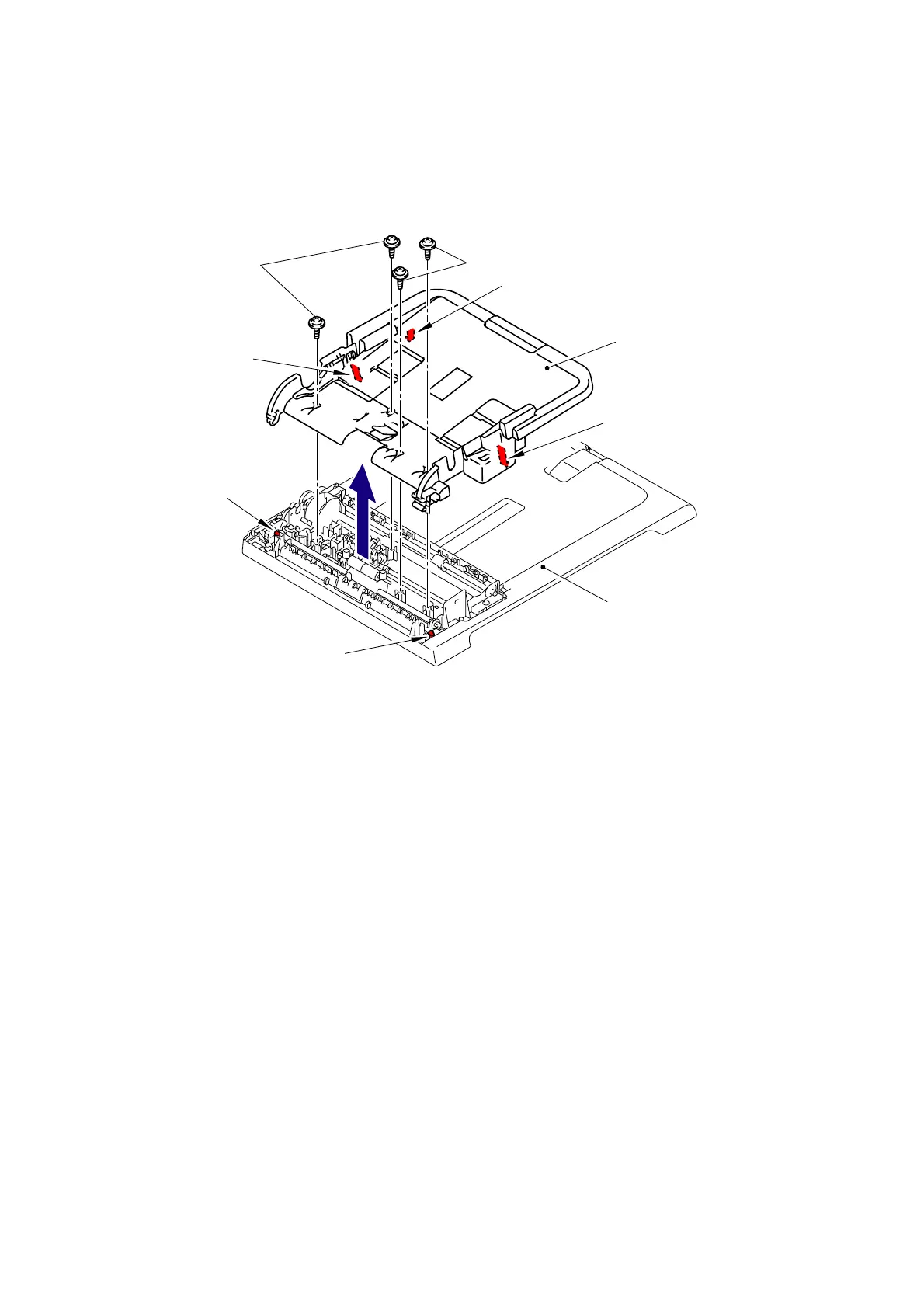

Fig. 5-48
Taptite cup B M3x10
Taptite cup B M3x10
Hook
Upper document chute ASSY
Hook
Hook
Hook
Hook
ADF unit
