8.73 Air Filter Holder ASSY/Ozone Filter

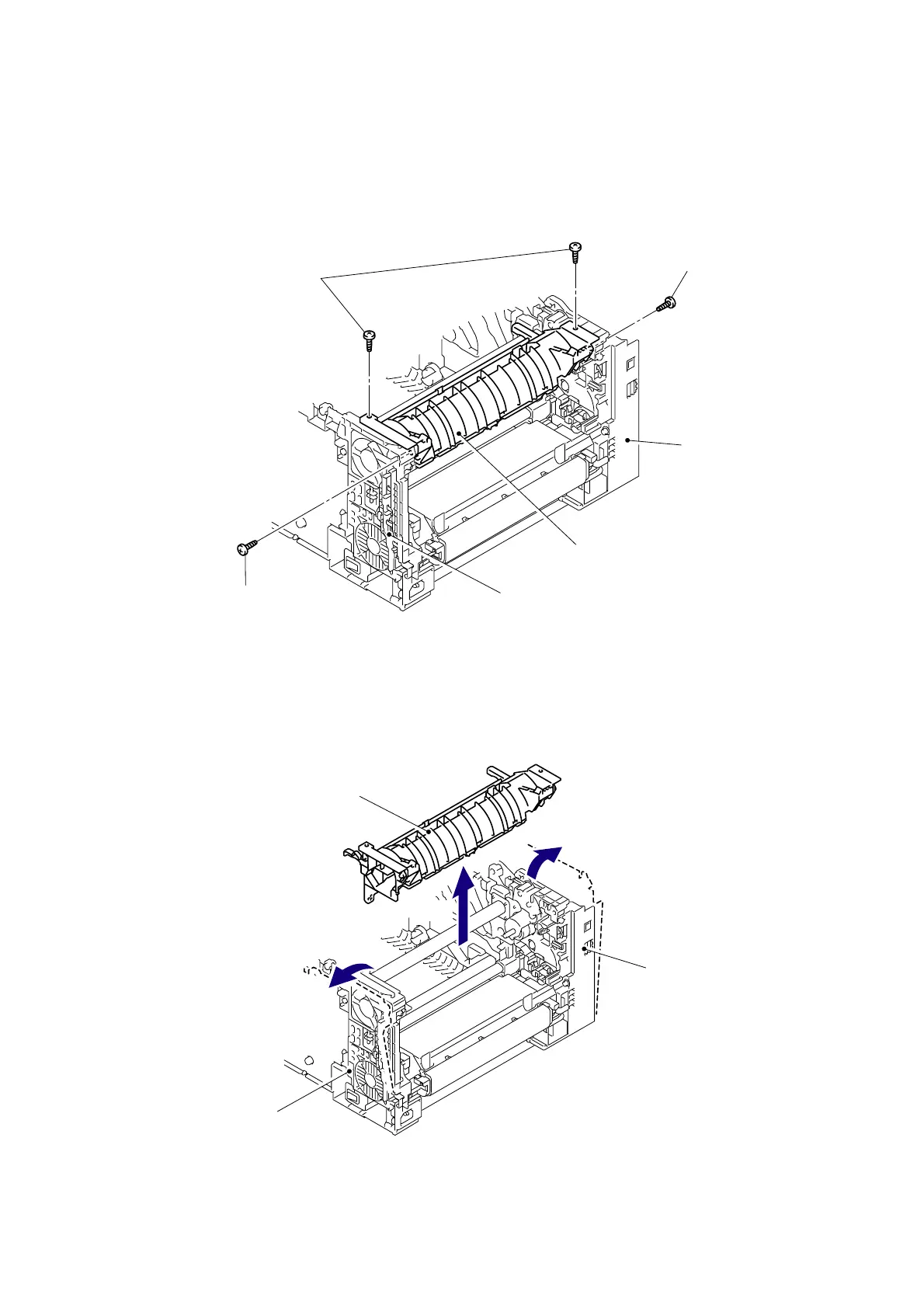

(1) Remove the two Taptite bind B M4x12 screws from the Paper eject guide ASSY.
(2) Remove the two Taptite bind B M4x12 screws from the Side frame L and Side frame R.
Fig. 5-211
(3) Open the left and right frames to the outside and remove the Paper eject guide ASSY
from the Main body.
Fig. 5-212
Paper eject guide ASSY
Taptite bind B M4x12
Taptite bind B M4x12
Taptite bind B M4x12
Side frame R
Side frame L
<Back side>
Paper eject guide ASSY
Side frame R
Side frame L
3a
3a
3b
<Back side>
