Brother MFC-9125CN - Pull Arm L;Pull Arm R;Pull Arm Spring

5-54
Confidential
8.11 Pull Arm L/Pull Arm R/Pull Arm Spring

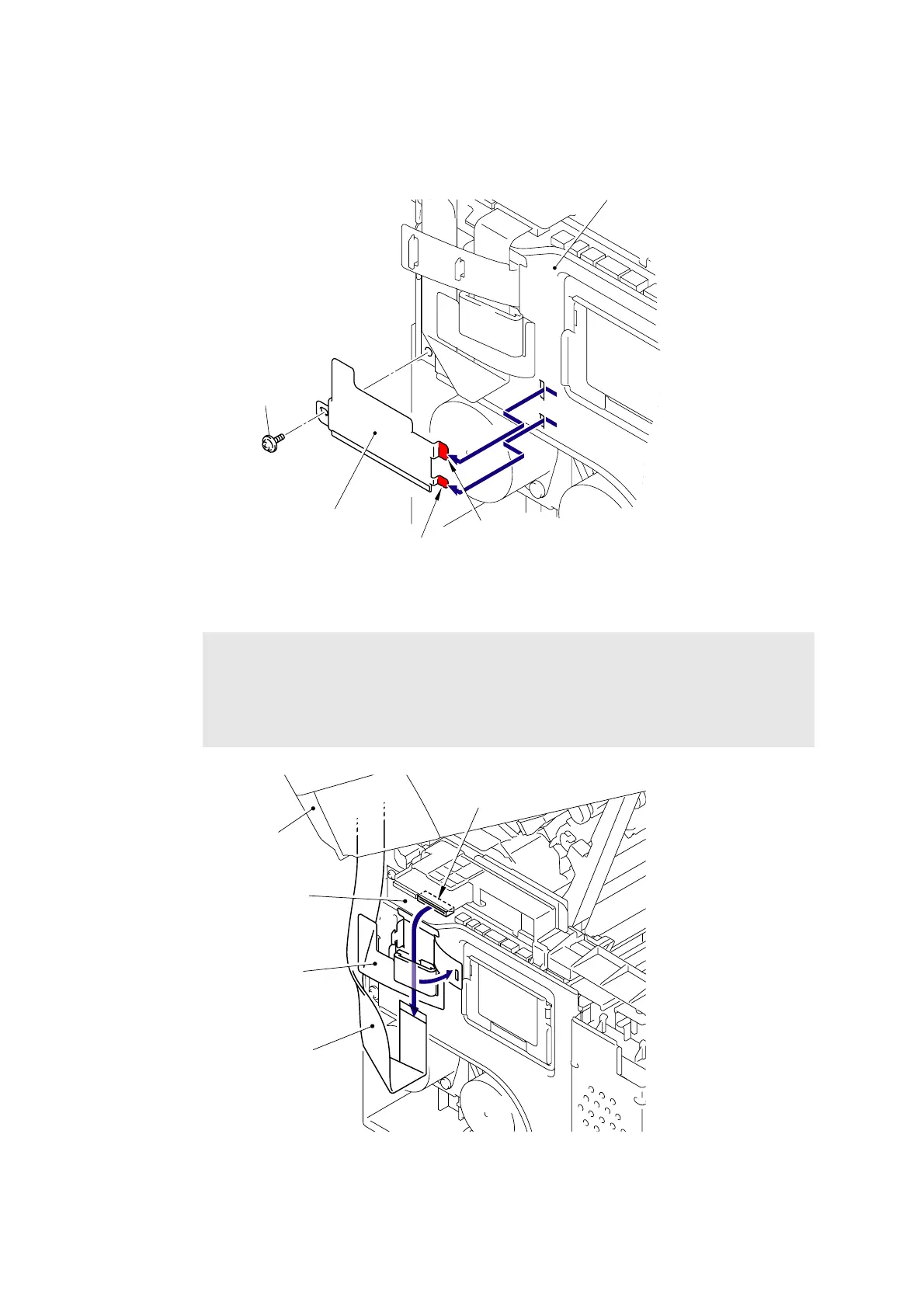

(1) Remove the Taptite cup S M3x6 SR screw, and then remove the CIS harness hold plate.
Fig. 5-32
(2) Disconnect the CIS harness from the Main PCB ASSY.
Fig. 5-33
Note:
- After disconnecting the flat cable(s), check that each cable is not damaged at its end
or short-circuited.
- When connecting the flat cable(s), do not insert it at an angle. After insertion, check
that the cable is not at an angle.
CIS harness hold plate
<Left side>
Hook
Hook
Taptite cup S M3x6 SR
Main shield cover
plate ASSY
CN20
CIS harness
Document scanner unit
Main PCB ASSY
Main PCB harness film 1
<Left side>
