8.27 Panel PCB ASSY

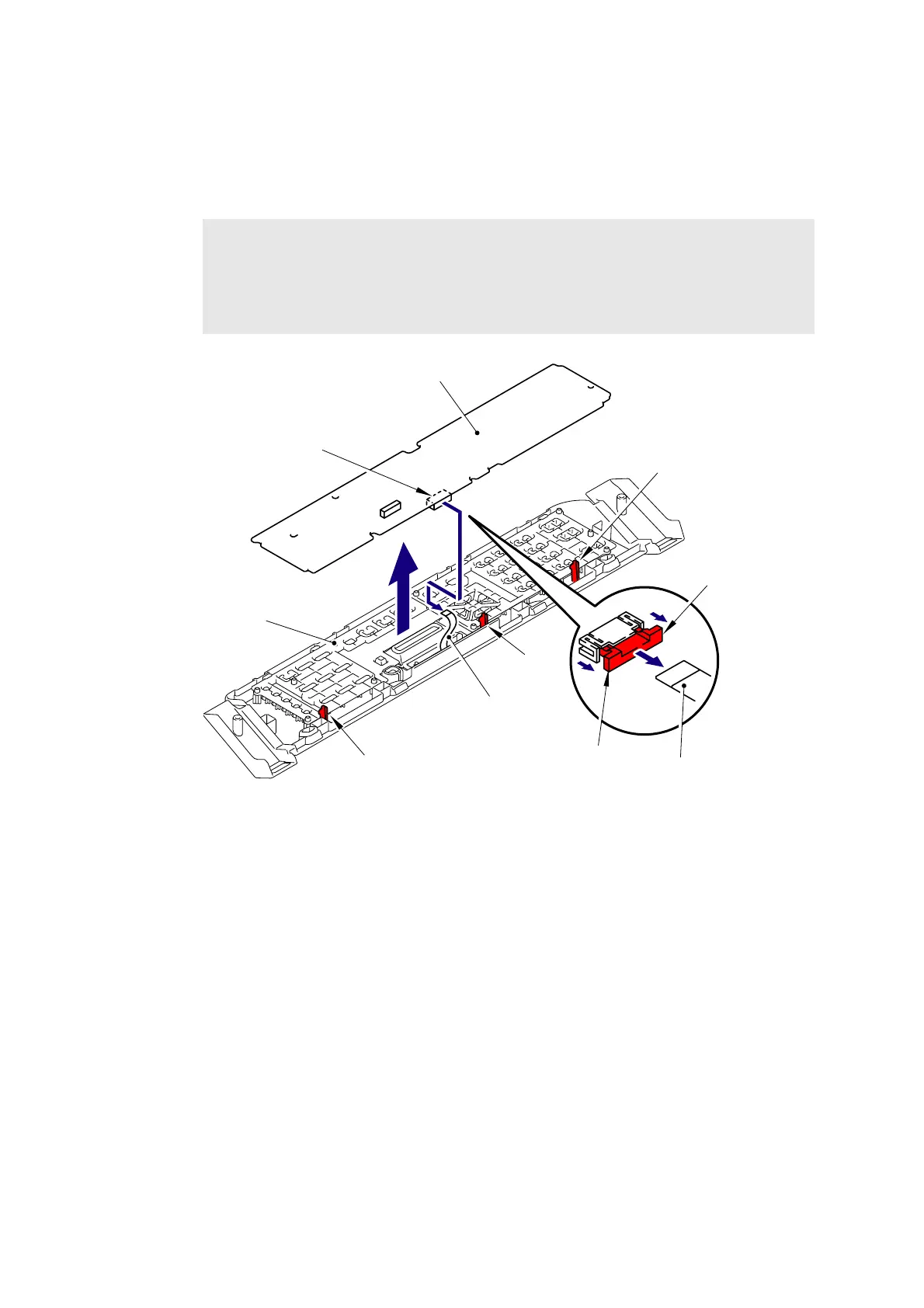

(1) Release the three Hooks to remove the Panel PCB ASSY from the Panel unit.
(2) Turn over the Panel PCB ASSY, release the lock of the connector (CN2) by pushing it in
the direction of the arrow 2a, and
disconnect the FC harness.
Fig. 5-70
Note:
- After disconnecting the flat cable(s), check that each cable is not damaged at its end
or short-circuited.
- When connecting the flat cable(s), do not insert it at an angle. After insertion, check
that the cable is not at an angle.
Hook
Panel unit
Panel PCB ASSY
Hook
Hook
CN2
Lock
FC harness
Lock
FC harness
2b
1
2c
2a
2a
