Brother MFC-9125CN - Top Cover Arm R

5-166
Confidential
8.71 Top Cover Arm R
(1) Release the Hook to remove the TC arm pivot shaft from the Side frame R.
(2) Remove the Top cover arm R from the Side frame R.

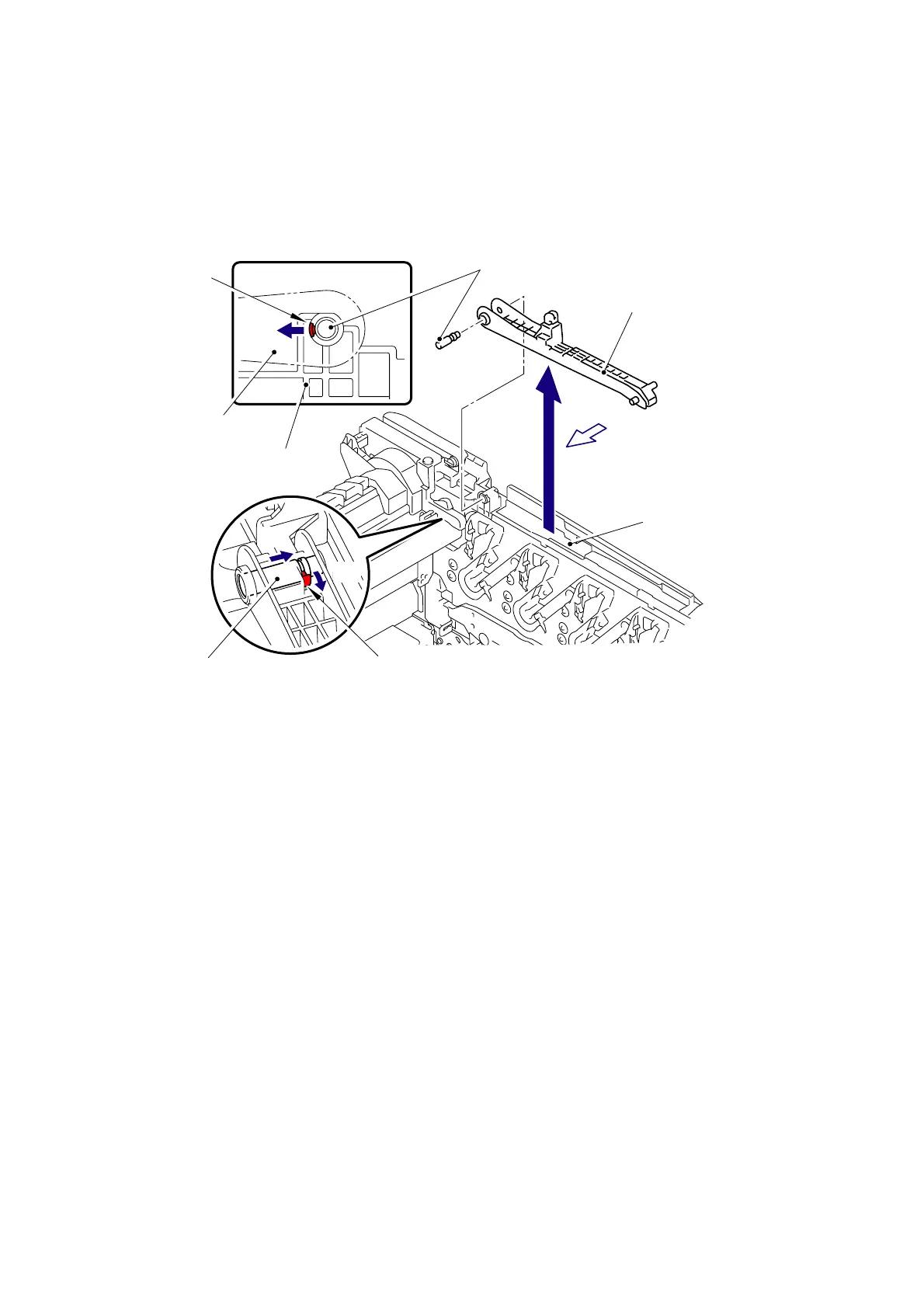

Fig. 5-208
Hook
TC arm pivot shaft
Side frame R
Top cover arm R
Hook
Top cover arm R
TC arm pivot shaft
Side frame R
A view
<A view>
1a
1a
1b
2
