5-29
Confidential

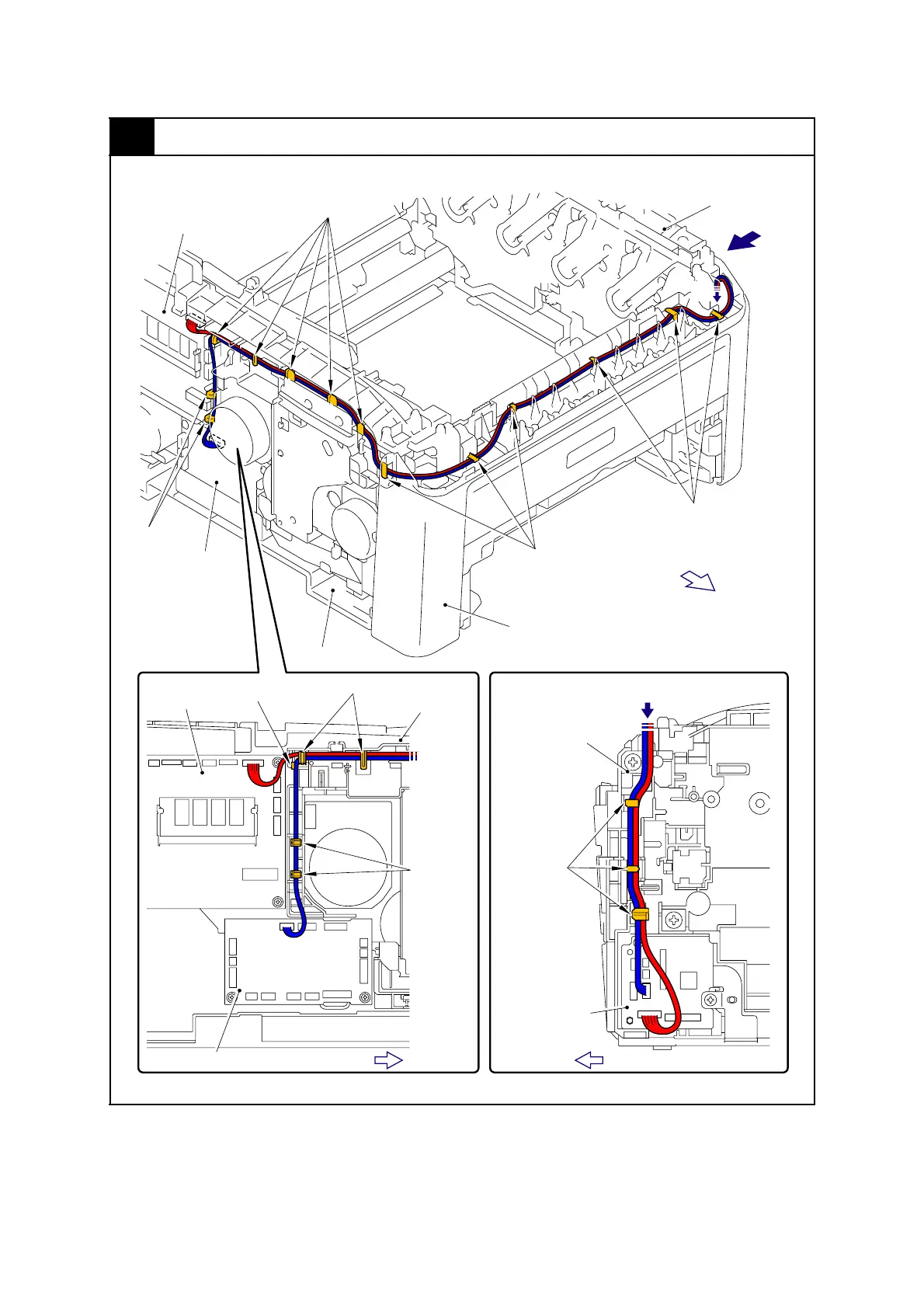

25 HVPS Control PCB ASSY
Front
<A view>
A view
Hook
Main PCB ASSY
Hook
Hook
Side frame R
Front cover top ASSY
Side frame L
Hook
Engine PCB ASSY
Side frame R
Hook
Front
Front
Engine PCB ASSY
Hook
Hook
Side frame L
Main PCB ASSY
Rib
HVPS control
PCB ASSY
A
A
