Brother MFC-9125CN Service Manual

App.1-5
Confidential
- Selector 7: Switching between pulse and tone dialing, by the function switch
This selector determines whether or not the dialing mode can be switched between the pulse (DP)
and tone (PB) dialing by using the function switch.
- Selector 8: Default dialing mode, pulse (DP) or tone (PB) dialing
This selector sets the default dialing mode (pulse dialing or tone dialing) which can be changed by
the function switch. If the user switches it with the function switch when selector 7 is set to “0,” the
setting specified by this selector will also be switched automatically.
■ WSW02 (Tone signal setting)

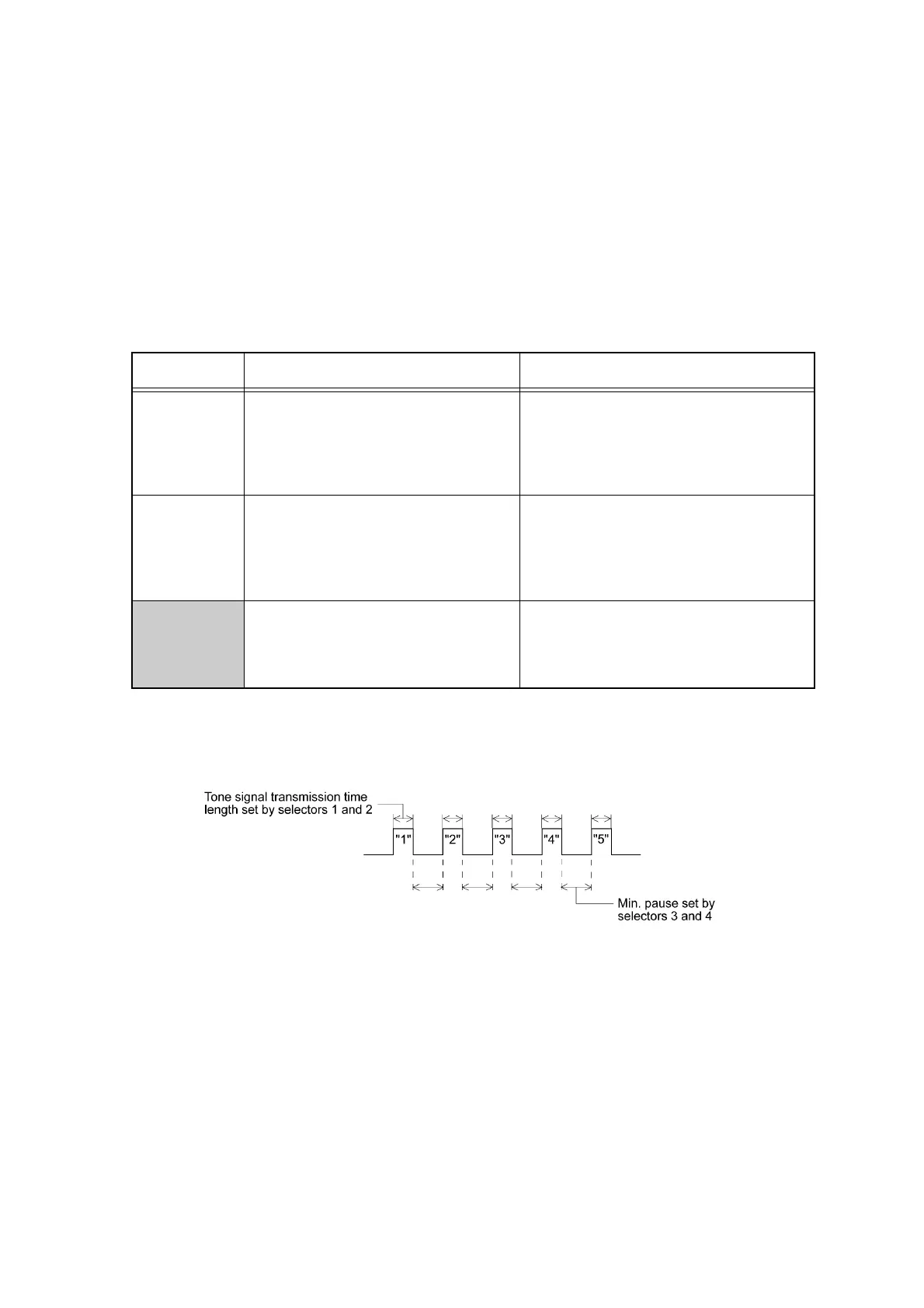

- Selectors 1 through 4: Tone signal transmission time length and Min. pause in tone dialing
These selectors set the tone signal transmission time length and minimum pause in tone dialing.
(Example: If “1,” “2,” “3,” “4,” and “5” are dialed.)
- Selectors 5 through 8: Attenuator for pseudo ring backtone to the line
These selectors are used to adjust the sound volume of a ring backtone in the F/T mode, an on-hold
sound, or a beep generated as a signal during remote control operation or at the start of ICM recording.
The larger the value specified by these selectors, the greater the attenuation.
Selector No. Function Setting and Specifications
1
2
Tone signal transmission time length
No. 1 2
0 0: 70 ms
0 1: 80 ms
1 0: 90 ms
1 1: 100 ms
3
4
Min. pause in tone dialing
No. 3 4
0 0: 70 ms
0 1: 80 ms
1 0: 90 ms
1 1: 140 ms
5
|
8
Attenuator for pseudo ring backtone
to the line (selectable in the range of
0-15 dB, in 1 dB increments)
0: 0 dB 1: 8 dB
0: 0 dB 1: 4 dB
0: 0 dB 1: 2 dB
0: 0 dB 1: 1 dB

Brother MFC-9125CN Specifications

General

DVD/CD printing	No
Print technology	LED
Maximum resolution	2400 x 600 DPI
Economical printing	Yes
Print speed (black, normal quality, A4/US Letter)	19 ppm
Fax compatibility	ITU-T G3
Dimensions (WxDxH)	429.3 x 490.2 x 398.8 mm
All-in-one functions	Copy, Fax, Print, Scan
Connectivity technology	Wired
Color all-in-one functions	copy, fax, print, scan
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	25000 pages per month
Number of print cartridges	4
Page description languages	BR-Script 3, PCL 6
Copier resize	25 - 400 %
Maximum copy resolution	- DPI
Maximum number of copies	35 copies
N-in-1 copy function (N=)	2, 4
Copy speed (black, normal quality, A4)	19 cpm
Scan to	CIFS, E-mail, File, FTP, Image, OCR
Scanner type	Flatbed scanner
Input color depth	48 bit
Maximum scan area	A4 / Letter (216 x 297) mm
Image formats supported	BMP, JPG, TIF
Maximum scan resolution	19200 x 19200 DPI
Optical scanning resolution	1200 x 2400 DPI
Fax memory	600 pages
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG, JPEG, MH, MMR (Fax coding method), MR
Fax transmission speed	2 sec/page
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	100 sheets
Total number of input trays	2
Multi-Purpose tray input capacity	1 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper
Non-ISO print media sizes	Executive
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Display	LCD
Market positioning	Business
Direct printing	-
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	1
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Client and ServerTELNET Server, HTTP/HTTPS server, TFTP client and server, SMTP Client, APOP, POP before SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMP, LLTD responder, WebServicesPrint, CIFS Client, SNTP, SSL/TLS
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Client and Server, TELNET Server, HTTP/HTTPS server, TFTP client and server, SMTP Client, APOP, POP before SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMPv6, LLTD responder, WebServicesPrint, CIFS Client, SNTP, SSL/TLS
Maximum internal memory	576 MB
Sound power level (standby)	30 dB
Sound pressure level (copying)	53 dB
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Power consumption (off)	11 W
Power consumption (PowerSave)	75 W
Power consumption (average operating)	480 W
Package weight	28490 g
Operating relative humidity (H-H)	20 - 80 %
