9.4 FB Hinge

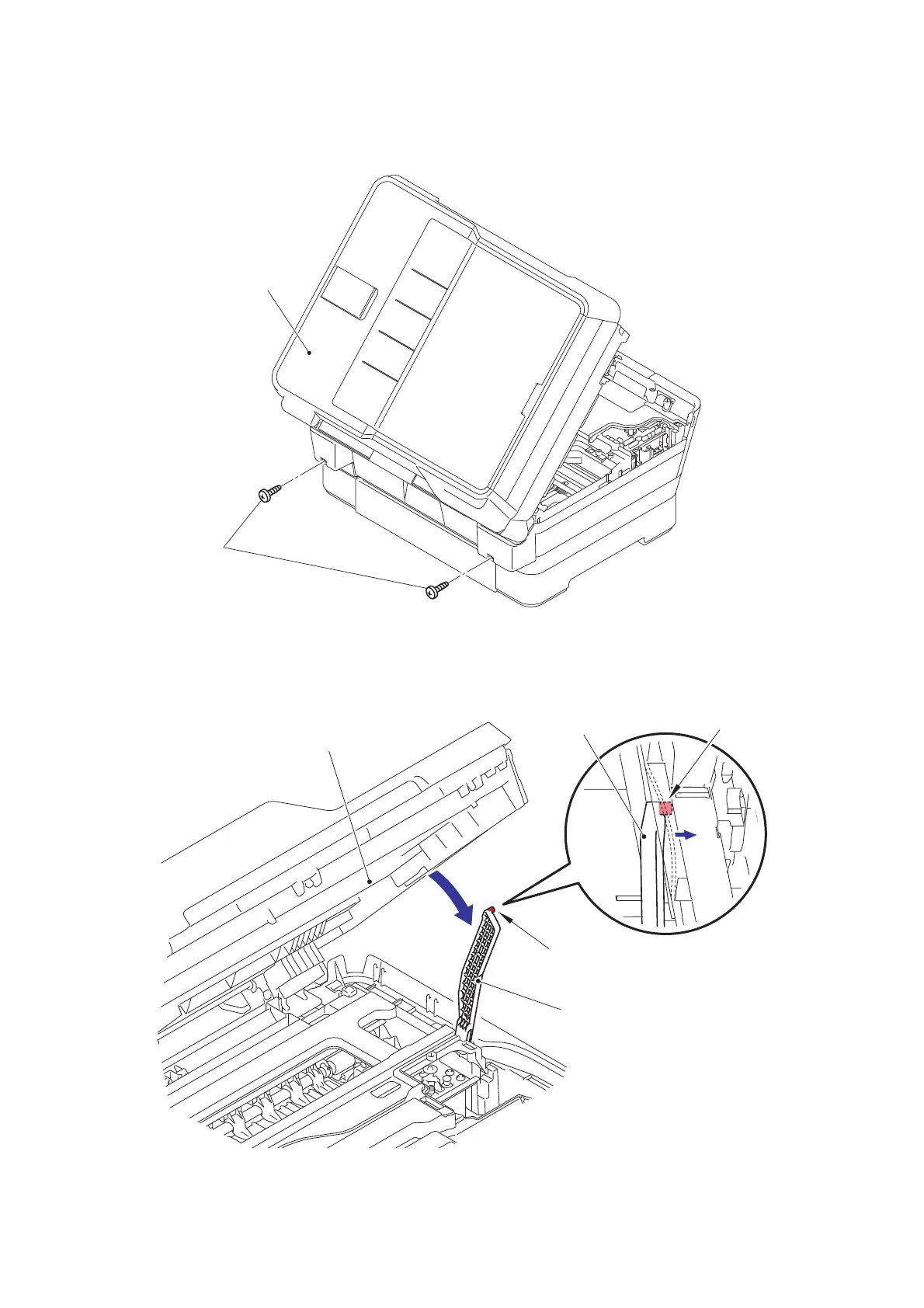

(1) Remove the two screws (TAPTITE BIND B M4x12).

Fig. 3-26

(2) Tilt the Scanner cover to the position shown in the figure.

(3) Remove the Pin of the Scanner cover support from the Scanner cover.

Fig. 3-27

TAPTITE BIND

B M4x12

Scanner cover

Scanner cover support

Scanner cover

Scanner cover support
