9.18 Second Side CIS Flat Cable

(1) Take out the CIS sponge from the Second side CIS flat cable.

(2) Peel off the Second side CIS flat cable which is secured with Double-sided

adhesive tape from the Upper document chute.

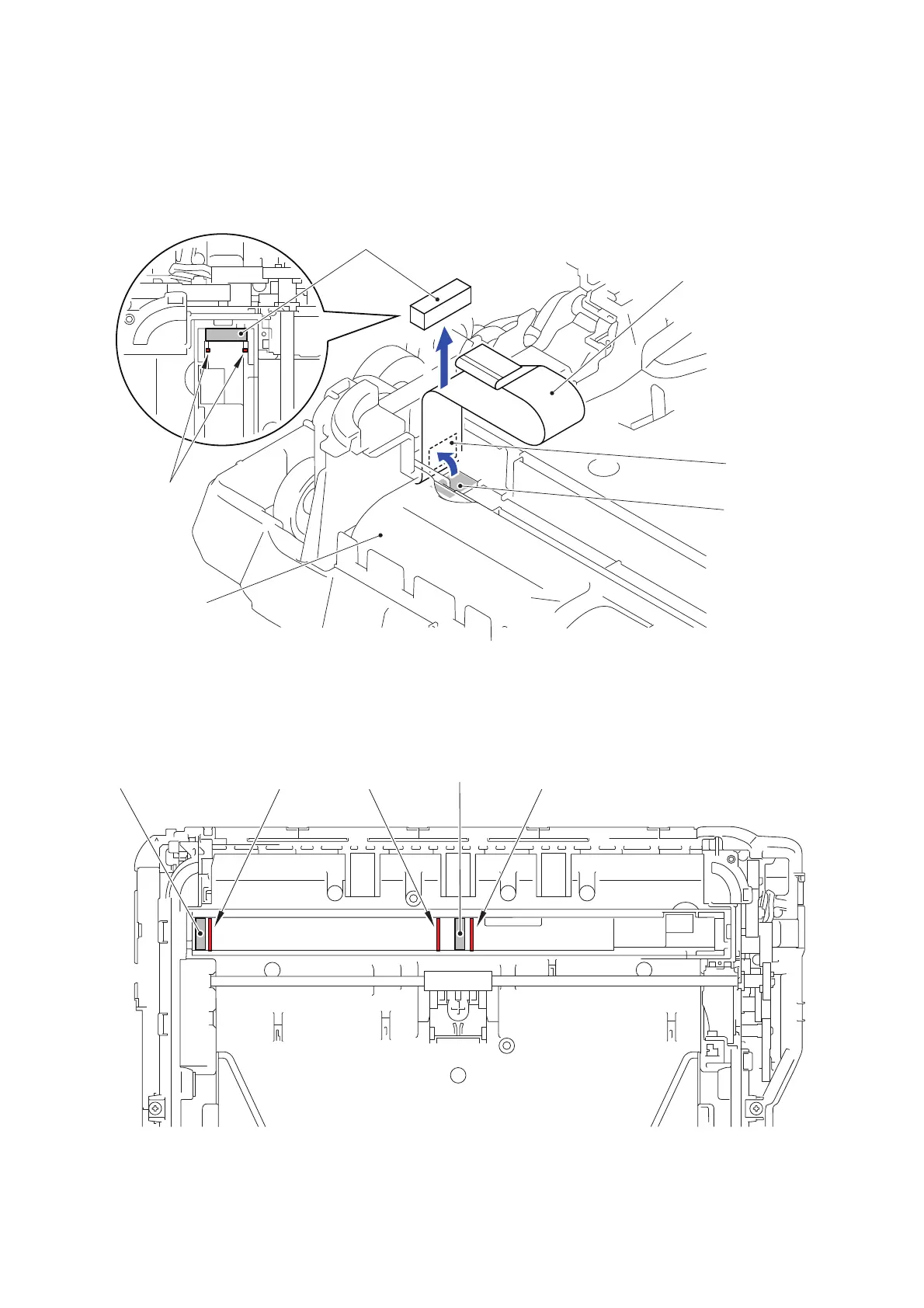

Fig. 3-57

Note: Be careful not to lose the CIS sponge shown in the figure.

Fig. 3-58

CIS sponge

Double-sided

Second side CIS flat cable

Rib

Upper document chute

adhesive tape

Double-sided

adhesive tape

attachment

position

CIS sponge

Rib
