9.51 Carriage Motor ASSY

(1) Release the wiring of the Carriage motor harness.

(2) Remove the two screws (TAPTITE CUP B M3x10) from the CR frame ASSY.

(3) Remove the two CR frame springs from the CR frame ASSY.

(4) Release the Hook and remove the CR frame ASSY.

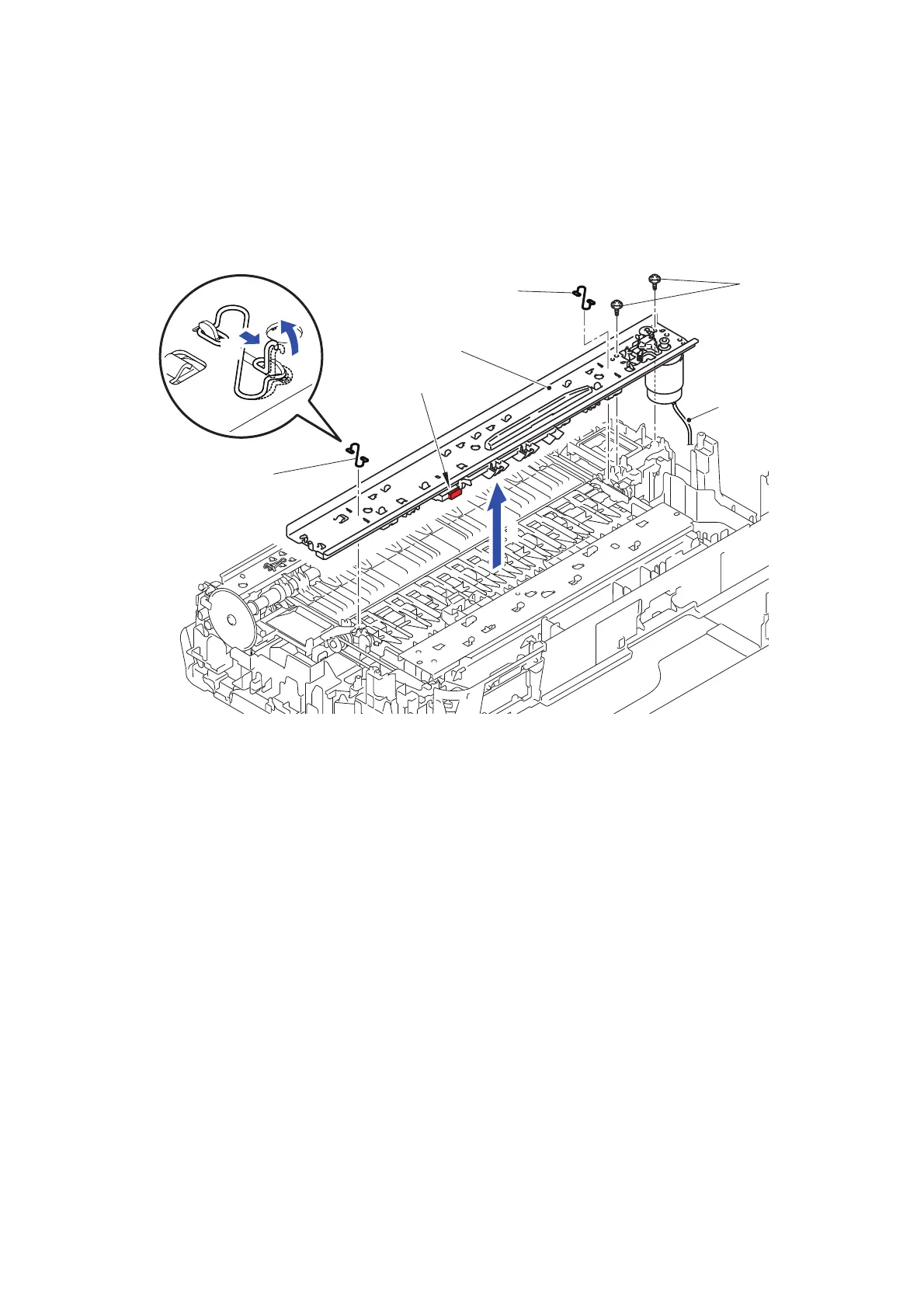

Fig. 3-123

TAPTITE

CUP B

M3x10

CR frame ASSY

CR frame spring

Hook

Carriage

motor harness

<Front>

<Rear>
