Brother MFC-J3520 Service Manual

3-121
Confidential
9.60 Inner Chute ASSY
(1) Take off the Gear shift prevention block.
(2) Release the wiring of the Registration sensor harness.
(3) Remove the Resin retaining ring from the Frame base.
(4) Remove the one screw (TAPTITE CUP B M3x10) to release the Engine FG wire
from the Frame base.
(5) Remove the two screws (TAPTITE CUP B M3x10) and remove the Frame base.

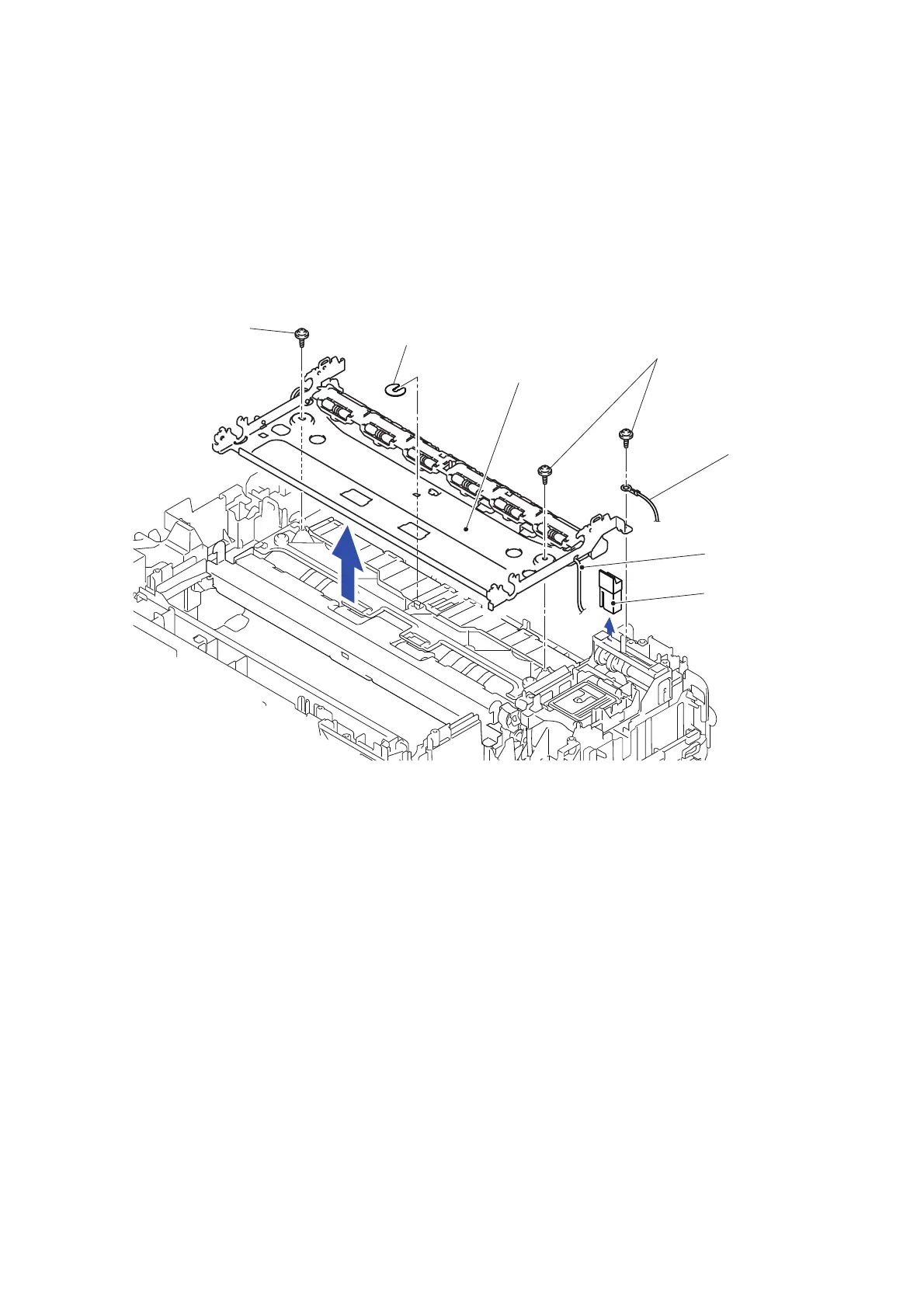

Fig. 3-145
Frame base
TAPTITE CUP B M3x10
TAPTITE CUP B M3x10
Engine
Resin retaining ring
Gear shift
Registration
prevention block
sensor harness
<Front>
<Rear>
FG wire

Brother MFC-J3520 Specifications

General

Print Technology	Inkjet
Duplex Printing	Yes
Fax Modem Speed	33.6 kbps
Functions	Print, Copy, Scan, Fax
Standard Paper Capacity	250 sheets
Mobile Printing	Yes
Max Print Resolution	6000 x 1200 dpi
Scanner Type	Flatbed + ADF
Max Scan Resolution	1200 x 2400 dpi
Connectivity	USB, Ethernet, Wi-Fi
Automatic Document Feeder (ADF)	Yes
Ink Cartridges	Black, Cyan, Magenta, Yellow
Print Speed (Black)	Up to 35 ppm (draft), 12 ppm (ISO)
Print Speed (Color)	27 ppm
Display	2.7" Touchscreen Color LCD
