9.35 Side Cover L and Side Cover R

(1) Release the twelve Hooks and remove the Side cover L from the Lower tray unit.

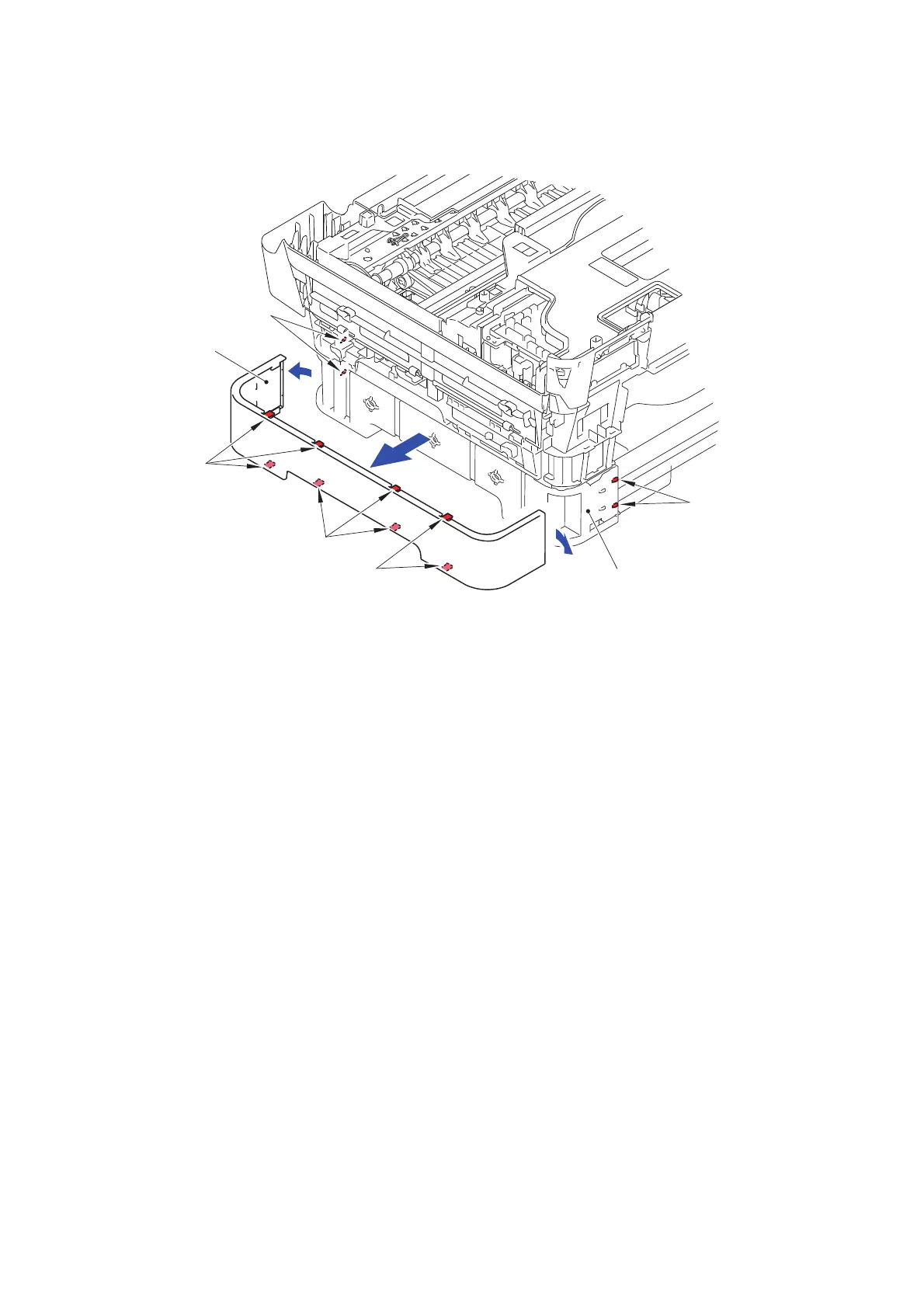

Fig. 3-96

(2) Remove the Side cover R in the same way.

Hooks

Side cover L

Lower tray unit

<Rear>

<Front>

Hooks
