Brother MFC-J3520 Service Manual

3-102
Confidential
9.48 CR Encoder Strip
(1) Release the CR encoder strip from the Encoder strip spring.
(2) Remove the CR encoder strip from the CR frame ASSY.
Note: Take care not to scratch the CR encoder strip. If it is stained or scratched,
replace it with a new one.
Assembling Note: Set the CR encoder strip so that the -marked point comes to the
position shown in the figure.

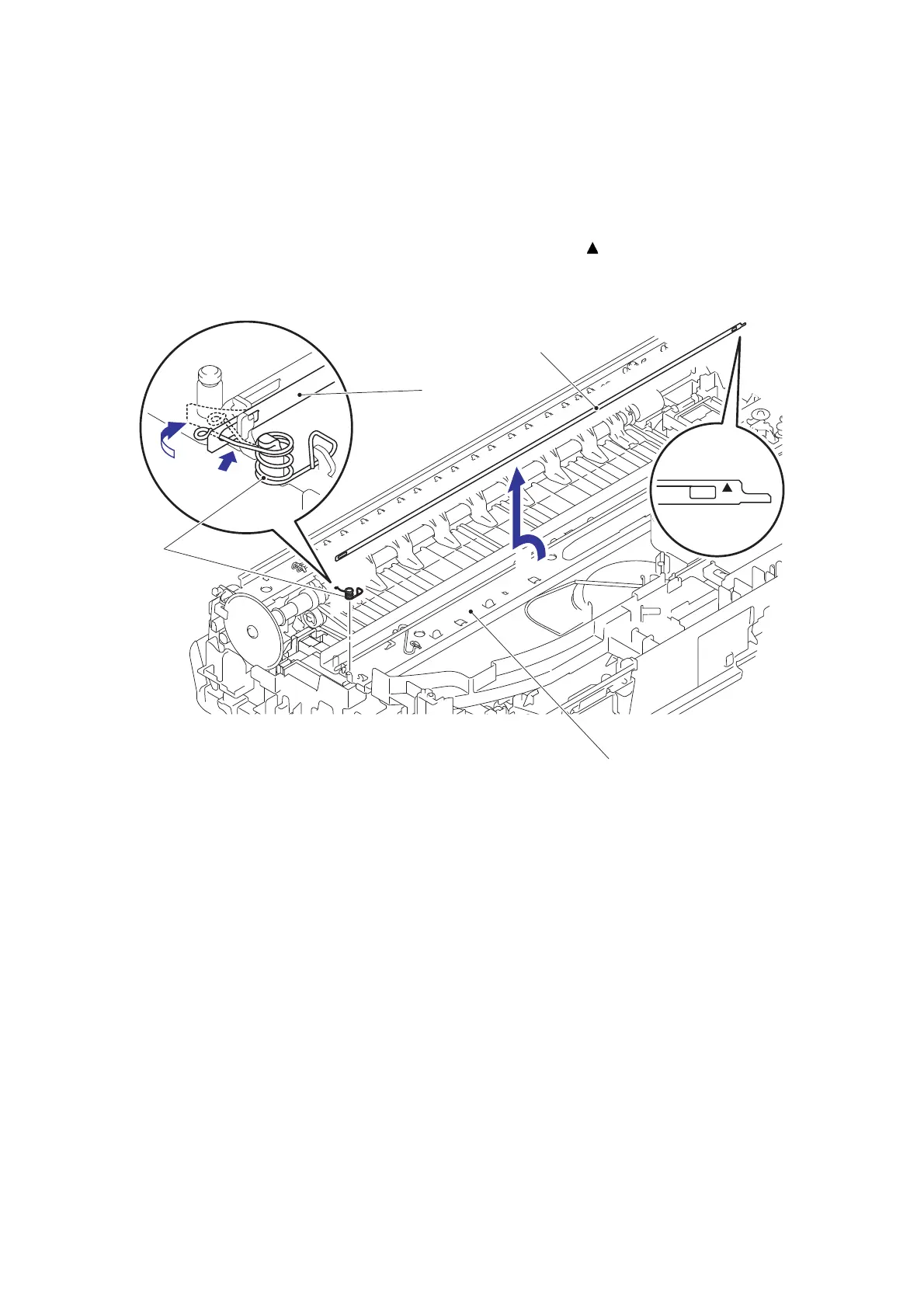

Fig. 3-119
Encoder
strip
CR encoder strip
CR encoder strip
1a
1b
2
CR frame ASSY
<Front>
<Rear>
spring

Brother MFC-J3520 Specifications

General

Print Technology	Inkjet
Duplex Printing	Yes
Fax Modem Speed	33.6 kbps
Functions	Print, Copy, Scan, Fax
Standard Paper Capacity	250 sheets
Mobile Printing	Yes
Max Print Resolution	6000 x 1200 dpi
Scanner Type	Flatbed + ADF
Max Scan Resolution	1200 x 2400 dpi
Connectivity	USB, Ethernet, Wi-Fi
Automatic Document Feeder (ADF)	Yes
Ink Cartridges	Black, Cyan, Magenta, Yellow
Print Speed (Black)	Up to 35 ppm (draft), 12 ppm (ISO)
Print Speed (Color)	27 ppm
Display	2.7" Touchscreen Color LCD
