9.26 LCD PCB ASSY

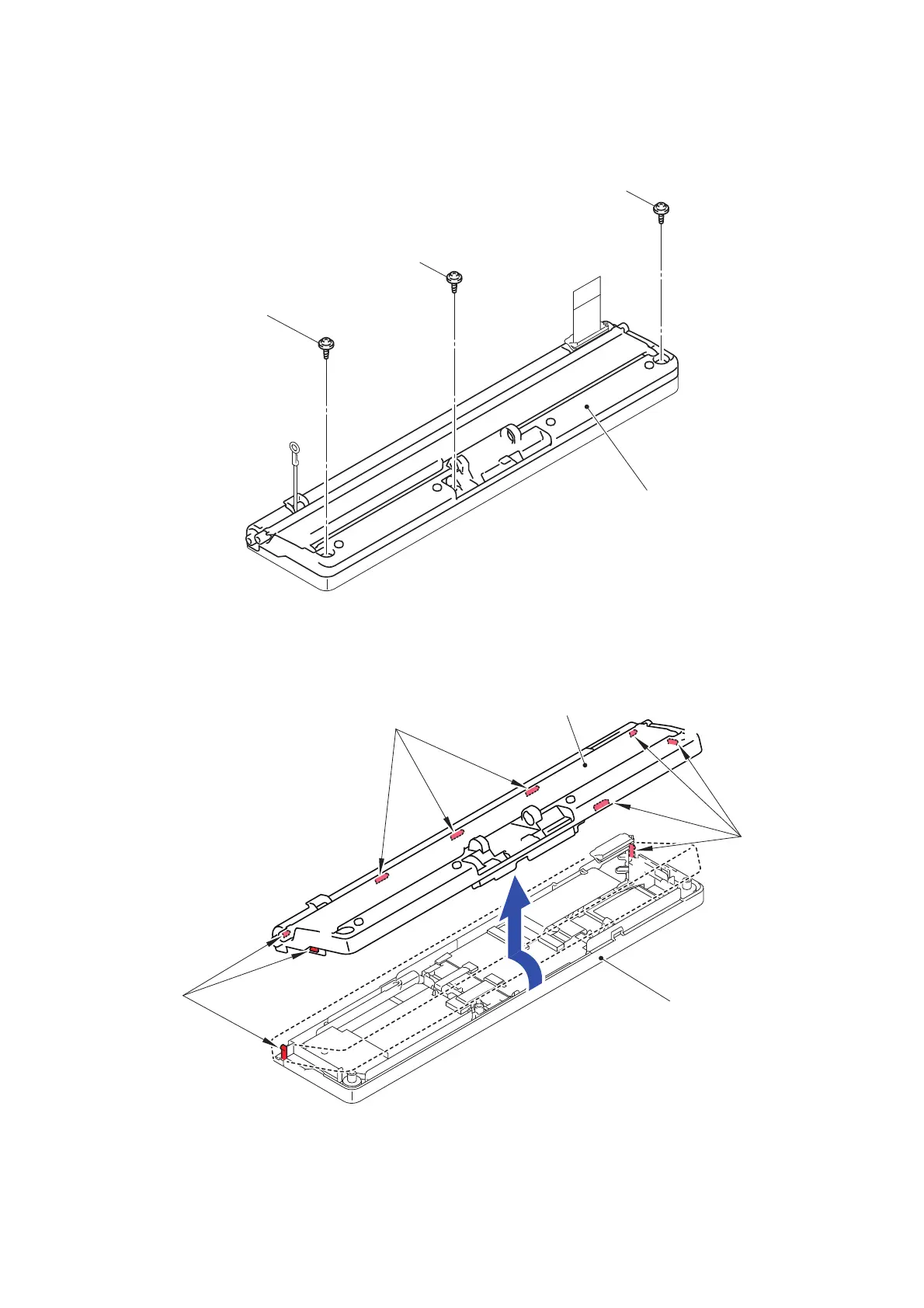

(1) Remove the three screws (TAPTITE CUP B M3x10) from the Panel ASSY.

Fig. 3-84

(2) Release the ten Hooks in the order shown in the figure below and remove the

Panel lower cover from the Panel upper cover.

Fig. 3-85

TAPTITE CUP B M3x10

Panel ASSY

Hooks

Panel lower cover

Panel upper cover

Hooks
