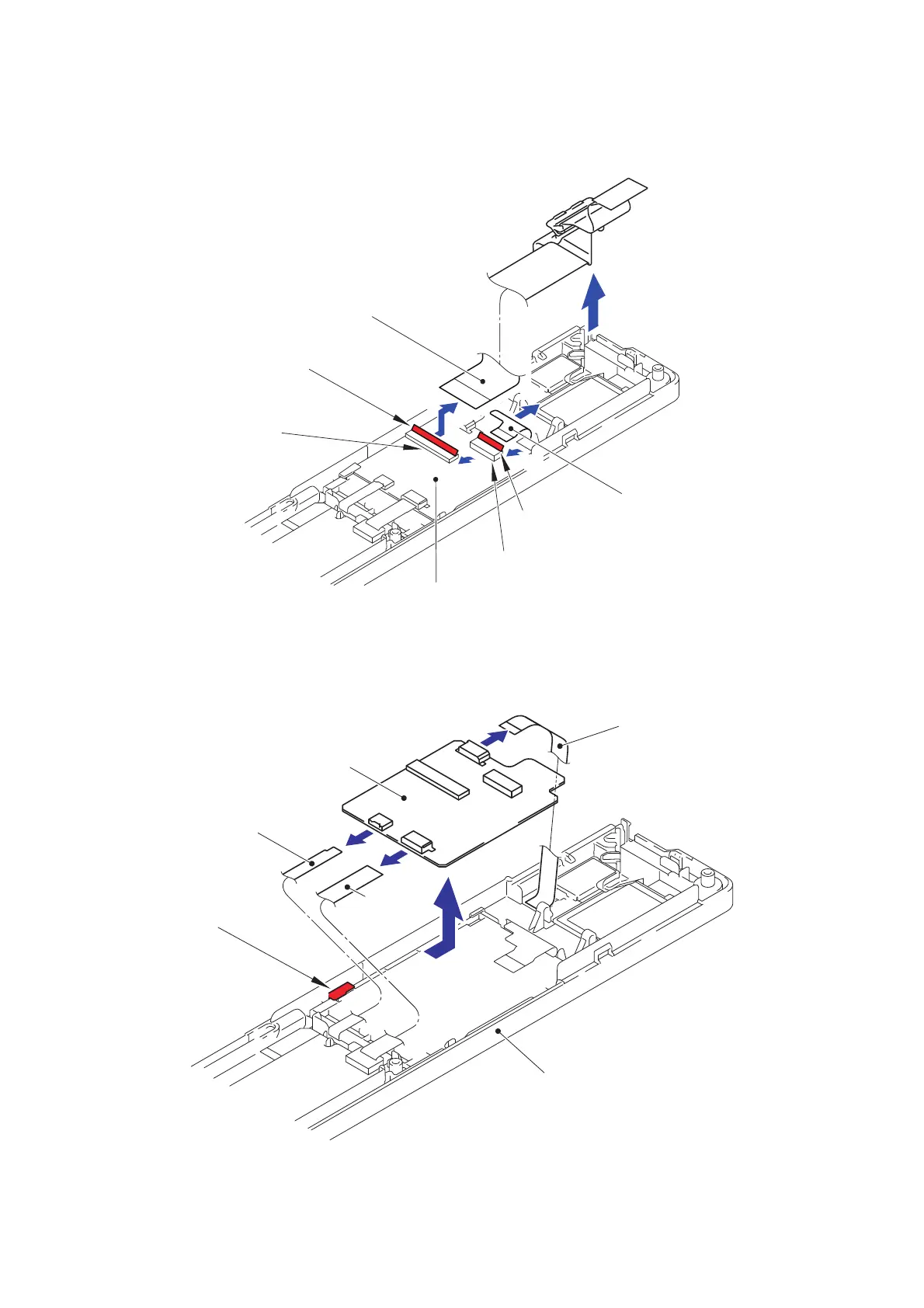

(3) Unlock the Connector 1 and disconnect the Flat cable from the LCD PCB ASSY.

(4) Unlock the Connector 2 and disconnect the Flat cable from the LCD PCB ASSY.

Fig. 3-86

(5) Lift the LCD PCB ASSY from the Panel upper cover.

(6) Disconnect the three Flat cables from the LCD PCB ASSY.

Fig. 3-87

Flat cable

Lock

LCD PCB ASSY

Connector 2

Connector 1

LCD PCB ASSY

Panel upper cover

Flat cable

Hook
