Brother MFC-J3520 Service Manual

3-89
Confidential
9.39 Main PCB ASSY
(1) Remove the two screws (TAPTITE CUP S M3x6) from the Main PCB shield.
(2) Release the Hook and remove the Main PCB shield from the Main PCB frame.

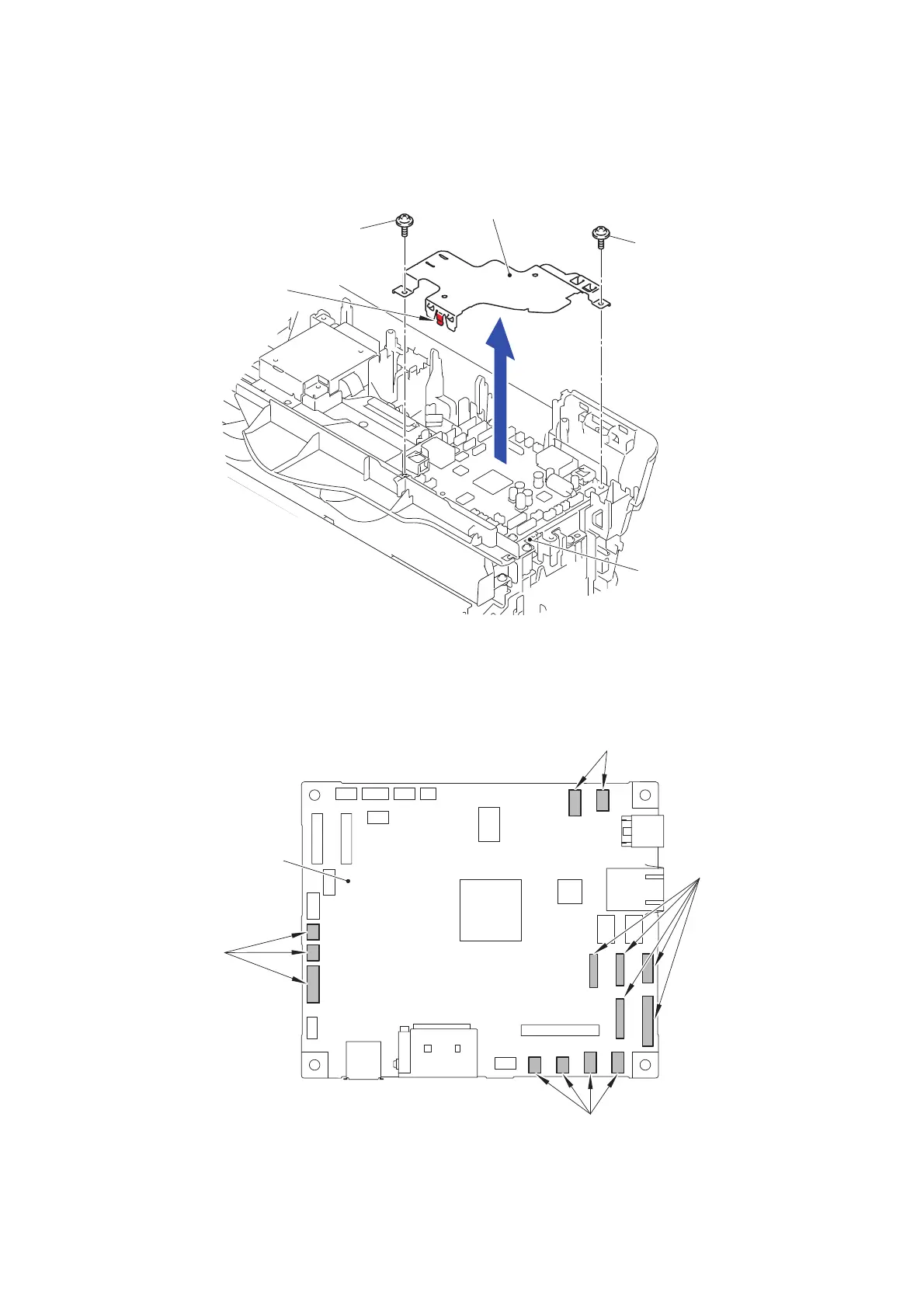

Fig. 3-102
(3) Disconnect the nine Connectors from the Main PCB ASSY.
(4) Disconnect the five Flat cables from the Main PCB ASSY.
Fig. 3-103
TAPTITE CUP S M3x6
TAPTITE CUP S M3x6
Main PCB shield
Hook
Main PCB frame
<Rear>
<Front>
Main PCB ASSY
Connectors
Flat cables
Connectors
Connectors
