9.58 Paper Ejection Roller and Platen

(1) Remove the Paper feed roller belt from the Frame base and Paper ejection roller.

Note: Be careful not to lose the Idle pulley.

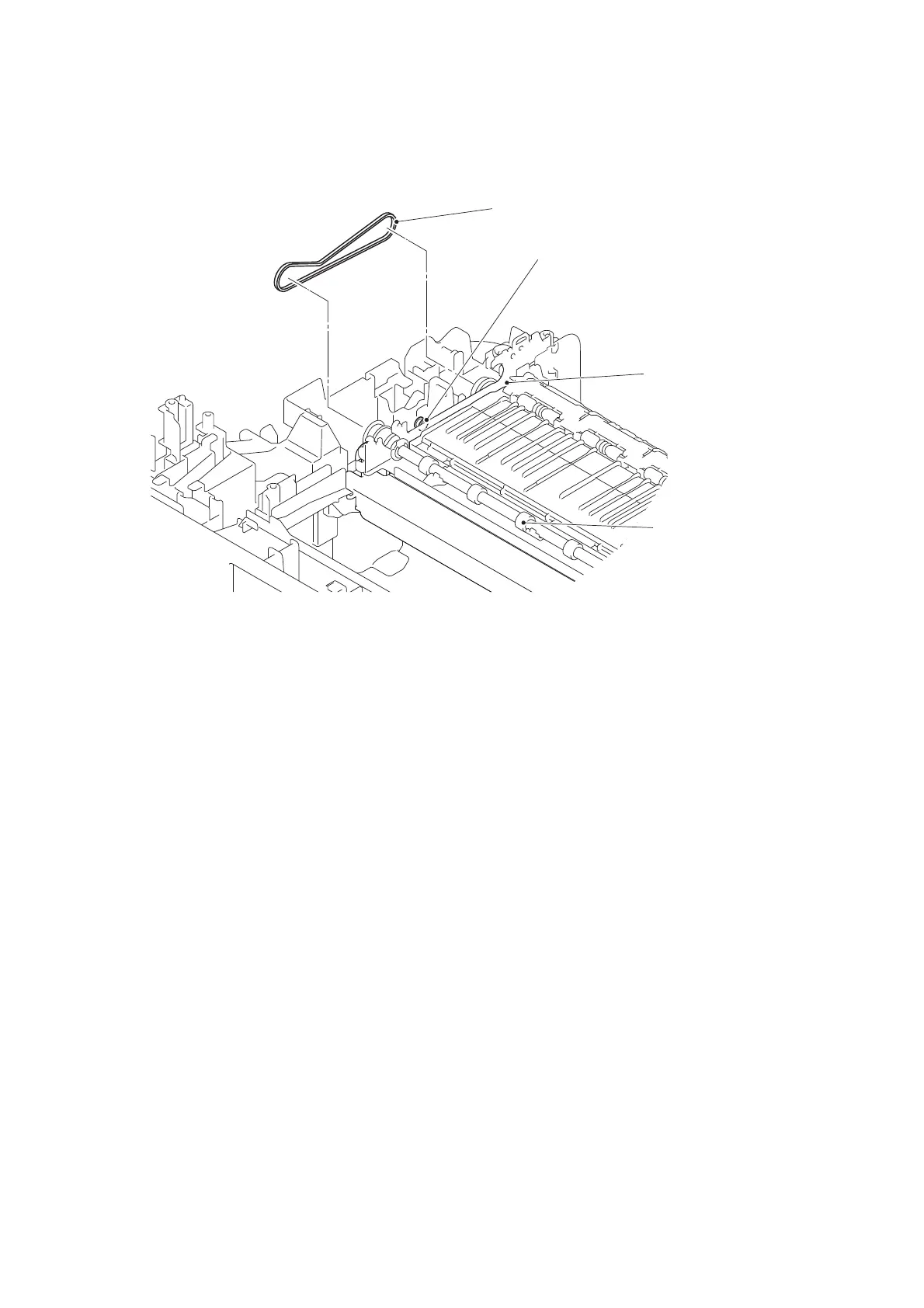

Fig. 3-140

Paper feed roller belt

Idle pulley

Frame base

Paper ejection roller

<Front>

<Rear>
