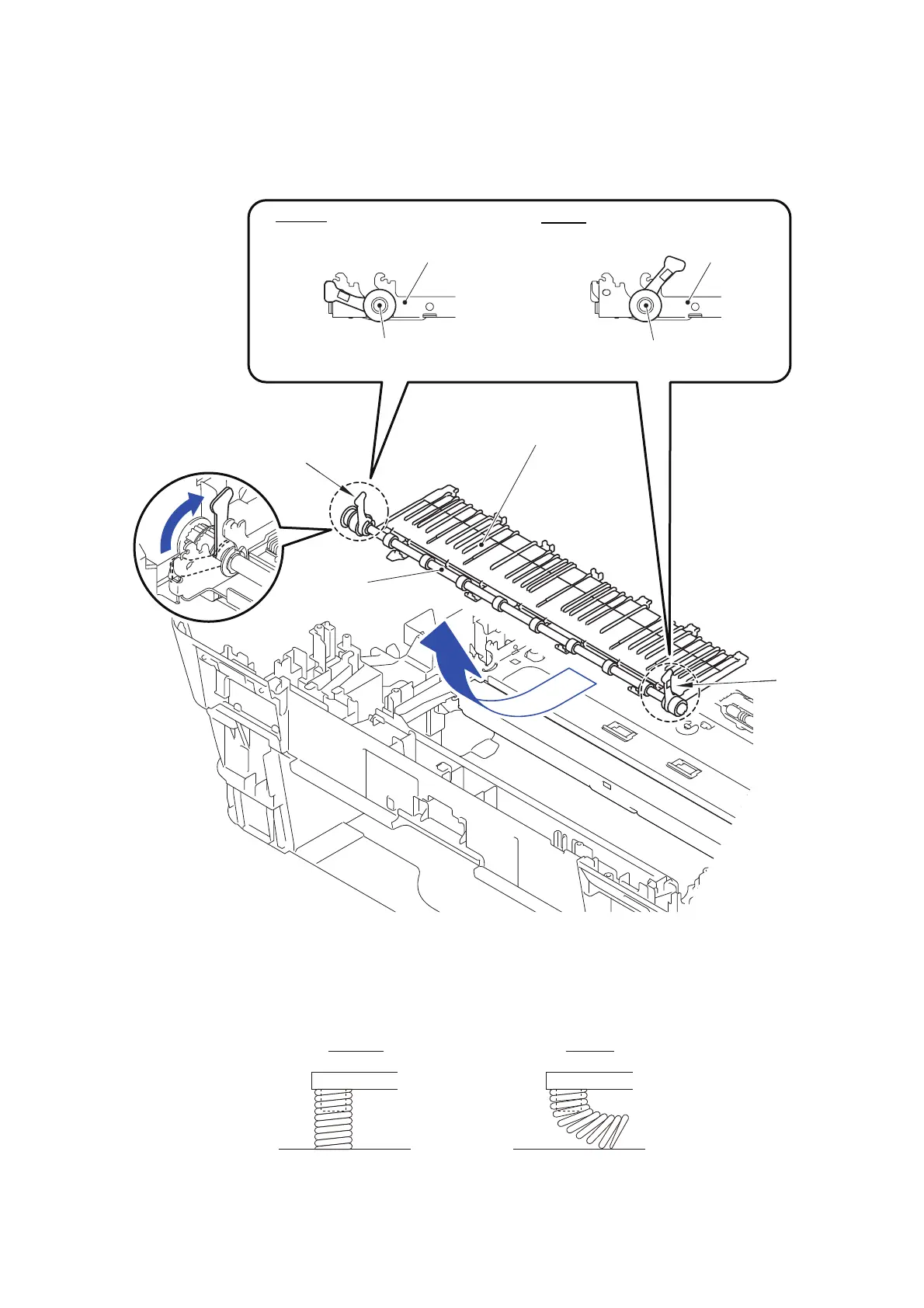

(2) Hold the section “A” and remove the Paper ejection roller and Platen.

Assembling Note: Mount the paper ejection roller with its bushing lever tilted forward

as shown below.

Fig. 3-141

Assembling Note: Platen springs should not be bent or turned over.

Fig. 3-142

“A”

Platen

Paper ejection

roller

Platen

Paper ejection roller

<Front>

<Rear>

Correct

Wrong

Correct
