Brother MFC-J3520 Service Manual

3-119
Confidential
(3) Release the four Hooks on the Platen and remove the Paper ejection roller from
the Platen.
(4) Remove the three Platen springs from the Platen.
Assembling Note:
The two Platen springs at the both ends may be mounted more inside
from the ones indicated in the illustration below depending on the model
and production year.
Mount them to the original positions.

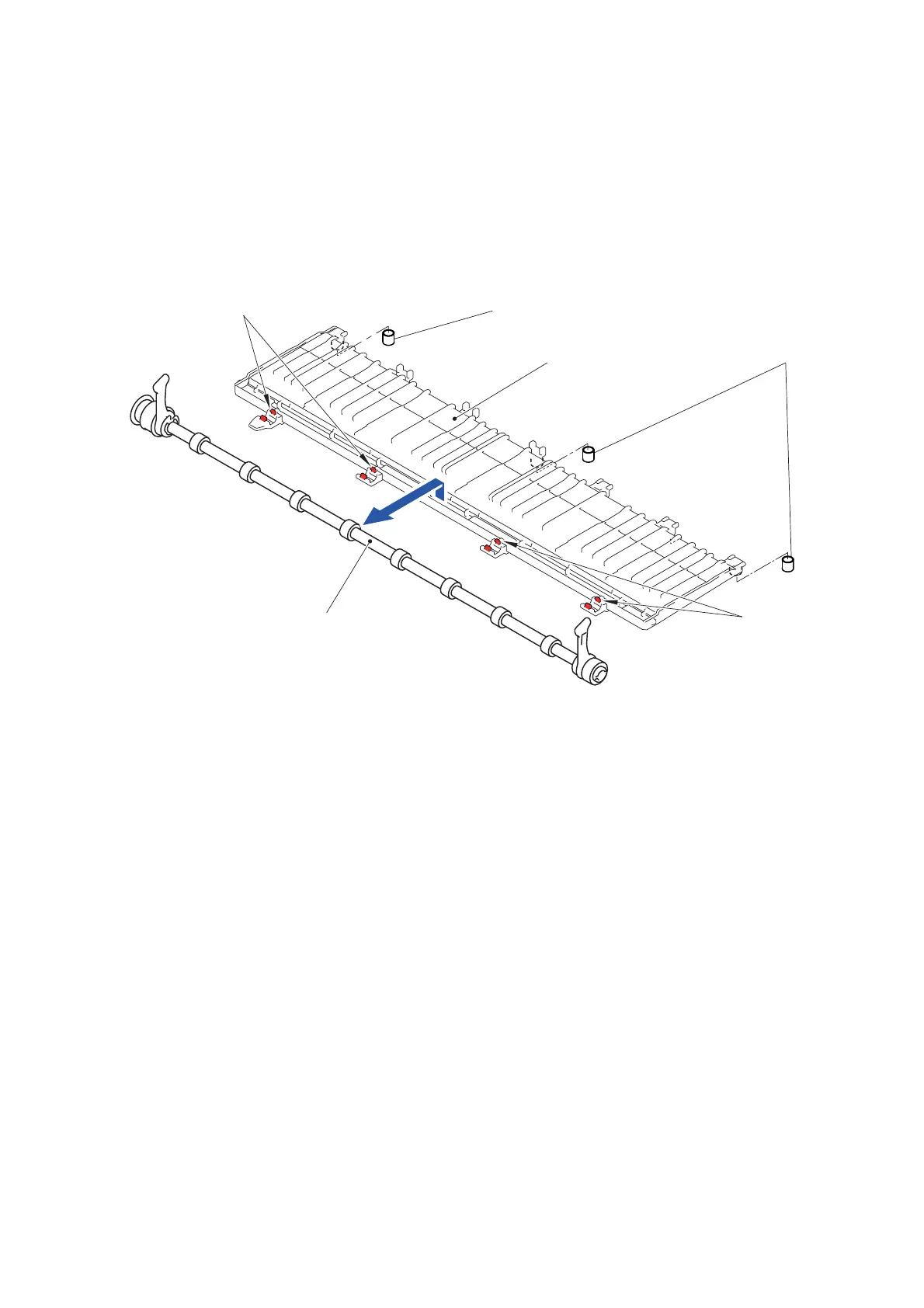

Fig. 3-143
Paper ejection roller
Hooks
Hooks
Platen spring
Platen spring
Platen

Brother MFC-J3520 Specifications

General

Print Technology	Inkjet
Duplex Printing	Yes
Fax Modem Speed	33.6 kbps
Functions	Print, Copy, Scan, Fax
Standard Paper Capacity	250 sheets
Mobile Printing	Yes
Max Print Resolution	6000 x 1200 dpi
Scanner Type	Flatbed + ADF
Max Scan Resolution	1200 x 2400 dpi
Connectivity	USB, Ethernet, Wi-Fi
Automatic Document Feeder (ADF)	Yes
Ink Cartridges	Black, Cyan, Magenta, Yellow
Print Speed (Black)	Up to 35 ppm (draft), 12 ppm (ISO)
Print Speed (Color)	27 ppm
Display	2.7" Touchscreen Color LCD
