Brother MFC-J3520 Service Manual

3-110
Confidential

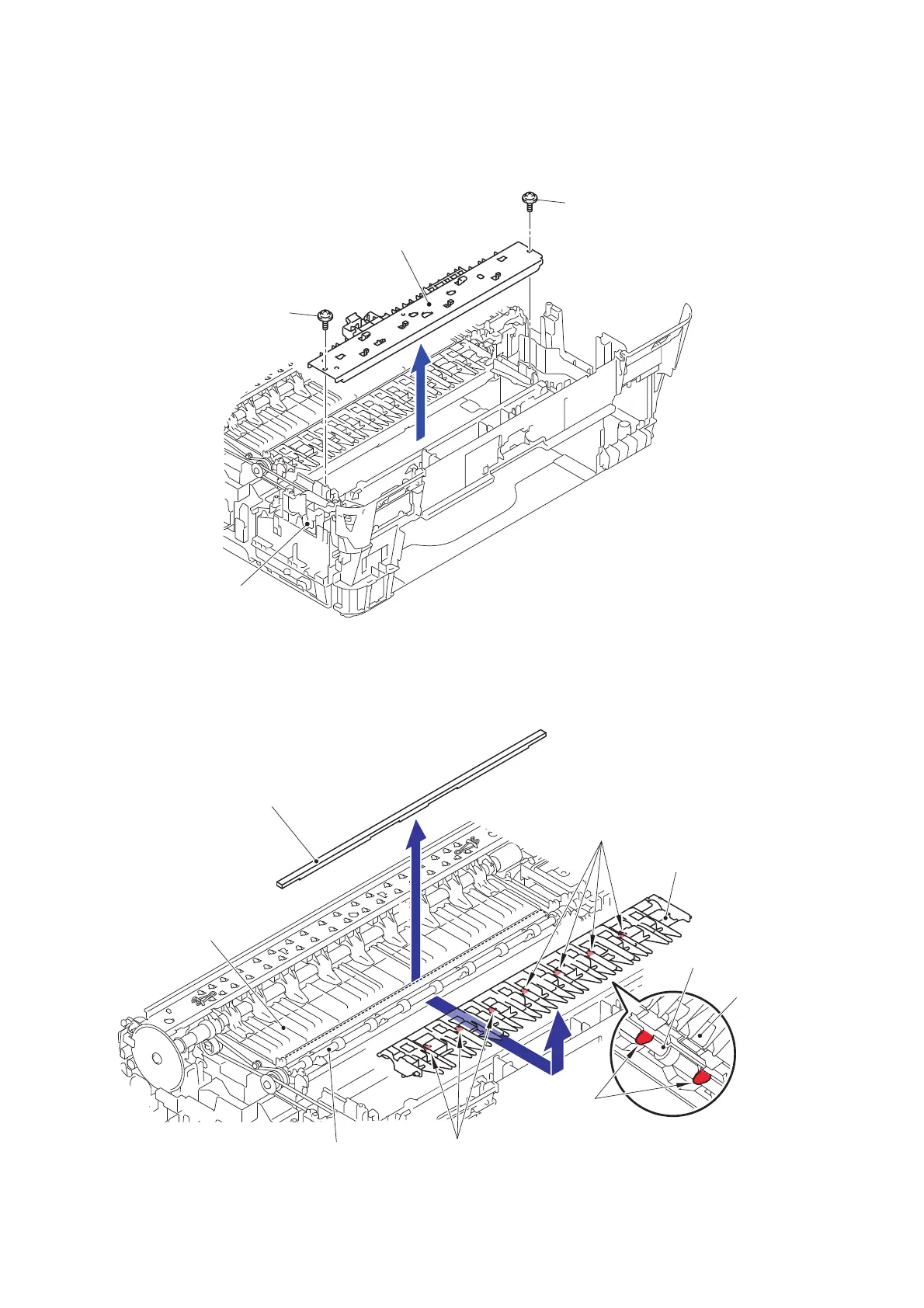

9.54 Platen Foam and Switchback Roller
(1) Remove the two screws (TAPTITE CUP B M3x12) and remove the Switchback
frame.
Fig. 3-128
(2) Release the seven Hooks and remove the Switchback inner paper guide from the
Paper ejection roller.
(3) Remove the Platen foam from the Platen.
Fig. 3-129
TAPTITE CUP B M3x12
TAPTITE CUP B M3x12
Switchback frame
Lower cover
Hooks
Platen foam
Platen
Paper ejection roller
Switchback
inner paper guide
2
3
Switchback
inner paper
guide
Hooks
Hooks
Paper ejection roller

Brother MFC-J3520 Specifications

General

Print Technology	Inkjet
Duplex Printing	Yes
Fax Modem Speed	33.6 kbps
Functions	Print, Copy, Scan, Fax
Standard Paper Capacity	250 sheets
Mobile Printing	Yes
Max Print Resolution	6000 x 1200 dpi
Scanner Type	Flatbed + ADF
Max Scan Resolution	1200 x 2400 dpi
Connectivity	USB, Ethernet, Wi-Fi
Automatic Document Feeder (ADF)	Yes
Ink Cartridges	Black, Cyan, Magenta, Yellow
Print Speed (Black)	Up to 35 ppm (draft), 12 ppm (ISO)
Print Speed (Color)	27 ppm
Display	2.7" Touchscreen Color LCD
