9.62 T1 Paper Pull-in Roller

(1) Remove the two screws (TAPTITE CUP B M3x10) and remove the DX chute.

Note: Be careful not to lose the Gear shown in the figure.

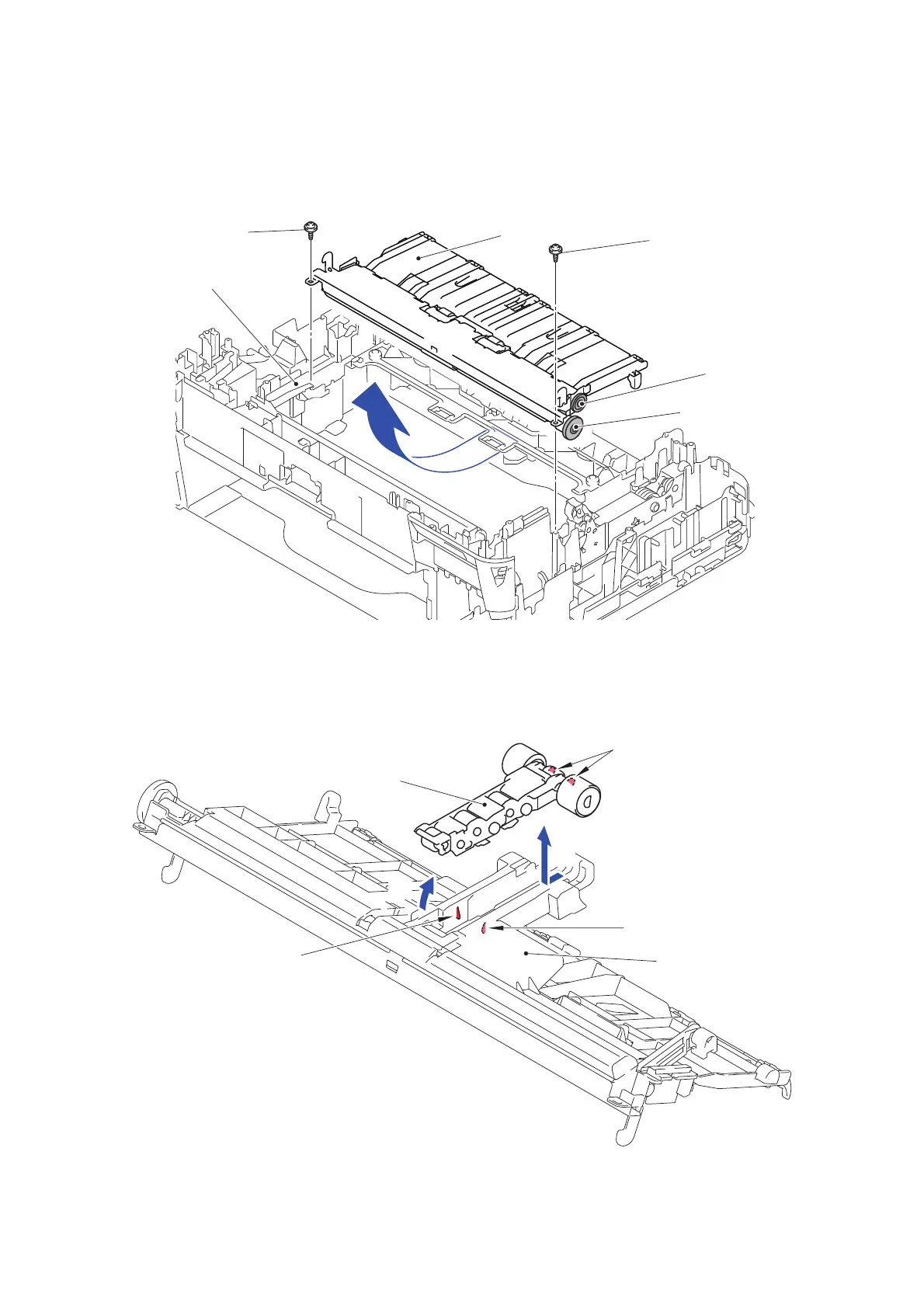

Fig. 3-151

(2) Release the four Hooks and remove the Paper pull-in roller holder from the DX chute.

Fig. 3-152

TAPTITE CUP B M3x10

DX chute

Gear

Lower cover

Gear

<Front>

<Rear>

Hooks

Paper pull-in roller holder

DX chute

Hook
