Brother MFC-J3520 Service Manual

3-96
Confidential

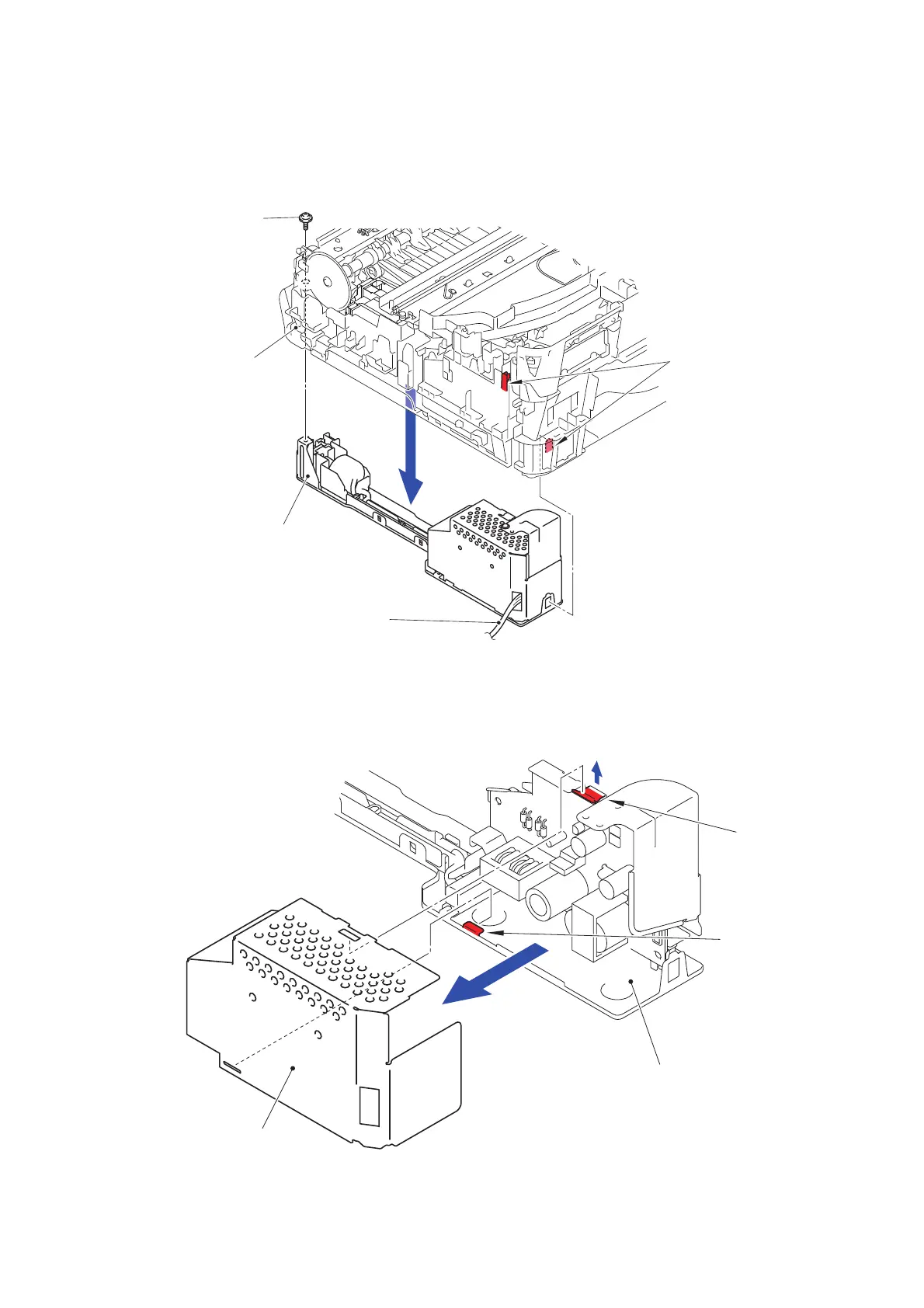

(5) Release the wiring of the Power supply harness.
(6) Remove the one screw (TAPTITE CUP S M3x8) from the Lower cover.
(7) Release the two Hooks on the Lower cover and remove the Lower power supply
frame from the Lower cover.
Fig. 3-111
(8) Release the two Hooks and remove the Power supply shield from the Lower power
supply frame.
Fig. 3-112
TAPTITE CUP S M3x8
Lower power supply frame
Hooks
Lower cover
Power supply harness
<Front>
<Rear>
Hook
Hook
Power supply shield
Lower power supply frame

Brother MFC-J3520 Specifications

General

Print Technology	Inkjet
Duplex Printing	Yes
Fax Modem Speed	33.6 kbps
Functions	Print, Copy, Scan, Fax
Standard Paper Capacity	250 sheets
Mobile Printing	Yes
Max Print Resolution	6000 x 1200 dpi
Scanner Type	Flatbed + ADF
Max Scan Resolution	1200 x 2400 dpi
Connectivity	USB, Ethernet, Wi-Fi
Automatic Document Feeder (ADF)	Yes
Ink Cartridges	Black, Cyan, Magenta, Yellow
Print Speed (Black)	Up to 35 ppm (draft), 12 ppm (ISO)
Print Speed (Color)	27 ppm
Display	2.7" Touchscreen Color LCD
