Brother MFC-J3520 Service Manual

3-123
Confidential
Assembling Note:
1) Assemble the Inner chute ASSY to the Frame base so that the actuator of the
Inner chute ASSY works correctly against the Registration sensor PCB ASSY of
the Frame base.
2) The state of the Assembling Note: 1) must be maintained when the DX paper guide
ASSY is assembled.

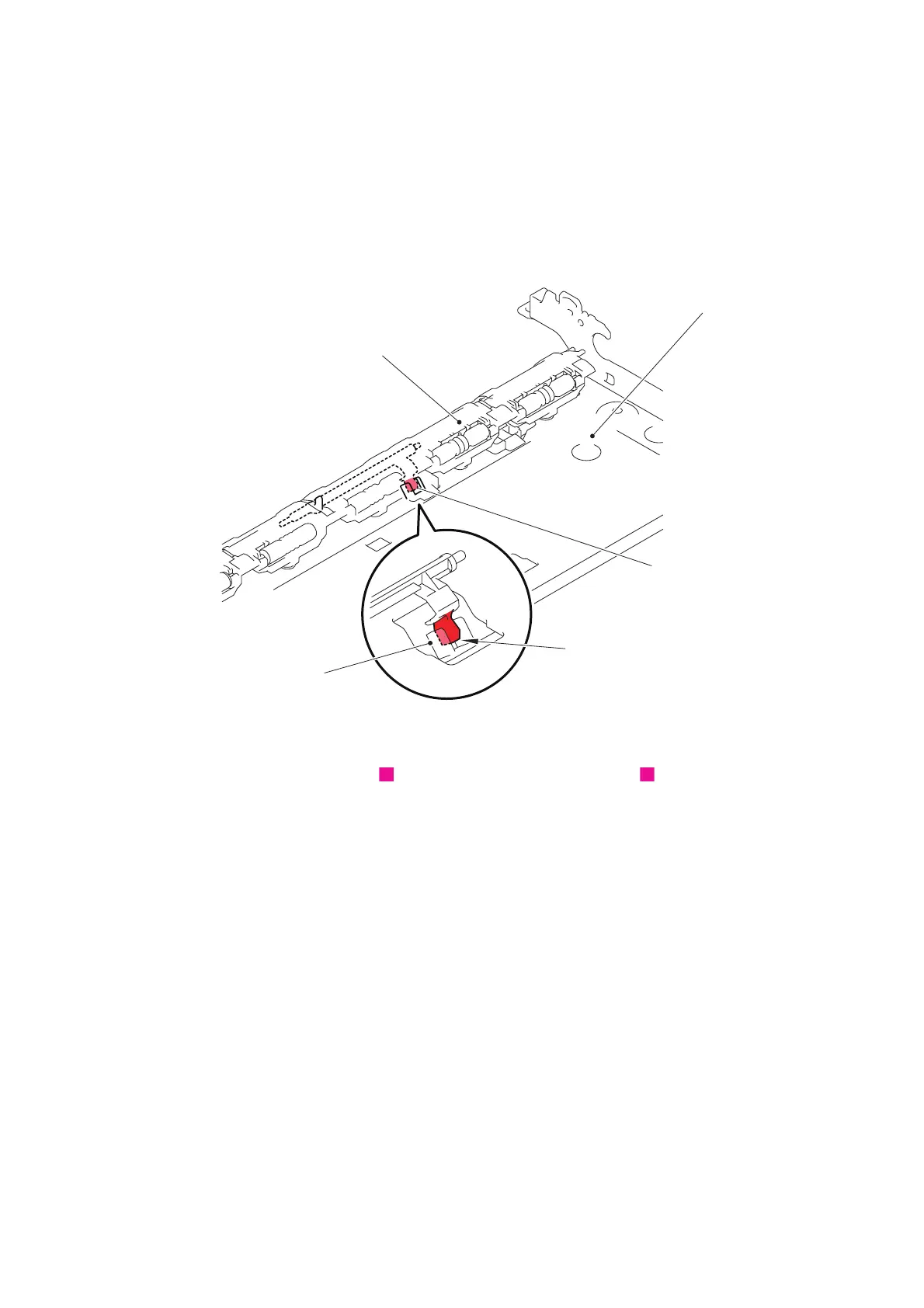

Fig. 3-148
Harness routing: Refer to " Registration sensor harness", " Lower cover (Right
side)"
Inner chute ASSY
Registration sensor PCB ASSY
Actuator
Actuator
Frame base
6 7

Brother MFC-J3520 Specifications

General

Print Technology	Inkjet
Duplex Printing	Yes
Fax Modem Speed	33.6 kbps
Functions	Print, Copy, Scan, Fax
Standard Paper Capacity	250 sheets
Mobile Printing	Yes
Max Print Resolution	6000 x 1200 dpi
Scanner Type	Flatbed + ADF
Max Scan Resolution	1200 x 2400 dpi
Connectivity	USB, Ethernet, Wi-Fi
Automatic Document Feeder (ADF)	Yes
Ink Cartridges	Black, Cyan, Magenta, Yellow
Print Speed (Black)	Up to 35 ppm (draft), 12 ppm (ISO)
Print Speed (Color)	27 ppm
Display	2.7" Touchscreen Color LCD
