3.17 MP Unit (MFC-8840D/8840DN, DCP-8045D/8045DN only)
(1) Disconnect the two connectors.
(2) Remove the MP ground spring.
(3) Remove the bind B M3x8 Taptite screw and cup S M3x6 Taptite screw.
(4) Remove the MP solenoid holder unit.

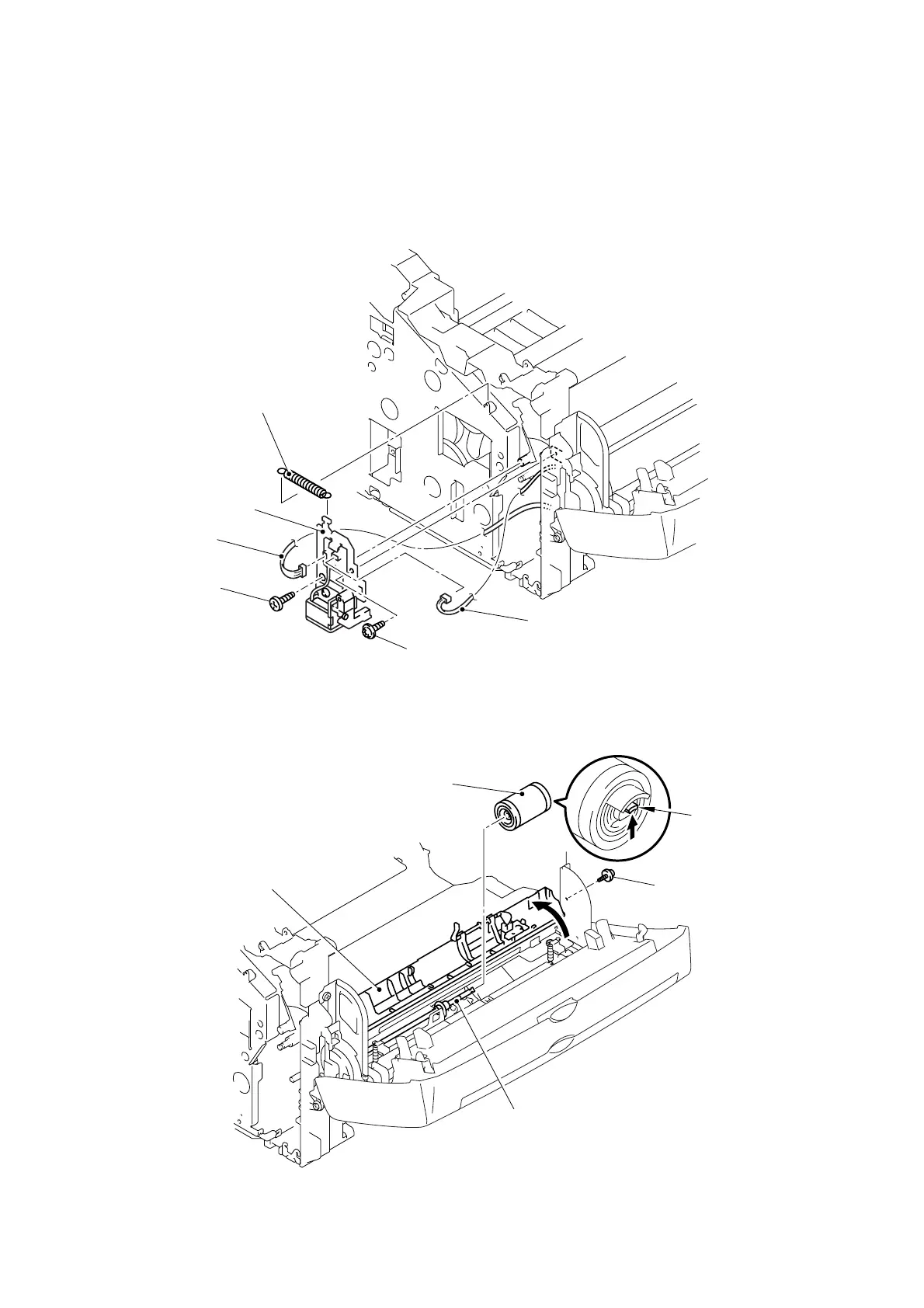

Fig. 4-81
(5) Remove the cup S M3x6 Taptite screw, and then open the MP chute ASSY cover.
(6) Remove the paper pick-up roller ASSY from the shaft.
Fig. 4-82
MP ground spring
Paper pick-up roller ASSY
Taptite, cup S M3x6
MP chute ASSY cover
MP sensor harness
Hook
Shaft
Engine PCB
connector
Taptite, bind B
M3x8
MP solenoid holder unit
Taptite, cup S M3x6
