MFC-8440/8840D/8840DN, DCP-8040/8045D/8045DN
SERVICE MANUAL
A-69
APPENDIX 5 LOCATION TO ATTACH THE ADDITIONAL RIBS
The additional ribs are recommended to attach in order to prevent a damage towards ribs of
the Joint cover ASSY ZL2E caused by printing with the particular kind of paper. With the
additional ribs, it prevents paper jams when the particular kind of paper ejects as well. There
are 2 types of ribs; Top cover rib and Top cover rib2. It is necessary to be careful about the

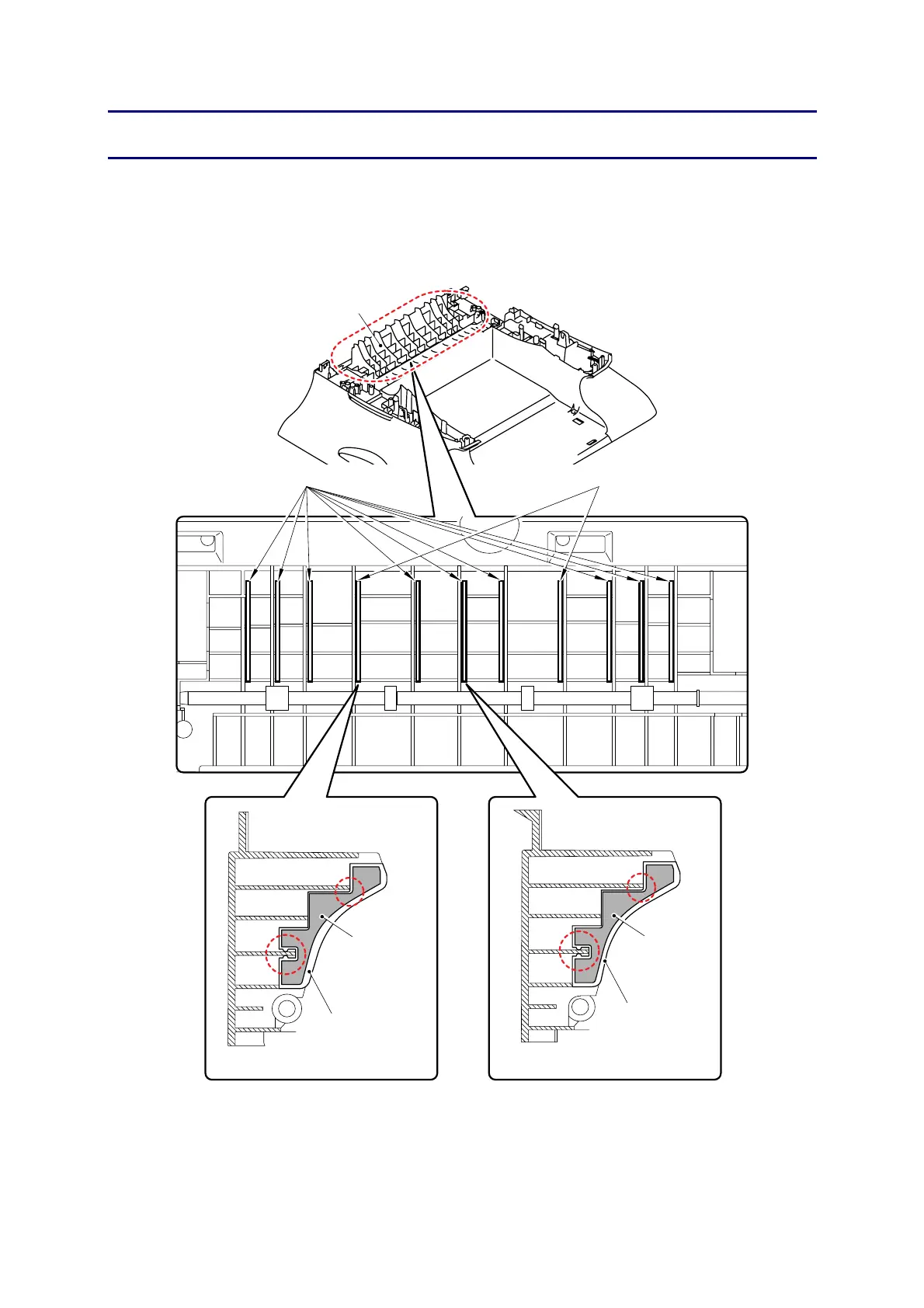

two sides of location to attach the additional ribs properly as the figure below.
NOTE:
Pay attention to the location circled by red color dotted line to attach the additional ribs against
the ribs of the Joint cover ASSY ZL2E.
Joint cover ASSY ZL2E
Top cover rib
Top cover rib2
Top cover rib2
Top cover rib
A
dhesive tape
A
dhesive tape
