3.20 Fixing Unit
(1) Disconnect the heater harness and thermistor harness.
(2) Remove the bind B M4x12 Taptite screw and the shoulder screw, and then remove the
fixing unit.

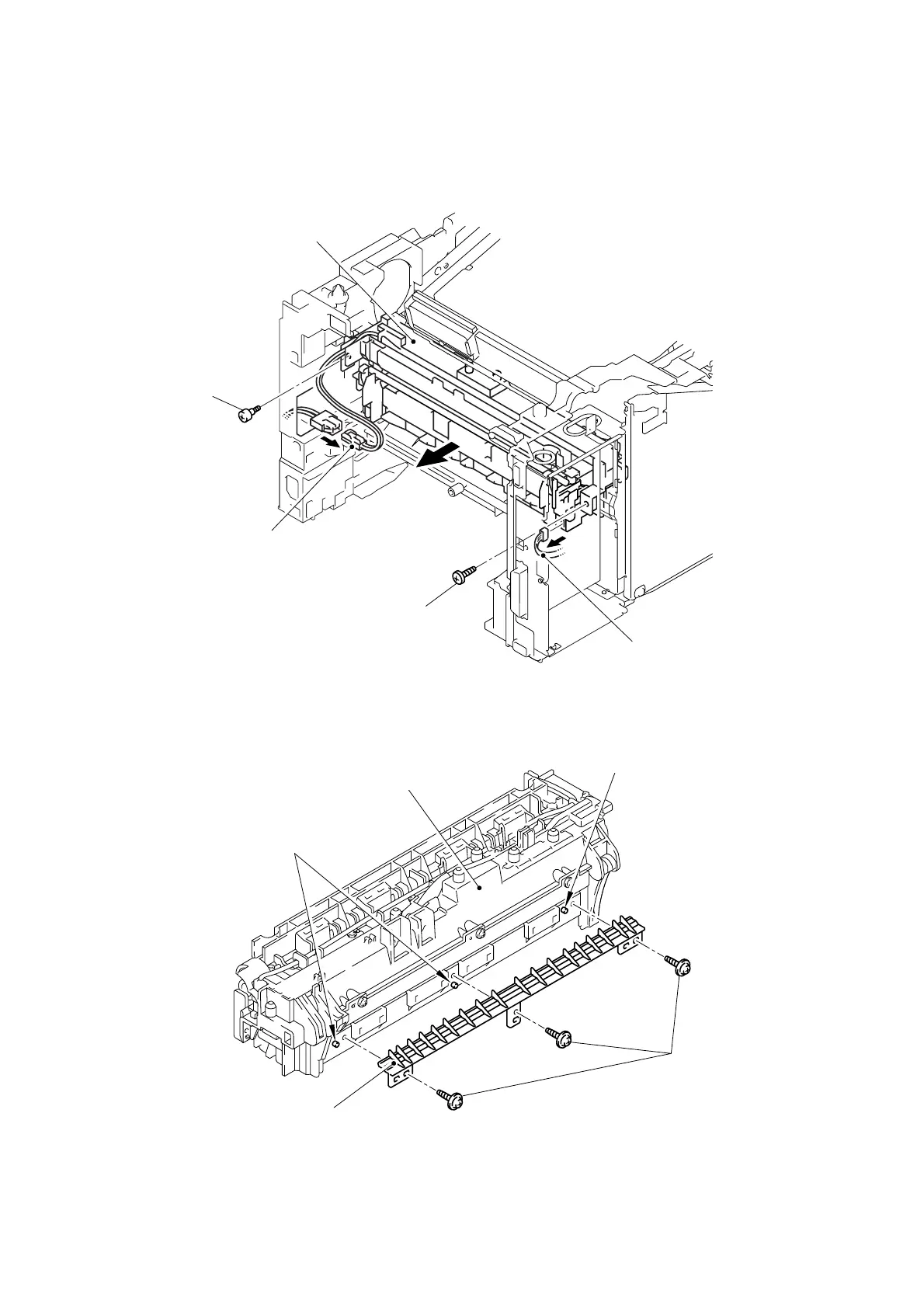

Fig. 4-95
(3) Remove the three cup B M3x10 Taptite screws, and then remove the FU paper guide.
Fig. 4-96
Pin
Pins
FU paper guide
Taptite, cup B M3x10
Fixing unit
Fixing unit
Thermistor harness
Heater harness
Taptite, bind B M4x12
Shoulder screw
