CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
4-14

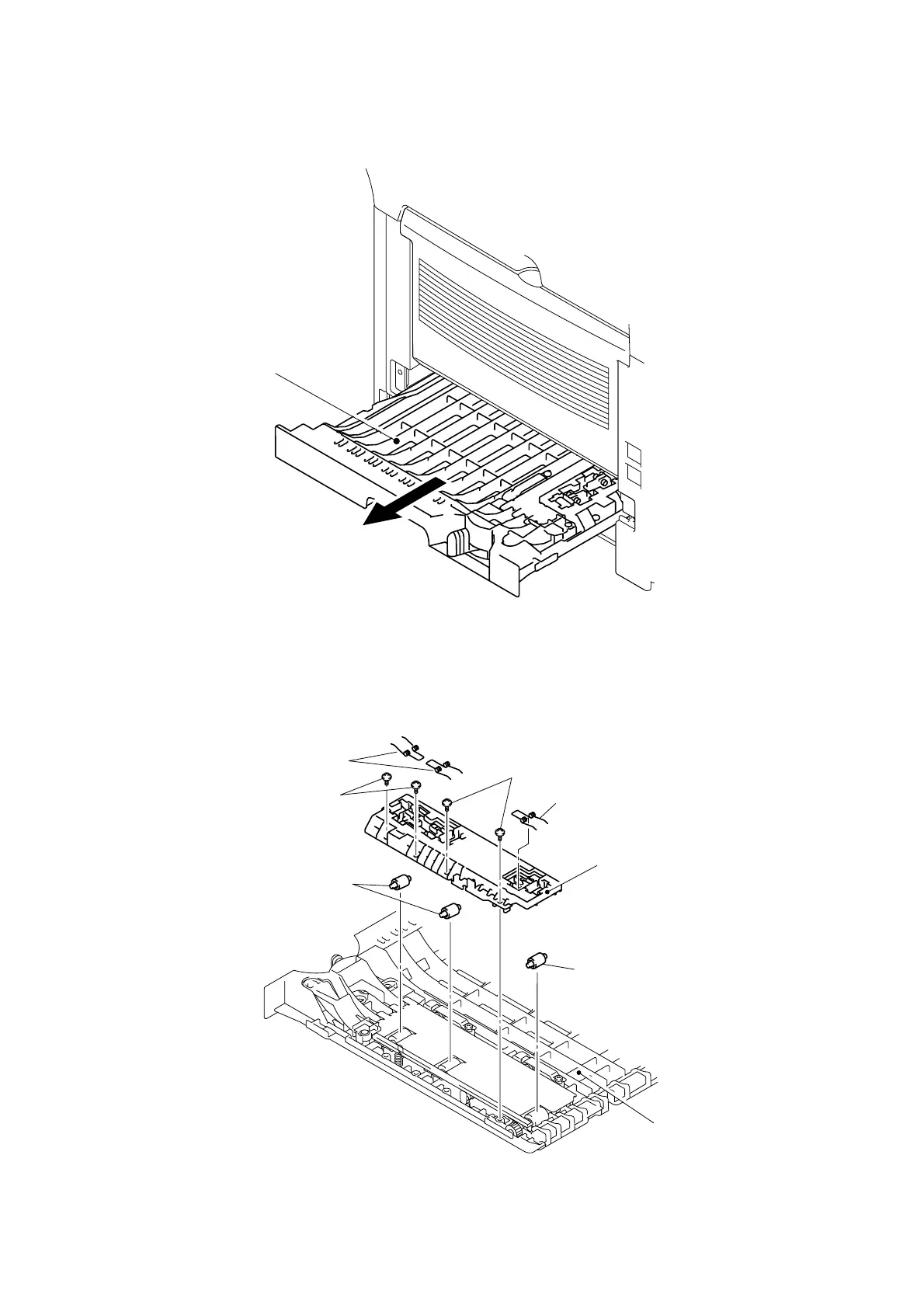

3.4 DX Feed ASSY (MFC-8840D/8840DN, DCP-8045D/8045DN only)
(1) Remove the DX feed ASSY.
Fig. 4-21
(2) Remove the four bind B M3x8 Taptite screws, and then remove the DX roller holder and
three pressure rollers.
(3) Remove the three pressure roller springs.
Fig. 4-22
DX feed ASSY
Tray feed ZL2
Pressure roller
Pressure roller spring
Taptite, bind B M3x8
Taptite, bind B M3x8
Pressure rollers
Pressure roller springs
DX roller holder
