CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
4-70
3.26 High-voltage PS PCB ASSY
(1) Remove the bind B M4x12 Taptite screw, and then remove the high-voltage PS PCB
ASSY.
(2) Disconnect the flat cable from the high-voltage PS PCB ASSY.
NOTE:
• After disconnecting flat cable(s), check that each cable is not damaged at its end or
short-circuited.
• When connecting flat cable(s), do not insert them at an angle. After insertion, check
that the cables are not at an angle.

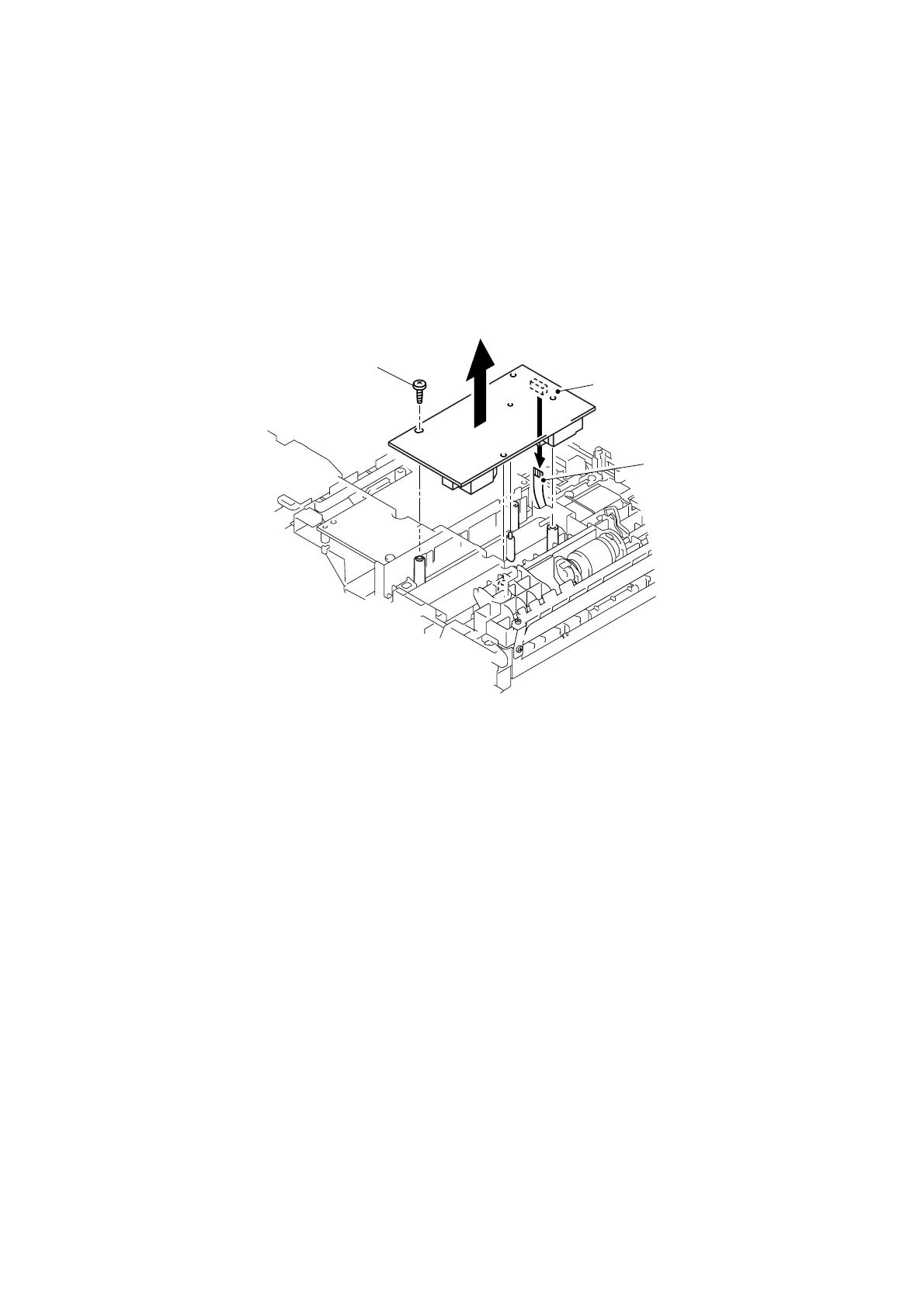

Fig. 4-123
Taptite, bind B M4x12
Flat cable
High-voltage PS PCB ASSY
