MFC-8440/8840D/8840DN, DCP-8040/8045D/8045DN
SERVICE MANUAL
4-15
NOTE:
Set pressure roller, and assemble pressure roller spring after assembling DX roller holder.

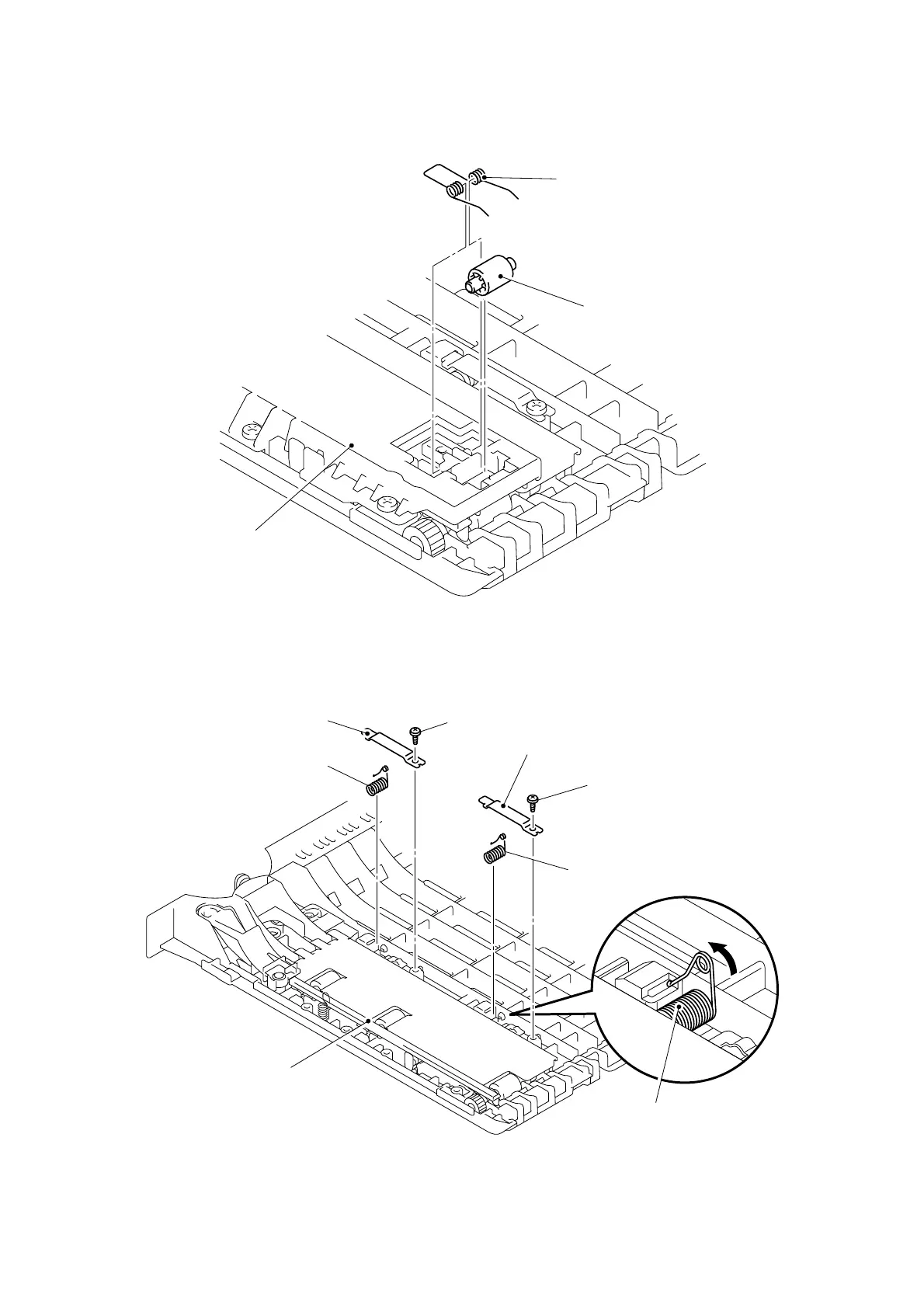

Fig. 4-23
(4) Remove the two bind B M3x8 Taptite screws, and then remove the guide plate stopper.
(5) Remove the two left guide spring 2.
Fig. 4-24
Left guide spring 2
Taptite, bind B M3x8
Taptite, bind B M3x8
Guide plate stopper
Guide plate stopper
Left guide spring 2
Left guide spring 2
Tray feed ZL2
Tray feed ZL2
Pressure roller
Pressure roller spring
