CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
4-16

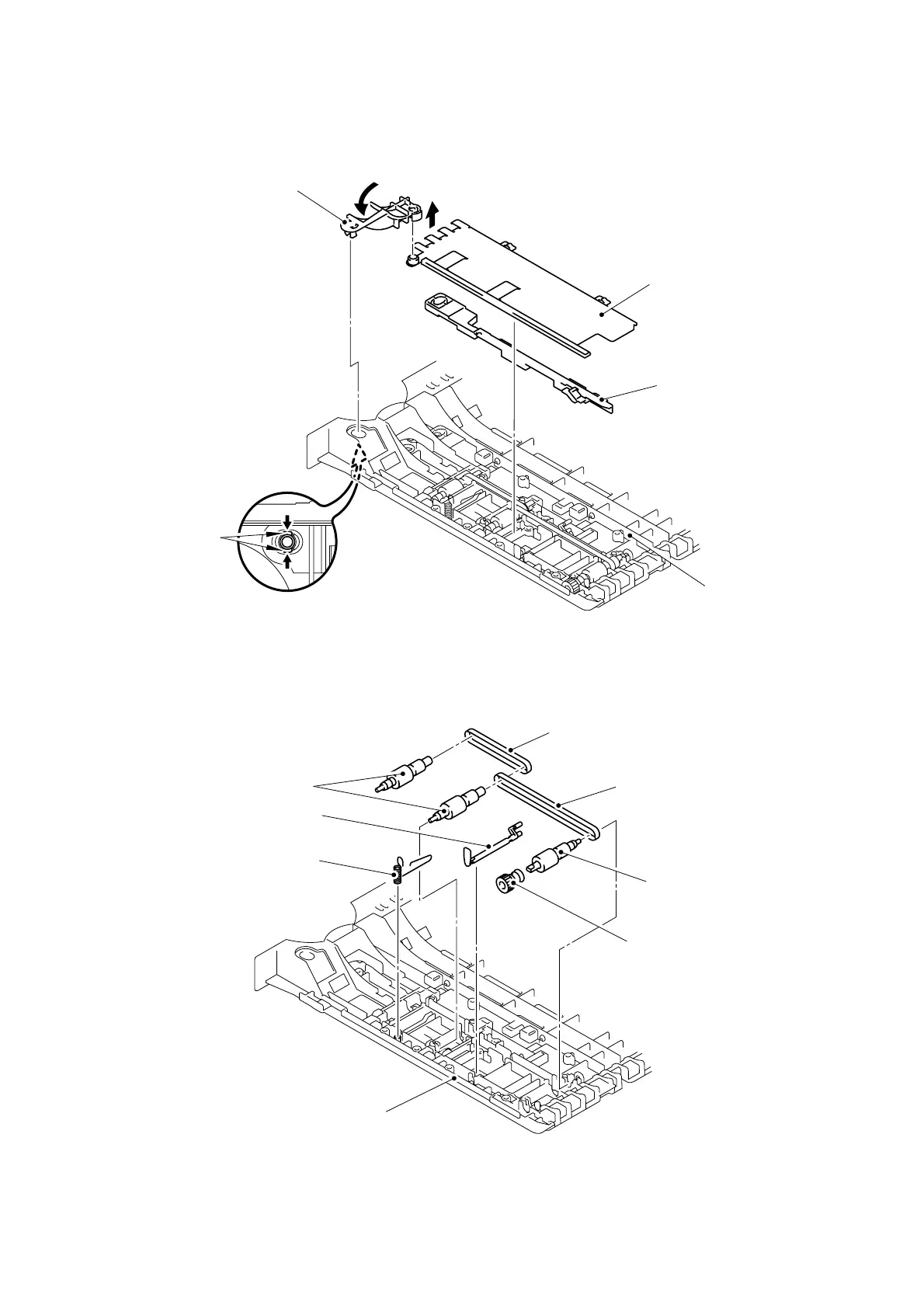

(6) Remove the side regist guide.
(7) Remove the left guide plate ASSY and DX paper switch pull arm.
Fig. 4-25
(8) Remove the DX feed roller, drive gear 14, two side regist rollers, T-belt (S) and ground
wire.
(9) Remove the guide actuator and T-belt (L).
Fig. 4-26
Tray feed ZL2
DX paper switch pull arm
Left guide plate ASSY
Side regist guide
DX feed roller
T-belt (S)
T-belt (L)
Drive gear 14
Tray feed ZL2
Hooks
1
2
3
Guide actuator
Ground wire
Side regist rollers
