NOTE:

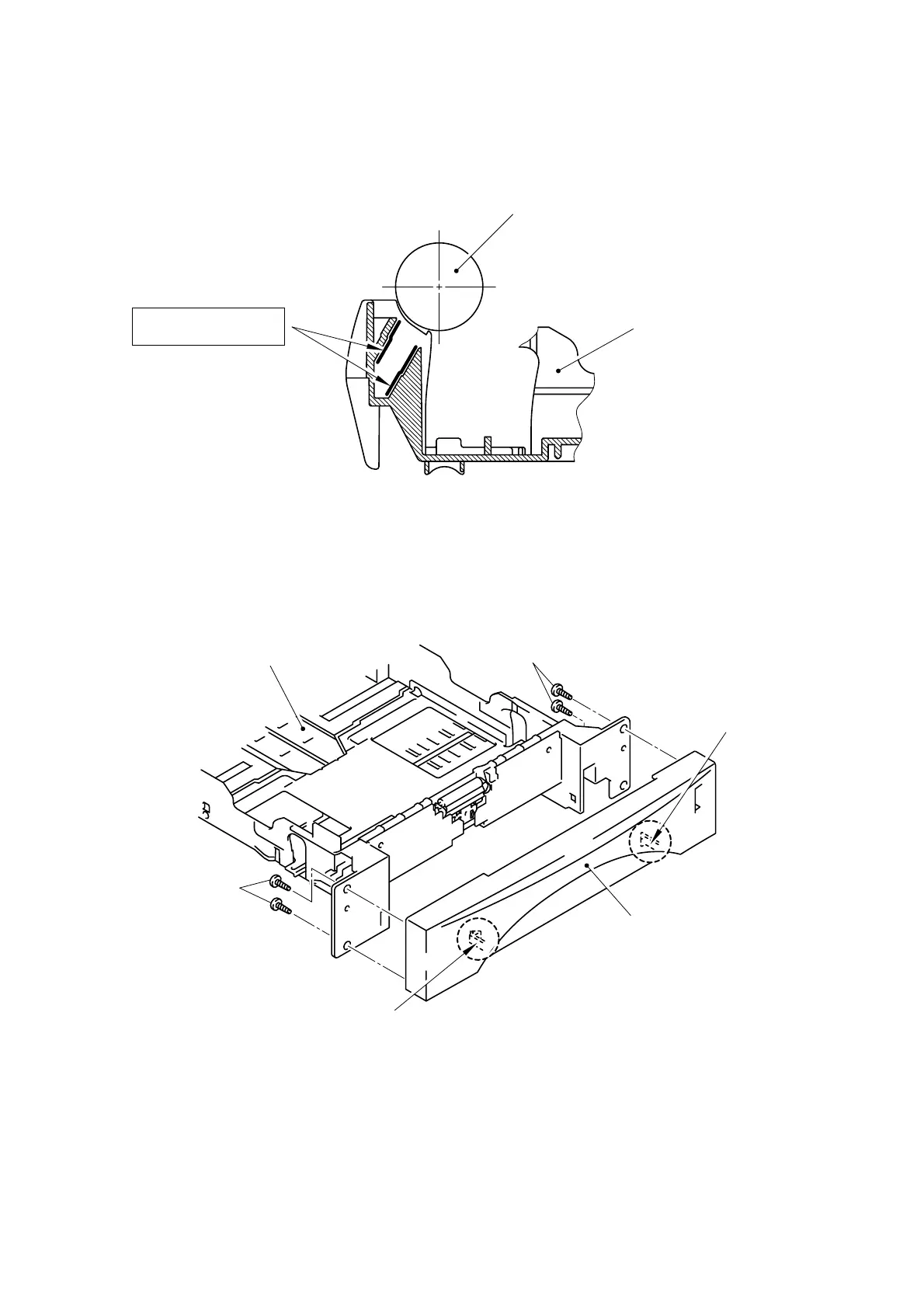

When replacing/re-assembling the pad holder ZL2 ASSY, remove the old grease and apply a
suitable amount of grease referring to the figure below;
Fig. 4-5
(4) Remove the four bind B M4x12 Taptite screws, and then remove the paper tray front
cover.
Fig. 4-6
Paper tray
Paper pick-up roller
Grease: Molykote PG-662
(4 mm dia.ball)
Taptite, bind B M4x12
Taptite, bind B
M4x12
Paper tray front cover
Paper tray
Hook
Hook
