BRP ROTAX 912 Series - Page 162

BRP-Rotax
MAINTENANCE MANUAL LINE

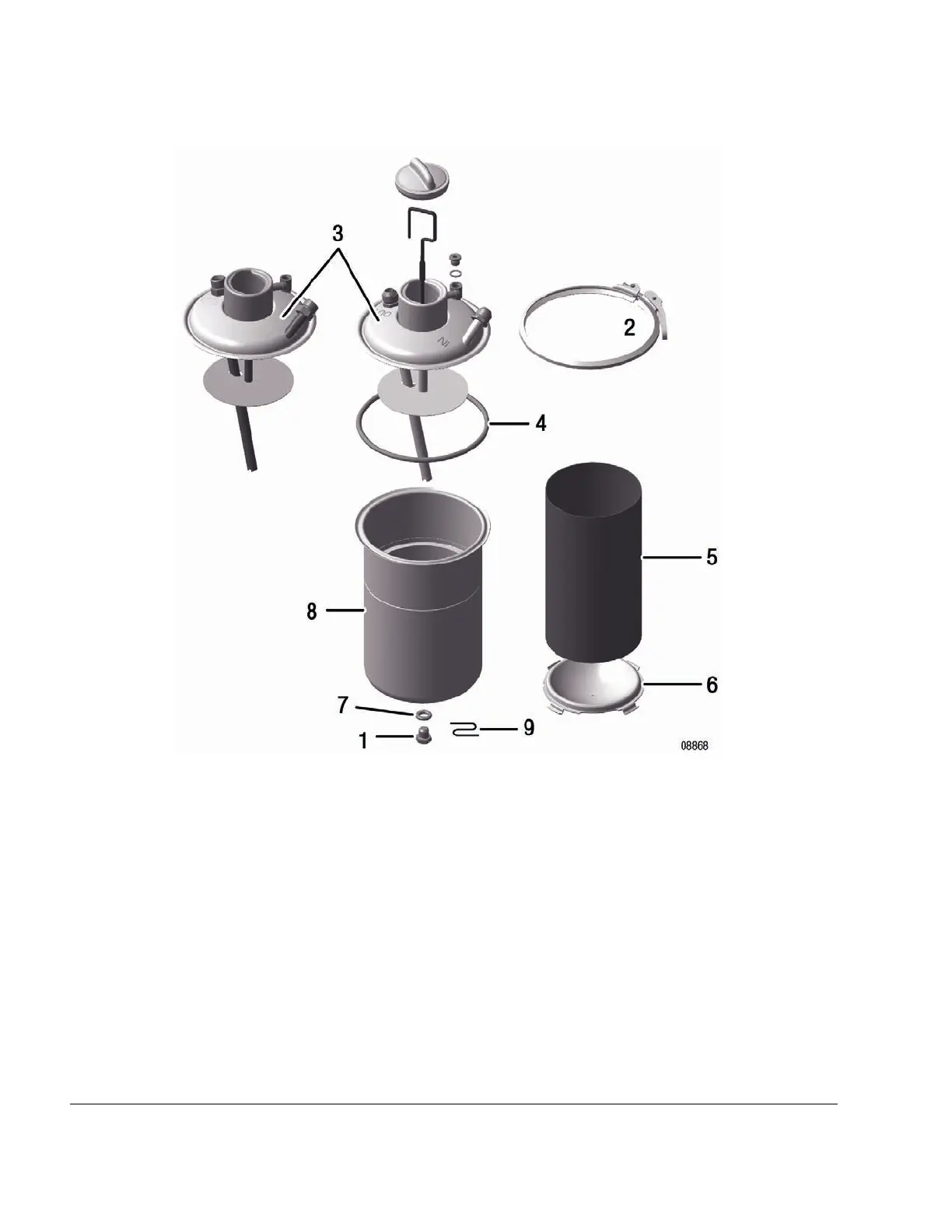

Figure 7.29: Oil tank
1 Hex. screw M12x12 2
Profile clamp
3
Oil tank cover assy. Metric/ AN
4
O-ring
5
Baffle insert (screen)
6 Partition
7
Gasket ring 12x18
8 Oil tank
9
Safety wire
12–20–00
Page 50
January 01 2020
Effectivity: 912 Series
Rev. 0
