PULSE Multi-analyzer System Type 3560-B/C/D/E – Installation and IDAe Hardware104
9.1.2 15 dBi Omnidirectional Antenna Assembly

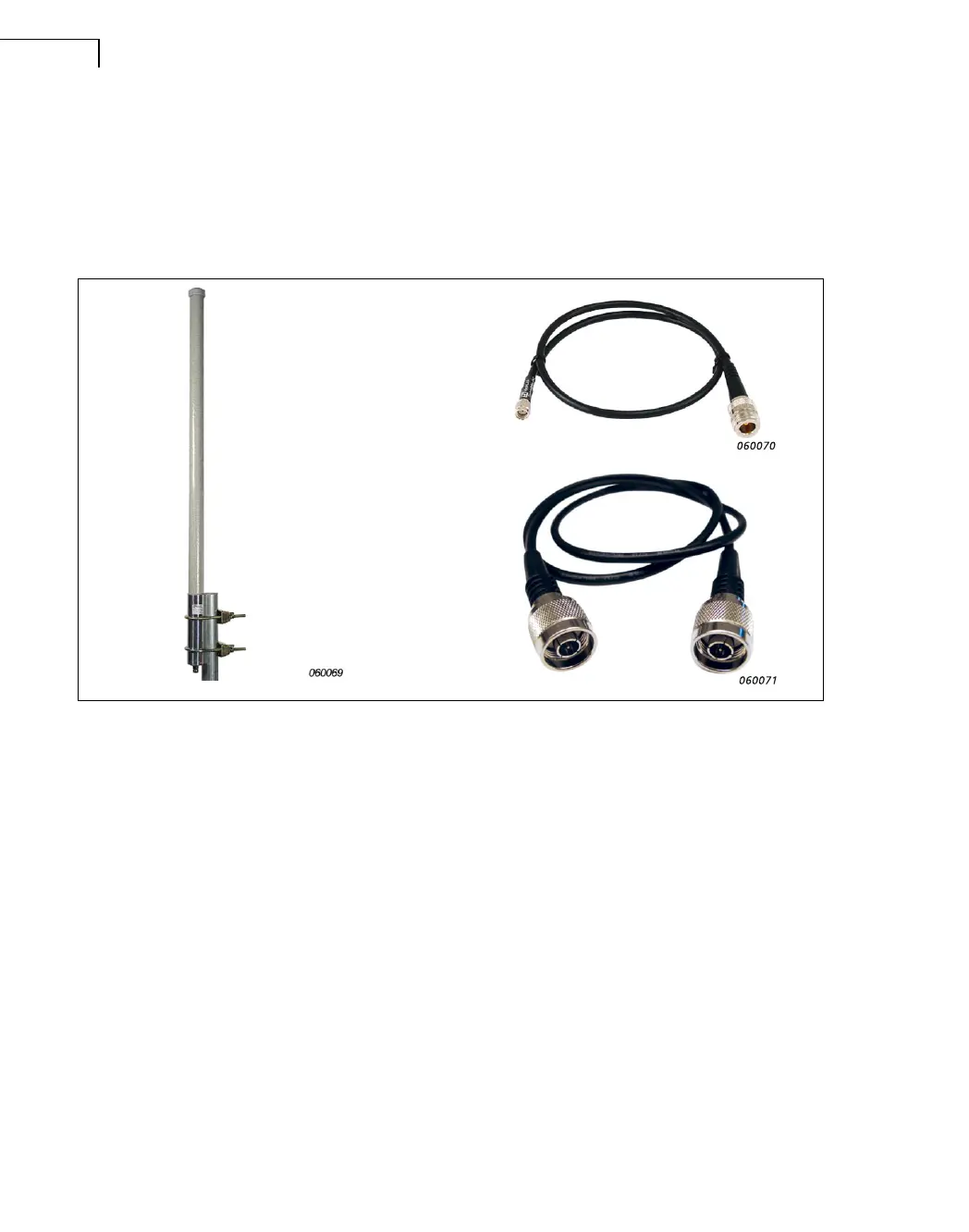

Fig.9.2 Left: UL-0231: 15 dBi Professional Omni Antenna; (Order no. HG2415U-PRO)
Top right: UL-0234: Pigtail-cable for Linksys WET54, RPSMA to N-Type Female. Length:
0.5 m (2 feet); (Order no.: CA-RSPNFA002)
Bottom Right: UL-0233: N-type male Cable Length: 3 m (10 feet); (Order no.: CA2N010);
Cable Attenuation at 2.5 GHz: 16.9 dB/100 ft.
Parts are available from www.hyperlinktech.com
