PULSE Multi-analyzer System Type 3560-B/C/D/E – Installation and IDAe Hardware34
Using the Connect Option with Multiple Frames
If you wanted to connect to an existing configuration and selected the Connect button on
the PULSE Front-end Setup page (see Fig.2.6), the next page would be the Multiple Frame
Setup page. To test a frame’s connection, click Next. A connection attempt will be made
with the Front-end Configuration Check utility. When the connection succeeds you will
return to the Multiple Frame Setup page, you can then check each additional frame in turn
by clicking Next.

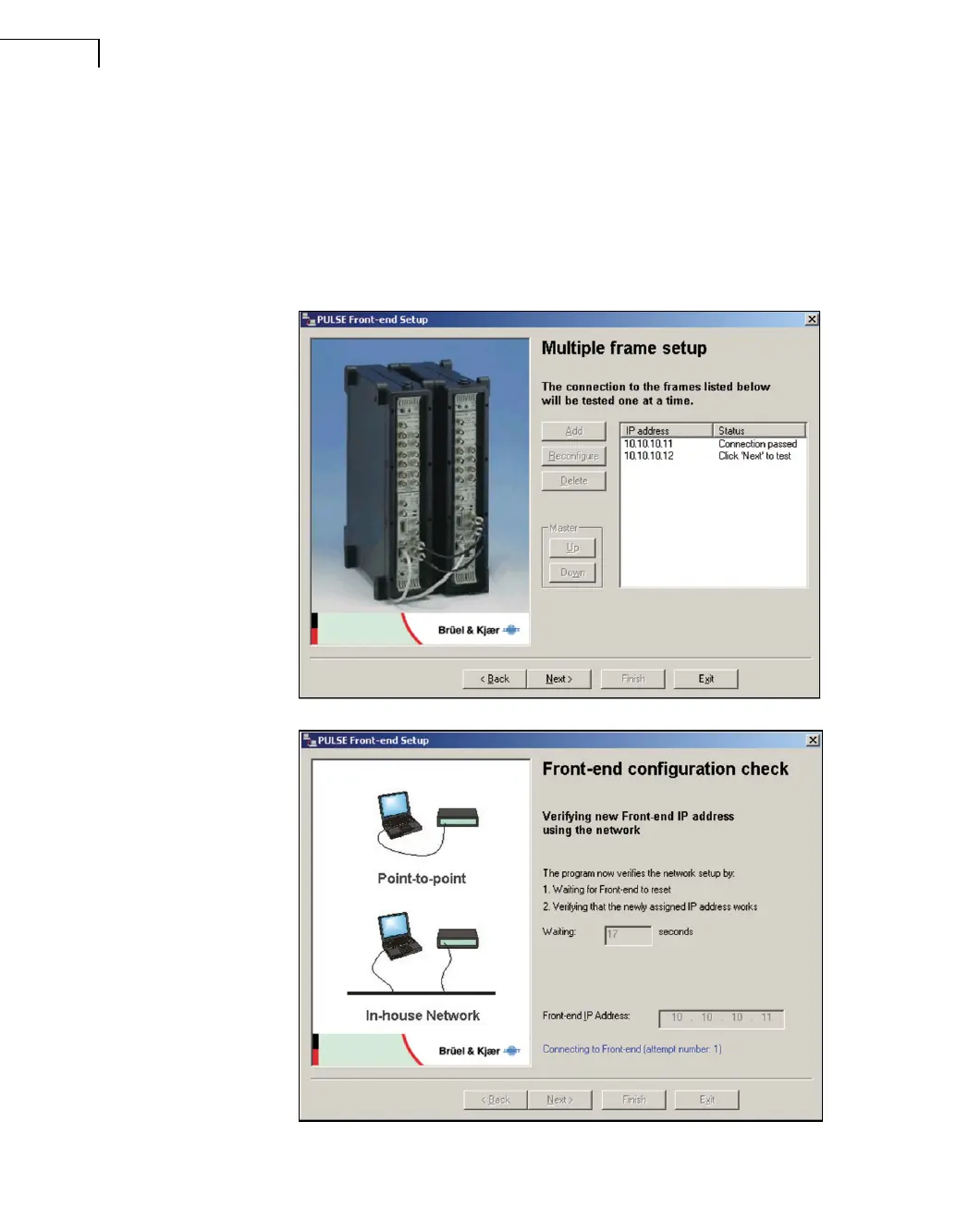

Fig.2.29
Testing with the Connect
option
Fig.2.30
Connection attempt
