Technical data
and start-up
BDC546
18

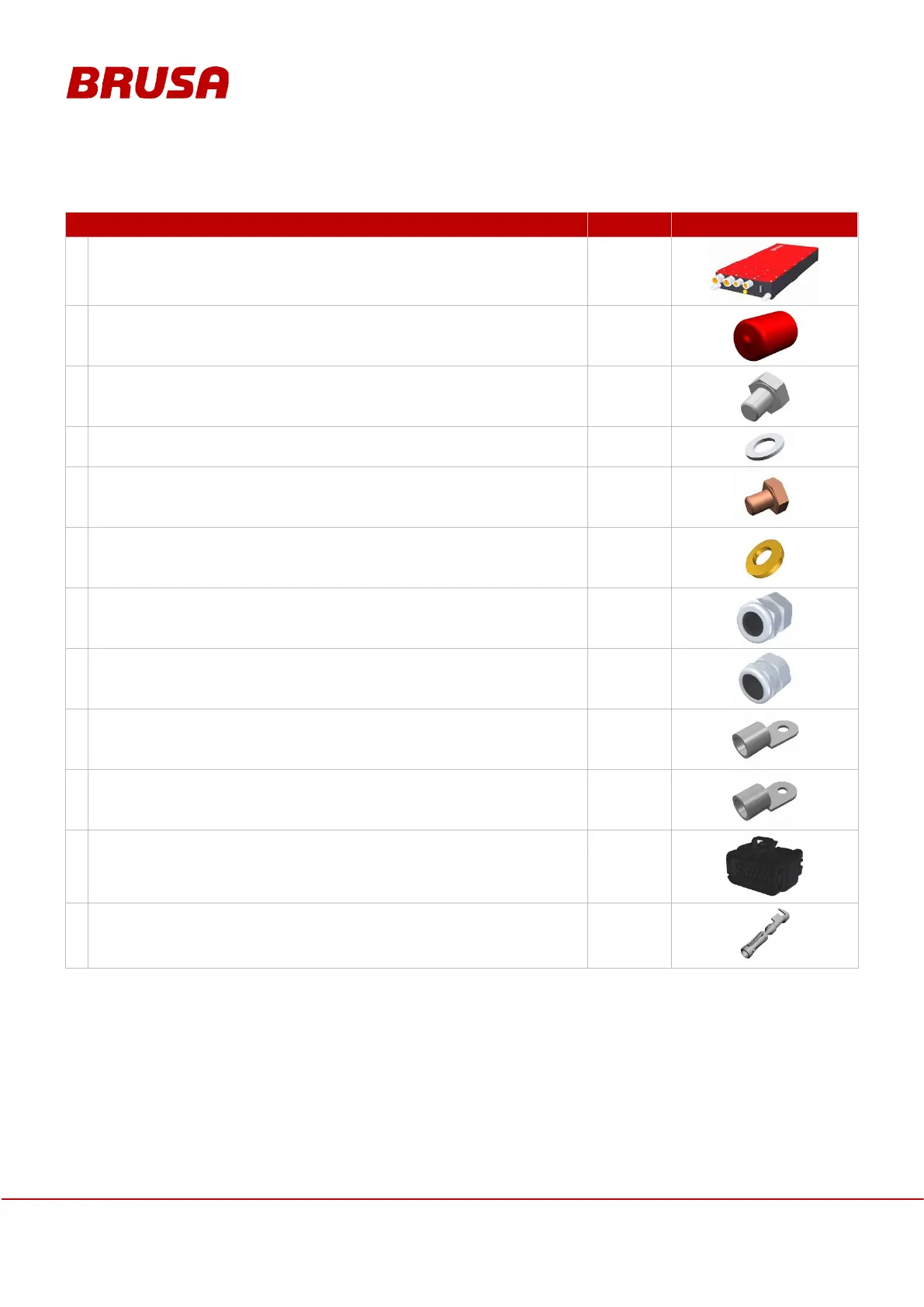

4.3 Scope of delivery
MEANING
QUANTITY
ILLUSTRATION
1.
BDC546-B
1
2.
Protective cap for cooling water connection pieces
2
3.
M8 x 16 screws for the cable lugs
4
4.
M8 washer for M8 x 16 screws
4
5.
M10 x 16 hexagonal screw
(ground GND)
1
6.
M10 washer for M10 x 16 screws
(ground GND)
1
7.
M25 cable fittings
Pflitsch prod. no. 22554e-1814
2
8.
M32 cable fittings
Pflitsch prod. no. 23255e-2520
2
9.
crimp type cable lug, flat (HS), 70 mm²
Ferratec AG / Klauke 16578
2
10.
crimp type cable lug, flat (LS), 95 mm²
Ferratec AG / Klauke 16588
2
11.
23-pole control connector with crimp contacts *
AMPSEAL 770680-1
1
12.
SN/LP contacts
AMPSEAL 770854-1
for wire diameter: 0.5 mm²
28
* customer side connector
