Brusa BDC546 - Pin 17 DO_MC

43
Technical data
and start-up
BDC546
7.1.8 Pin 17 DO_MC

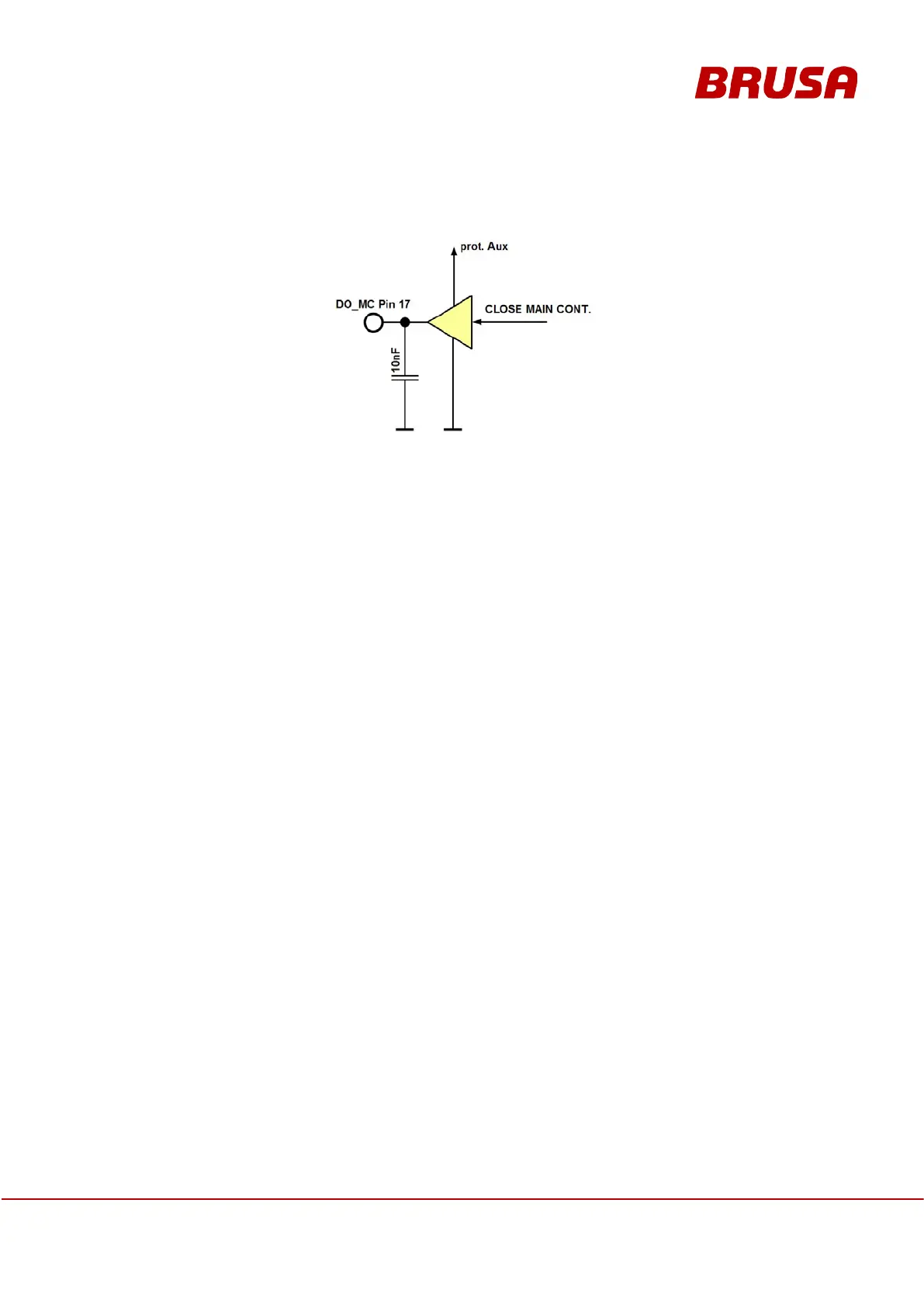

Internal wiring
 Pin 17 DO_MC is a digital output switching between signal ground GND and wiring system Plus AUX
and
designed for a peak current of 4 A for 120 ms and 200 mA continuous current.
 This way, two main contactors between the HV battery and the BDC546 can be directly controller.
