Brusa BDC546 - Technical Properties; BDC546 Block Diagram

23
Technical data
and start-up
BDC546
6.2 Technical properties
 Half bridge converter with free-wheeling diode from the lowside to the highside
 Bi-directional function
 Common minus for highside and lowside
 Galvanic isolation between control circuit and HV circuit
 Full suitability for automotive applications
 High power density (6.4 kW/kg)
 Low ripple current due to high clock frequency
 Vibration-resistant construction for mobile usage
 High efficiency (up to 98.9 %)
 CAN interface integrated by default
 Tested according to ECE directives / Certified according to E13
 Interlock function evaluation
 FGPA implemented, highly dynamic control circuit
 Patented Liquid Pin© cooling system
 SoftSwing® topology for minimum switching loss at above average EMC properties

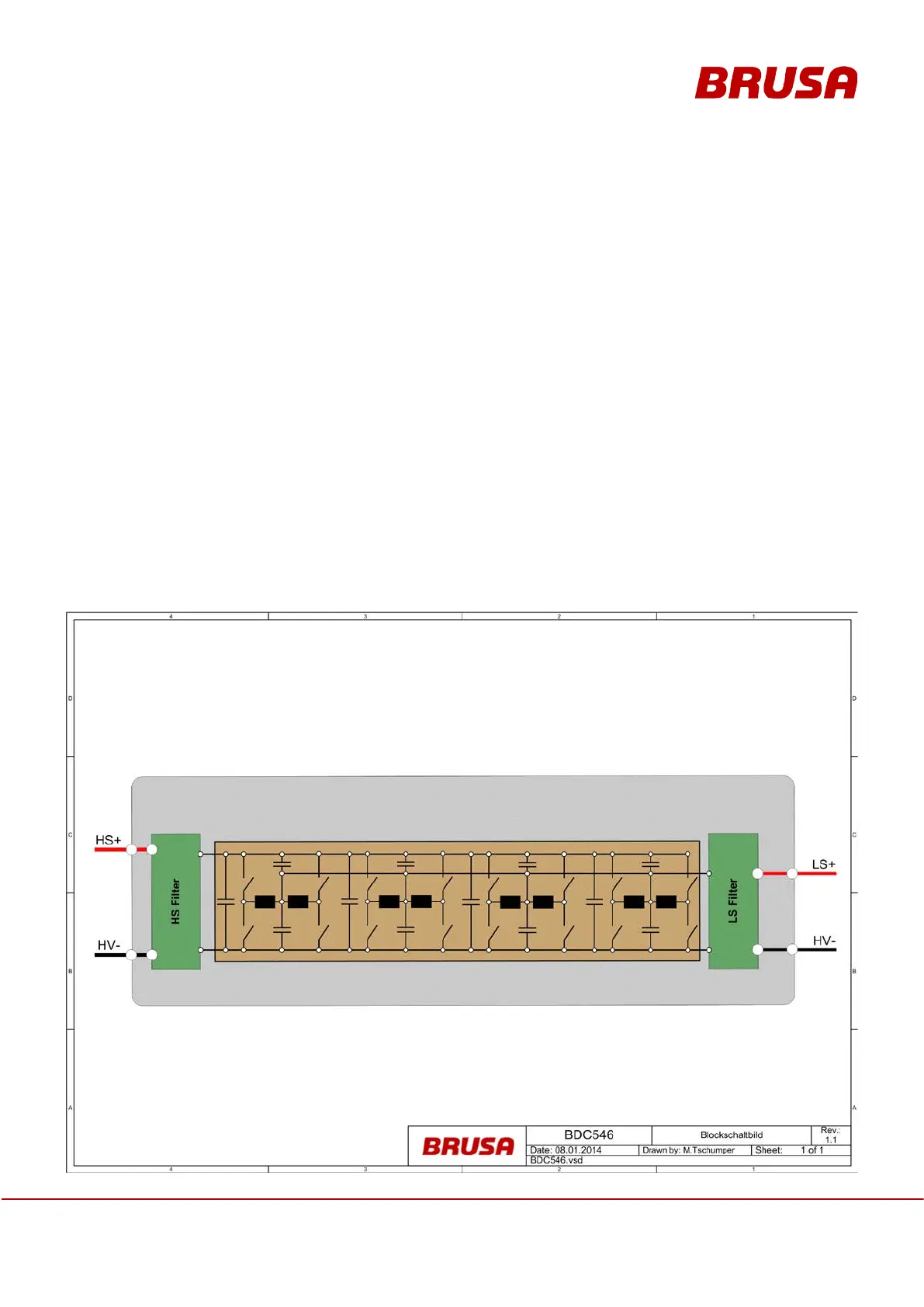

6.3 BDC546 block diagram
