and start-up
7.3 Highside and lowside power connections
Danger of death!
Before starting the installation, ensure that the device and power cables are de-energised.
The service cap may only be opened if the device has been de-energised.
Ensure proper connection of the highside and lowside!
Observe the polarity!
Before crimping the cable lugs to the power cables, the cable fittings have to be guided over the
power cables. Do not install the cable fittings at the device housing yet

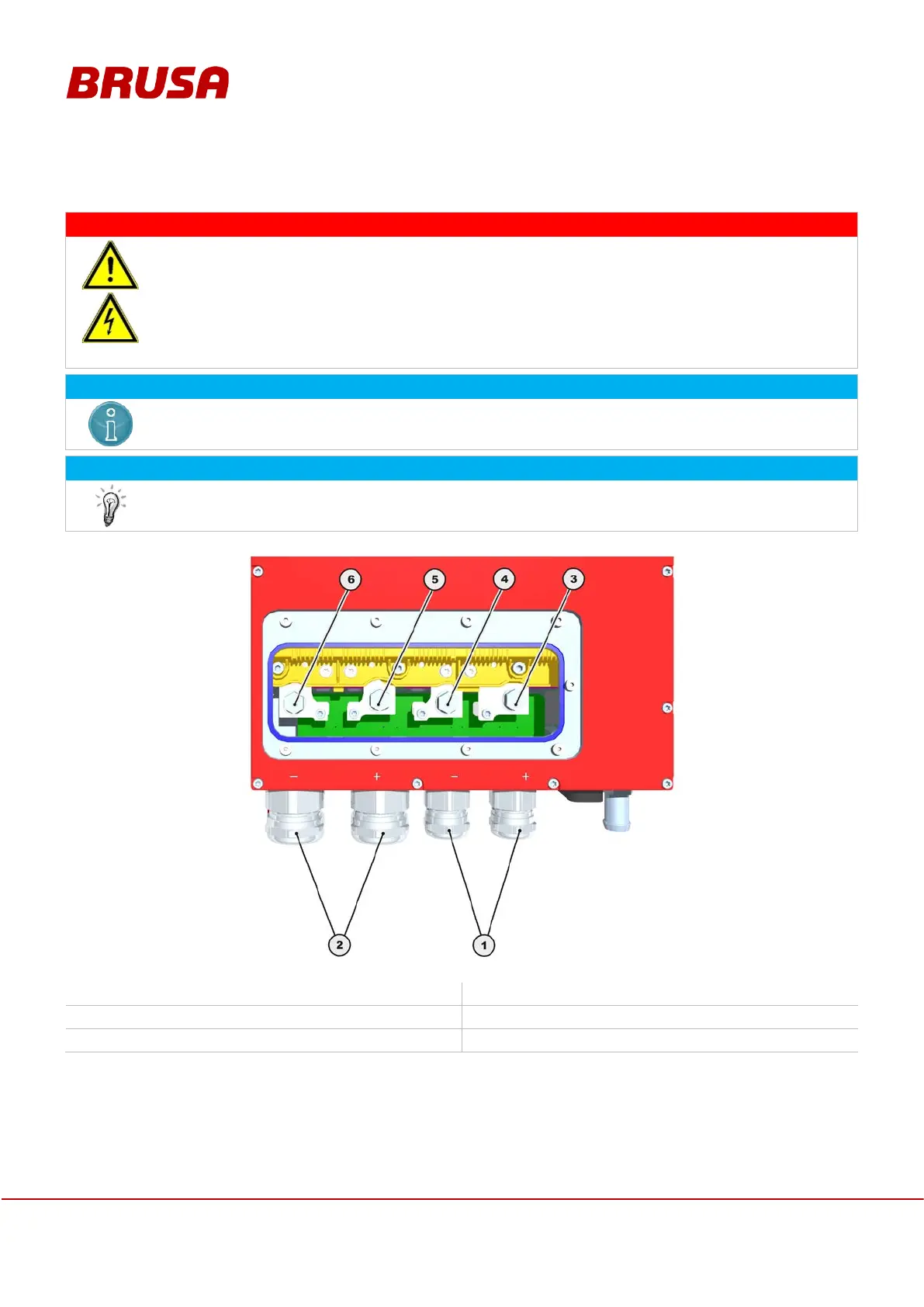

1. Highside cable fittings 2. Lowside cable fittings
3. Highside plus screw 4. Highside minus screw
5. Lowside plus screw 6. Lowside minus screw
