7.2 Earthing / grounding screw (equipotential bonding)
WARNING
Sparking!
Fire hazard!
Ensure that the grounding circuit is connected correctly!
A loose grounding circuit can lead to sparking and subsequent fires!

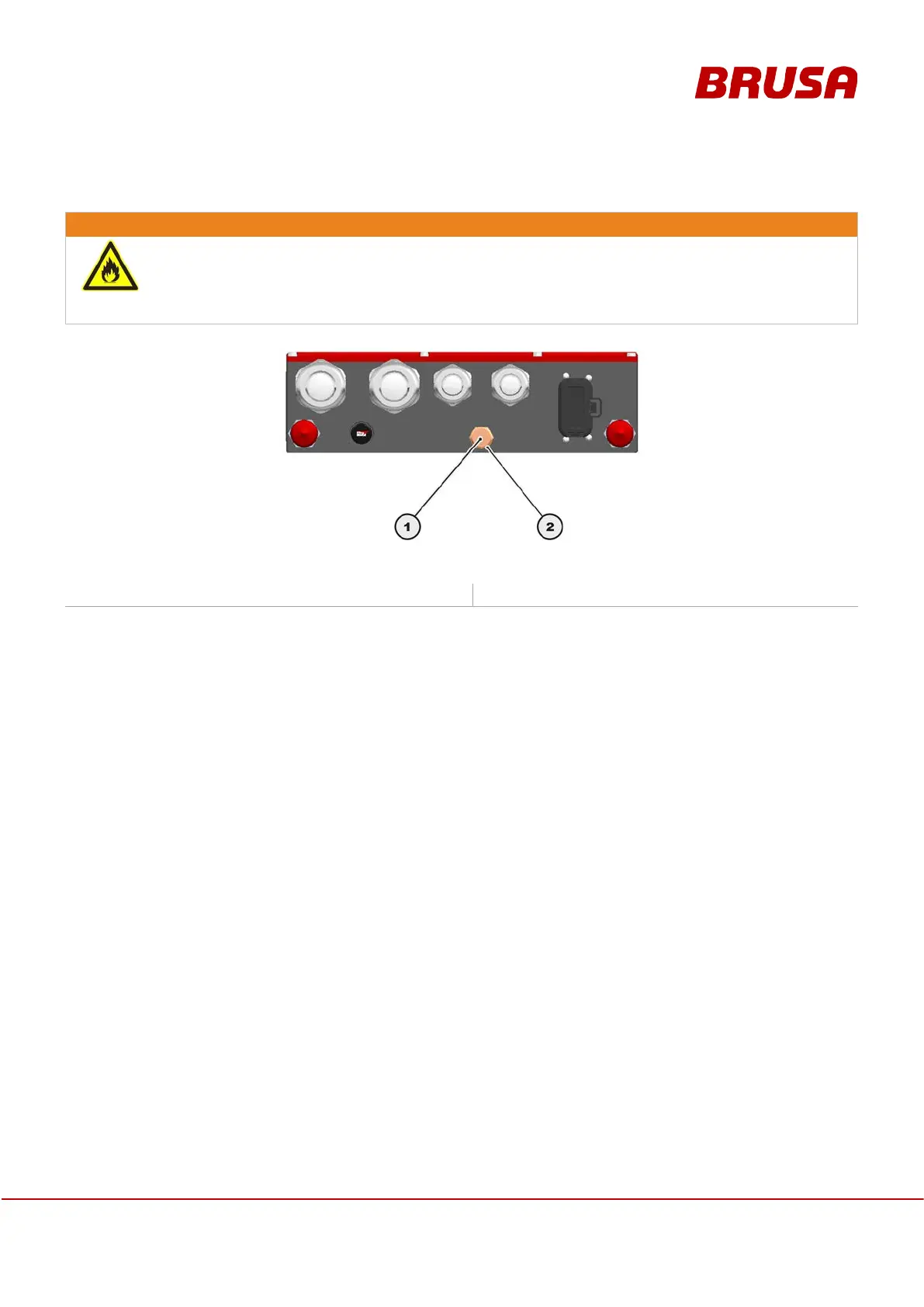

1. M10 x 16mm grounding screw
2. M10 washer
 The grounding screw (1) must be connected with the ground of the vehicle and/or test bench.
 A washer (2) is to be positioned between the grounding screw (1) and the cable lug.
 Grounding screw (1) torque = 28 Nm
