T104 Series Indicators EN-11

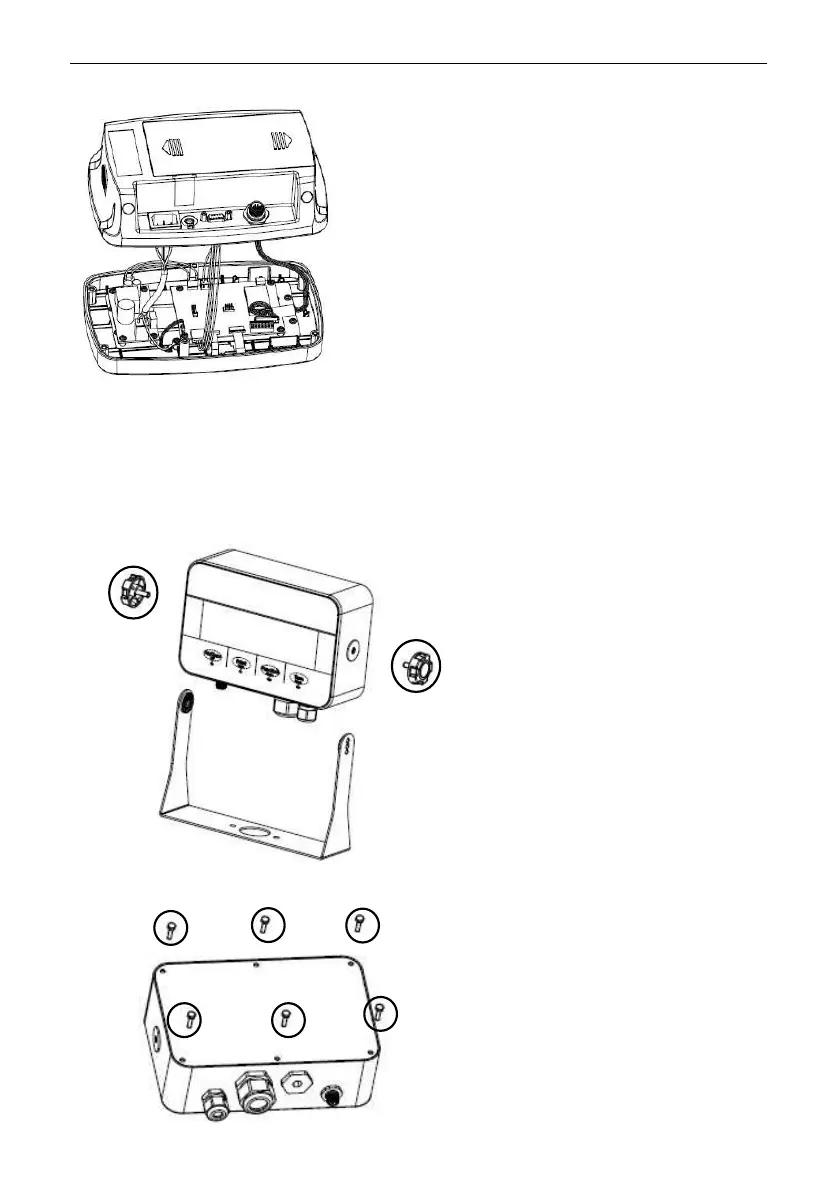

6. Open the rear housing.
7. Close the rear housing, retighten the screws and re-install the lead-acid battery after finishing internal
connections
Note: The screws should be tightened to 1 N•m (8-9 in-lb) torque.
2.3.1.2 T104S
1. Turn the two knobs (circled) on each side of the indicator to disassemble the bracket.
2. Remove the six hex head bolts from the rear housing of the indicator.
