EN-30 T104 Series Indicators
4.6 Communication
Enter this menu to define external communication methods and to set printing parameters. Data may be output
to either a printer or PC. Factory default settings are shown in bold.
4.6.1
RS232 Menu
Enter this menu to define communication parameters.

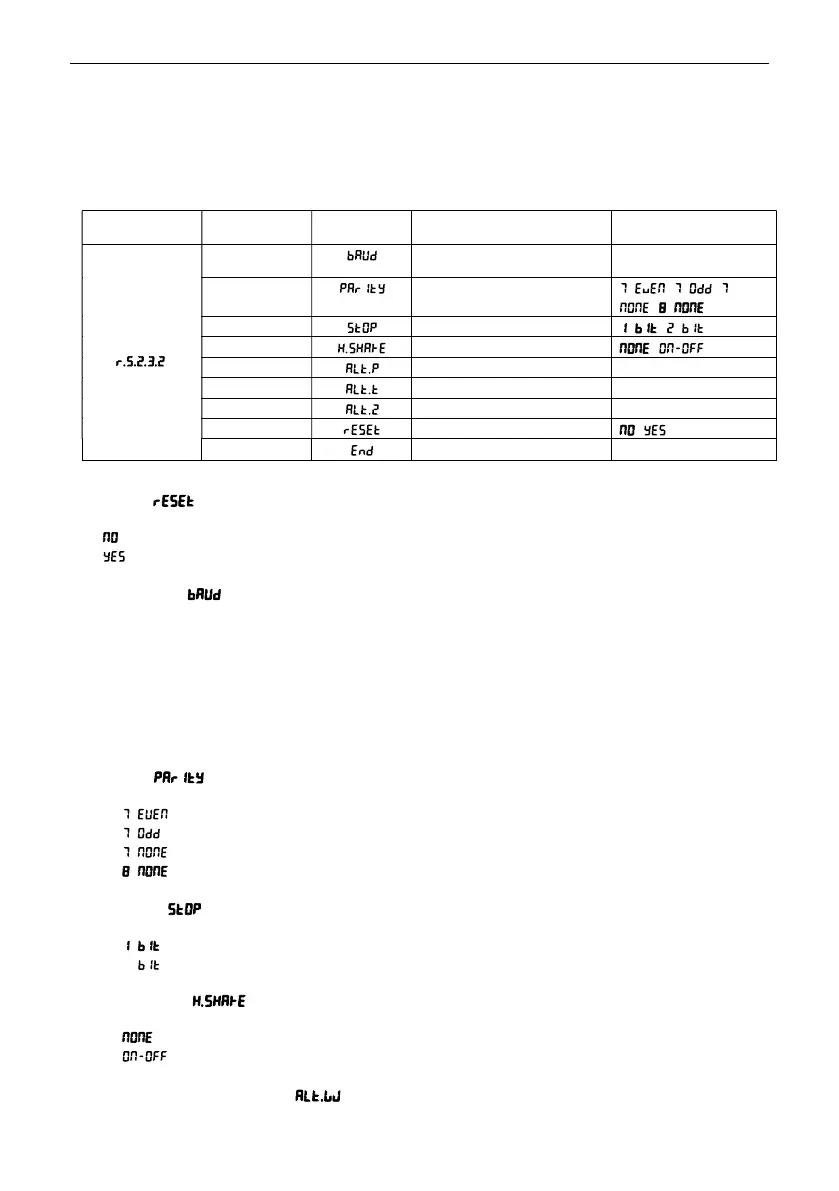

Menu Sub-Menu
Sub-Menu
(in segment)
Options Options (in segment)
RS232
( )
Baud Rate
300, 600, 1200, 2400, 4800,
9600, 19200, 38400, 57600
/
Parity
7 Even, 7 Odd, 7 None, 8
None
, ,
,
Stop Bit
1 bit, 2 bit
,
Handshake
None, Xon/Xoff
,
Alt Print CMD
'A' ~ 'Z', P
/
Alt Tare CMD
'A' ~ 'Z', T
/
Alt Zero CMD
'A' ~ 'Z', Z
/
Reset
no, yes
,
End
/
/
Note: / refers to not applicable in the table above.
Reset
[ ]
Reset the RS232 menu to factory defaults.
= do not reset.
= reset
Baud Rate
[ ]
Set the baud rate (bits per second).
300 = 300 bps
600 = 600 bps
1200 = 1200 bps
2400 = 2400 bps
4800 = 4800 bps
9600 = 9600 bps
19200 = 19200 bps
38400 = 38400 bps
57600 = 57600 bps
Parity
[ ]
Set the data bits and parity.
= 7 data bits, even parity
= 7 data bits, odd parity
= 7 data bits, no parity
= 8 data bits, no parity
Stop bit
[ ]
Set the number of stop bits.
= 1 stop bits
2 = 2 stop bits
Handshake
[
]
Set the flow control method. Hardware handshaking is only available for COM1 menu.
= no handshaking
= XON/XOFF software handshaking
Alternate Print command
[ ]
Set the alternate command character for Print.
