T104 Series Indicators EN-15
2.4 Mounting Bracket
Attach the bracket to a wall or table using fasteners (not supplied) that are appropriate for the type of mounting
surface. The bracket will accommodate up to 6 mm (1/4”) diameter screws. Locate the mounting holes as
shown in Figure 2-4 and 2-5.

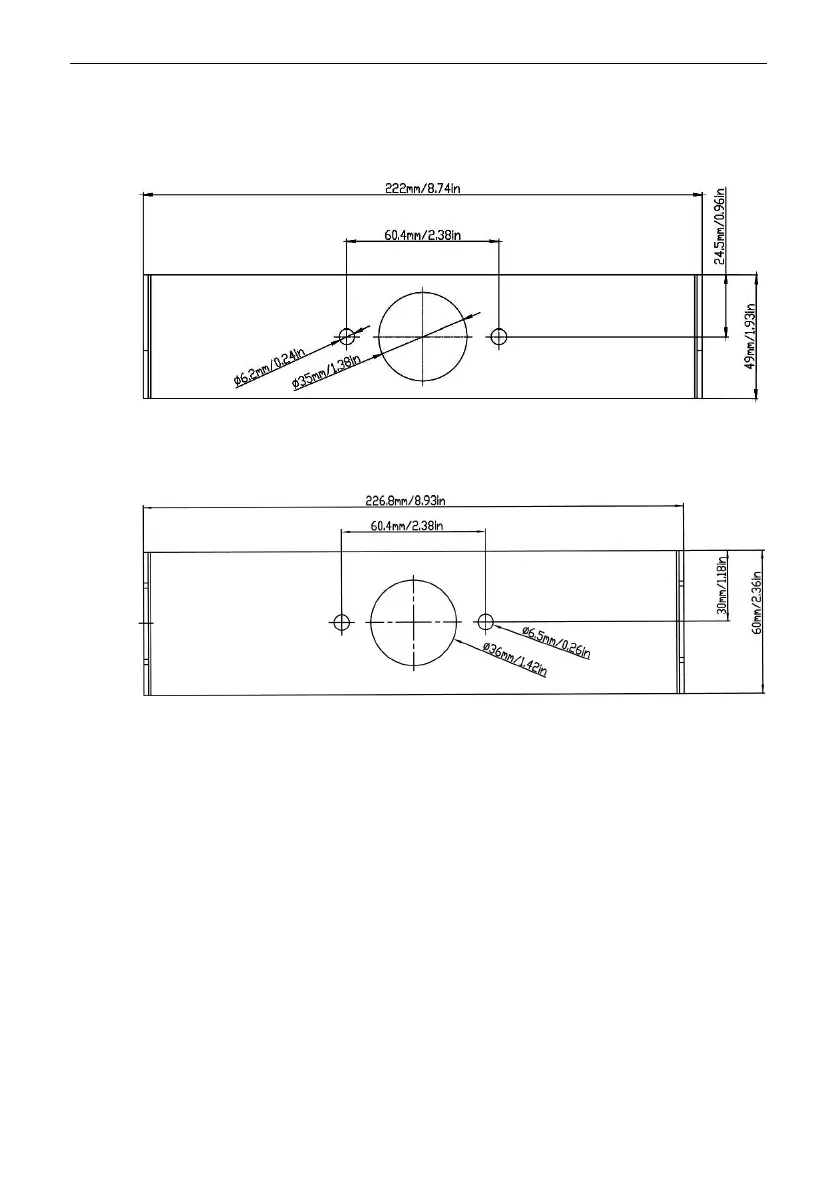

Figure 2-4 T104P Mounting Bracket Dimensions
Figure 2-5 T104S Mounting Bracket Dimensions
