5 | Installation BÜCHI Labortechnik AG
30/88 Operation Manual FatExtractor E-500

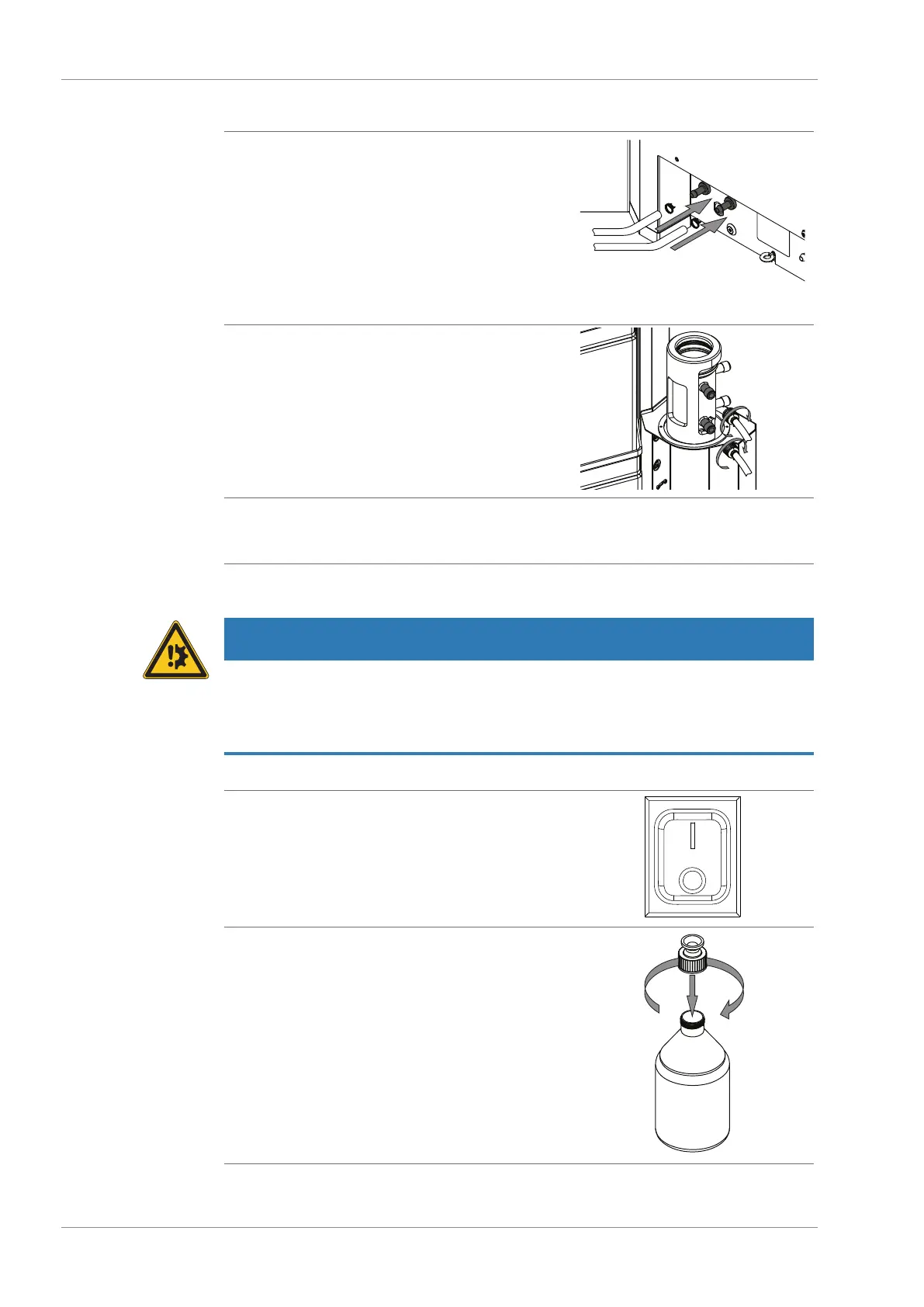

5.7 Connecting the coolant tubes to the condenser tank bottle
Precondition:
R Make sure that the instrument is not con-
nected to the power supply.
u Install the inlet tube onto the connection
marked CW TANK OUT.
u Attach the inlet tube in place with a hose clip.
u Install the drain tube onto the connection
marked CW TANK IN.
u Attach the drain tube in place with a hose clip.
u Attach the inlet tube onto the connection
marked CW IN .
u Attach the drain tube onto the connection
marked CW OUT.
u Make sure that the solvent collector circuit is
complete. See Chapter14.1 "Schematics",
page81
5.8 Preparing the tank bottle
NOTICE
Risk of broken parts by using tools
Using tools for preparing the instrument can break parts.
u Tighten all parts with your hands.
u Switch the On/Off master switch to Off.
u Put the bottle cap on the bottle.
