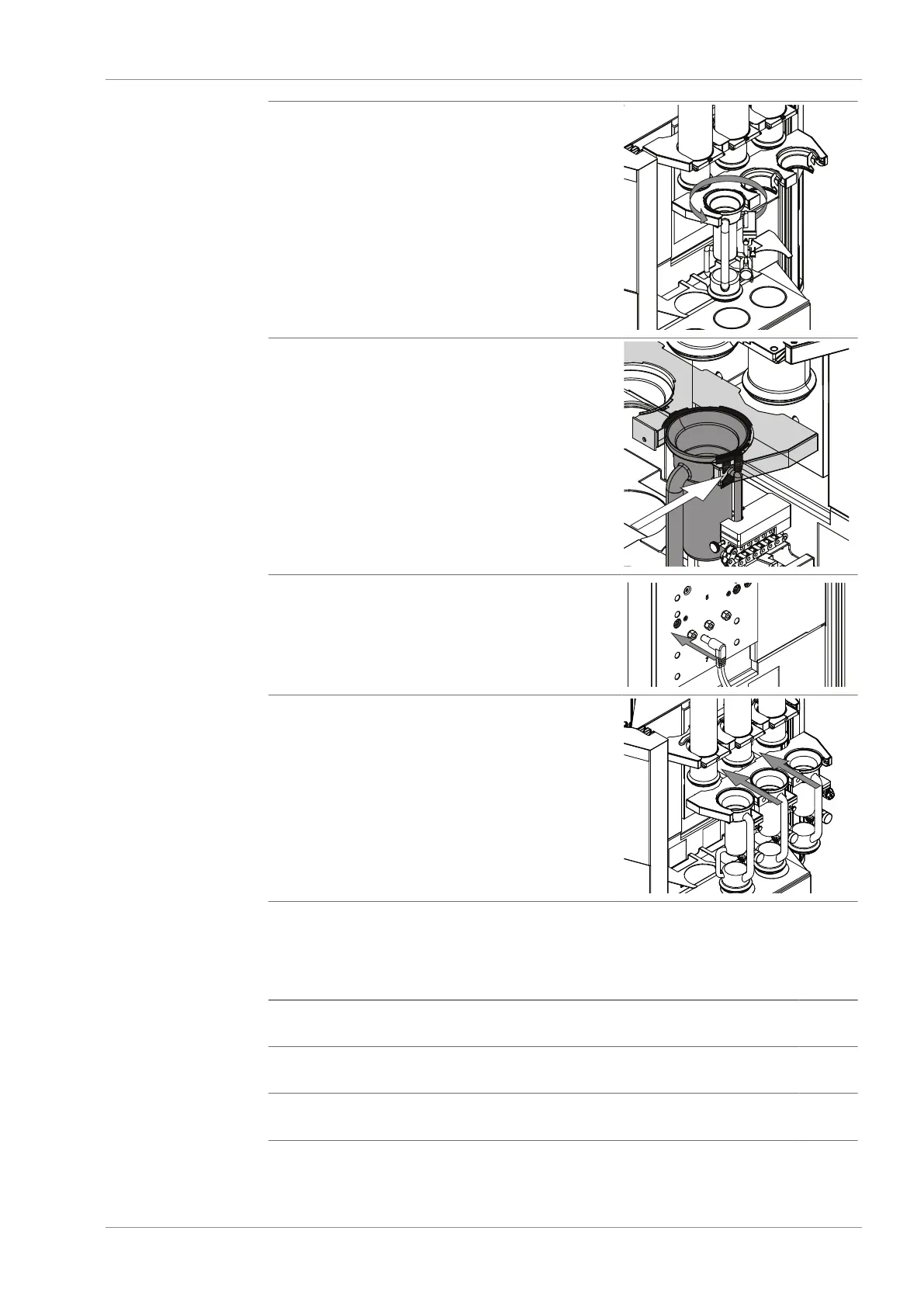

u Turn the extraction glass chamber 45° coun-
terclockwise.
u Make sure that the extraction glass chamber
locks at the hook.
u Connect the valve with the sensor plug on the
installation board.
u Push the chamber rack in the instrument.
5.10 Preparing the instrument for Hot Extraction
5.10.1 Installations for Hot Extraction
u Prepare the condenser. See Chapter5.13 "Preparing the condenser",
page36
u Install the protection shields. See Chapter5.12.2 "Installing one protec-
tion shield (Hot and Economic Continuous Extraction only)", page36
u Select the Hot Extraction method on the interface. See Chapter5.14
"Selecting a configuration", page39
