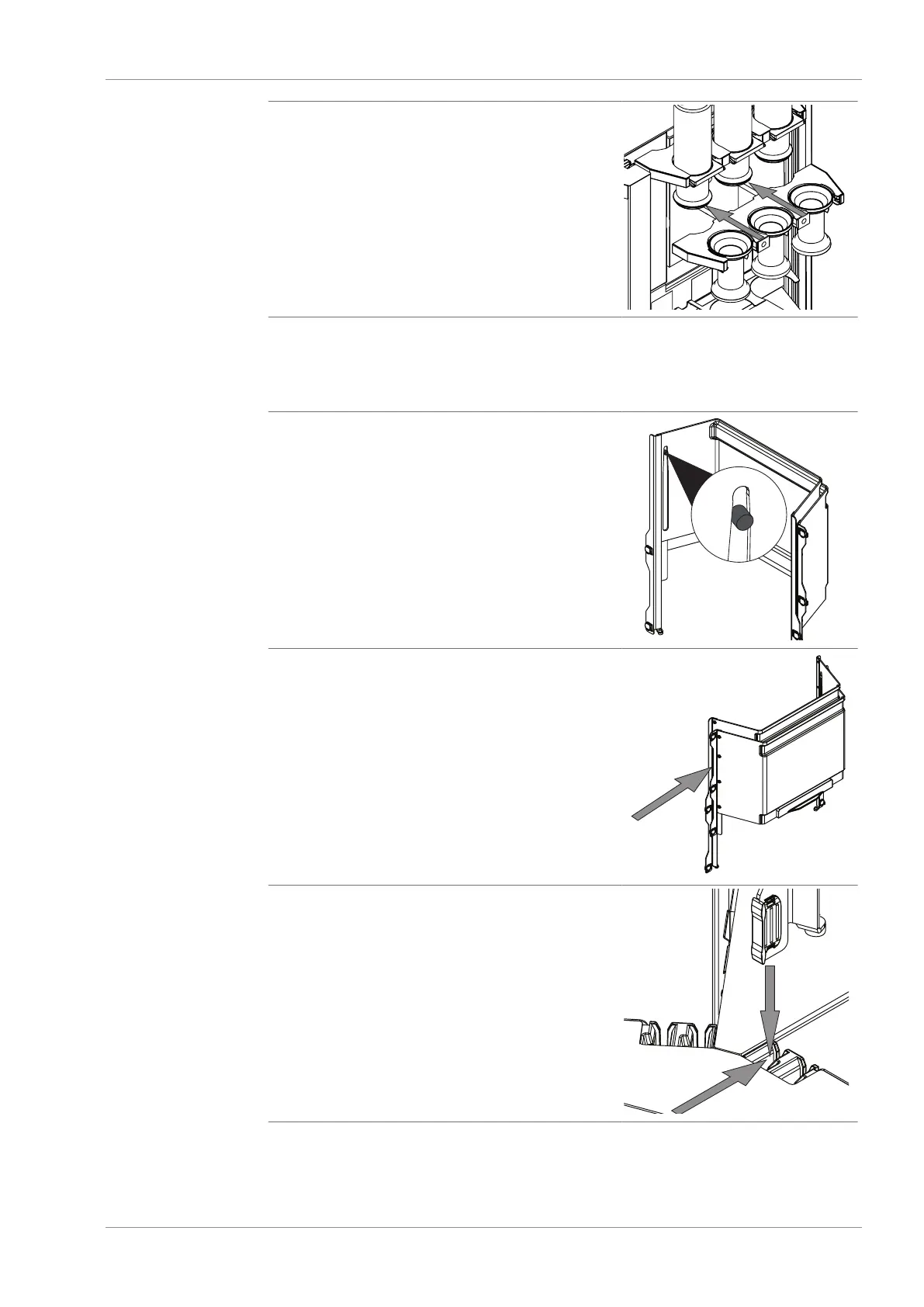

u Push the chamber rack in the instrument.
5.12 Installing the protection shields
5.12.1 Installing two protection shields (Soxhlet only)
u Make sure, that both protections shields fit to-
gether.
u Hold both protection shields on both sides at
the point indicated.
u Put the rear protection shield on both sides
into the rear slot at the same time.
