BÜCHI Labortechnik AG Operating the interface pro | 7
Operation Manual FatExtractor E-500 49/88

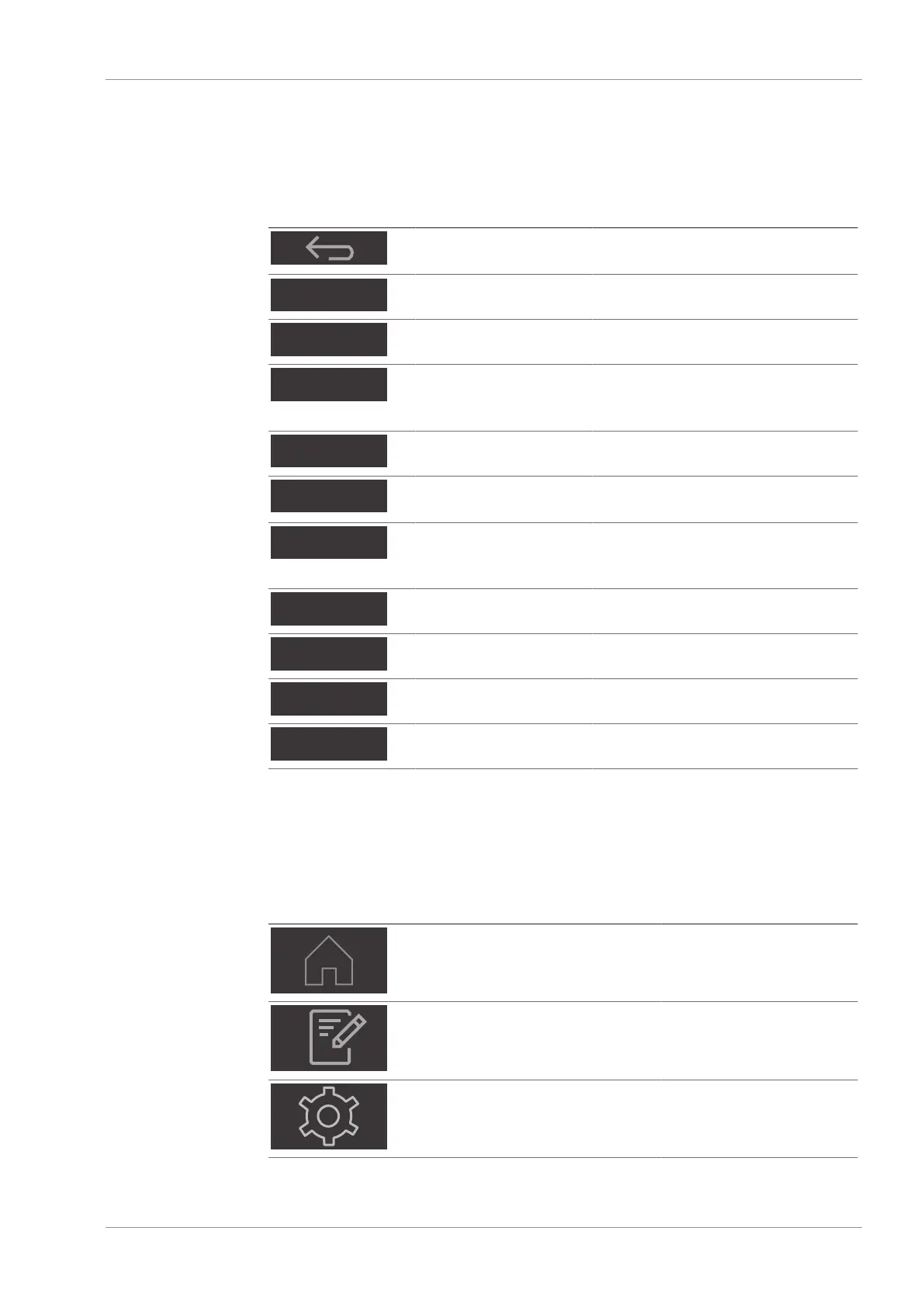

7.2 Function bar
The function bar shows available functions according to the current operation.
The functions on the function bar are executed by tapping the relevant function but-
tons.
Symbol Description Meaning
[Back] The display reverts to the previous
view.
O K
[Confirm] Confirms an entry.
S AV E
[Save] Saves the setting.
M E N U
[Menu] Allows selection of a menu from the
menu bar using the navigation con-
trol.
S TA RT
[Start] Starts the extraction process.
STOP
[Stop] Aborts extraction on all extraction
positions.
QR Code
[QR Code] The display shows a QR Code which
contains the data of all extraction pa-
rameters.
U P
[Up] The lift moves up.
D O W N
[Down] The lift moves down.
E S C
[Escape] Cancels the actual entry.
C O P Y
[Copy] Copies the selected method.
7.3 Menu bar
The menus are represented by symbols on the menu bar. Navigation through the
menus is by input controls.
The following menus are available:
Menu symbol Meaning Submenu/Actions
[Home] menu  Process control param-
eters
[Method] menu  Editing and saving ex-
traction methods
[Configuration] menu  Change settings
 Service menu
 System information
