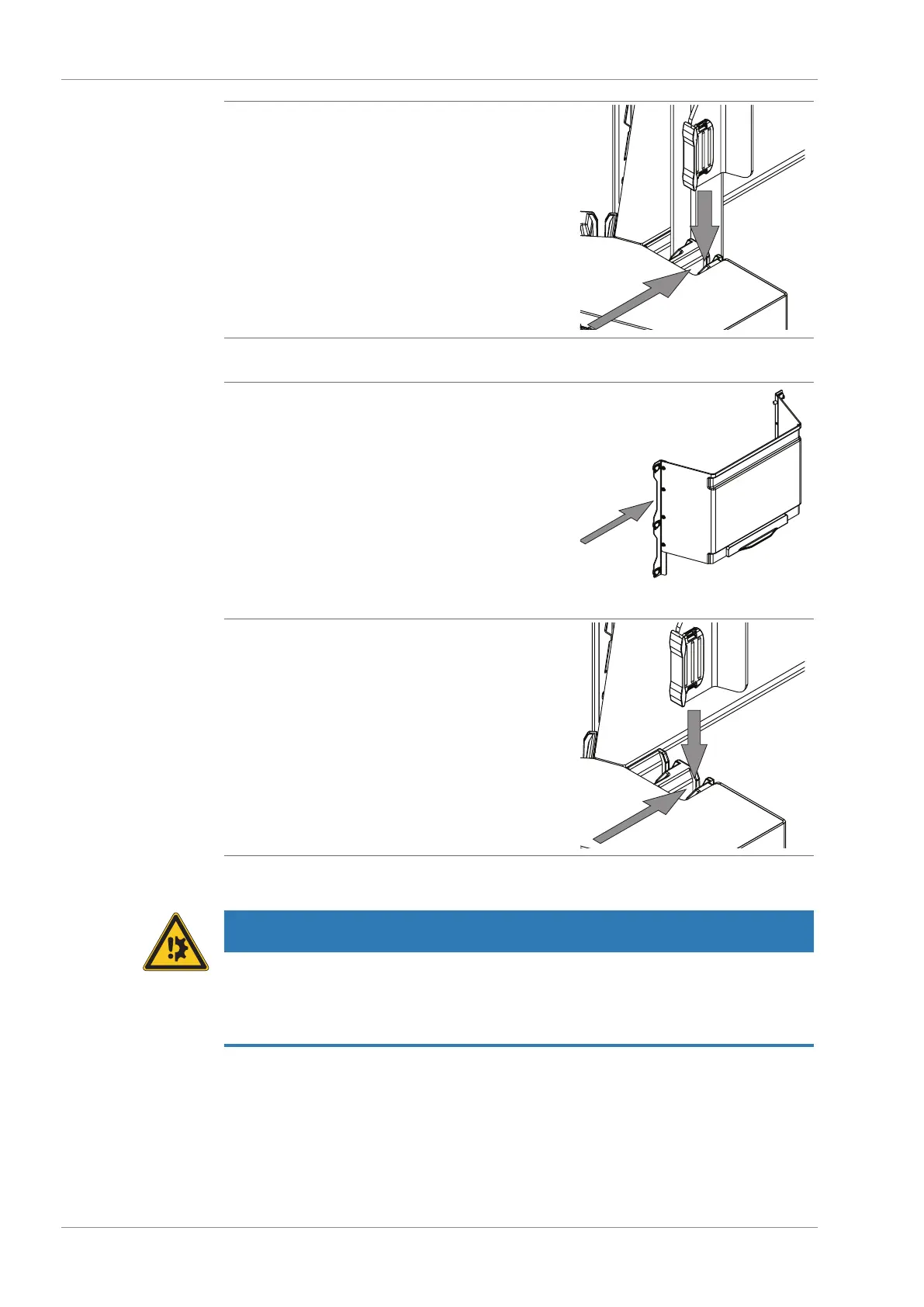

u Put the front protection shield on both sides
into the front slot at the same time.
5.12.2 Installing one protection shield (Hot and Economic Continuous Extraction only)
u Hold the protection shield on both sides at the
point indicated.
NOTICE!An incorrectly installed protection
shield causes an error message on the inter-
face.
u Put the protection shield on both sides into the
front slot at the same time.
5.13 Preparing the condenser
NOTICE
Risk of broken parts by using tools
Using tools for preparing the instrument can break parts.
u Tighten all parts with your hands.
